BLUE REFRIGERATION DCL Solid Core Filter Drier

BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-1
BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-2
BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-3
BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-4
BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-5
BLUE REFRIGERATION DCL Solid Core Filter Drier thumbnail-6
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-1
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-2
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-3
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-4
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-5
BLUE REFRIGERATION DCL Solid Core Filter Drier photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BLUE
Model Number:
BLR/DCL-032
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BLUE
Model Number BLR/DCL-032
Type Filter Drier
Application Refrigeration Parts
Certification UL

BLUE REFRIGERATION DCL Solid Core Filter Drier



GENERAL DESCRIPTION



BLR-DML driers with a 100% Molecular Sieve solid core.

BLR/DCL driers with a 80% Molecular Sieve with 20% activated alumina.



FEATURES

  • Corrosion resistant epoxy powder paint finish,Salty test up to 400 hour
  • Allows installation with any orientation provided the arrow is in the fow direction. High moisture and acid removal capacity
  • 25 µm (0.001 in.) S.S.  flter provides high retention  with minimal pressure drop. Suitable for R410A
  • Available in sizes from 3 to 75 cubic inches.
  • Thermally stable up to 120 °C (250 °F)

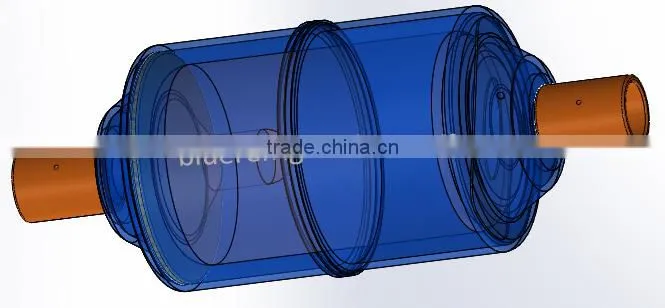

 DRAWING&PICTURE



BLUE REFRIGERATION DCL Solid Core Filter Drier

      BLUE REFRIGERATION DCL Solid Core Filter DrierBLUE REFRIGERATION DCL Solid Core Filter DrierBLUE REFRIGERATION DCL Solid Core Filter DrierBLUE REFRIGERATION DCL Solid Core Filter Drier





TECHNICALDATA





 Model Connection Liquid Capacity in KW                           Dimension (mm) WT(lbs)
SAE ODF (in) (mm) R134A R404A
R507		 R22
R407C
R410A		 A A1 A2 B L D SAE ODF
SAE ODF SAE ODF
BLR/DC(M)L-032 BLR/DC(M)L-032S 1/4 6 7 5 7 66.04 16 50 - 82.042 109.98 98.044 42.926 0.38 0.34
BLR/DC(M)L-033 BLR/DC(M)L-033S 3/8 10 17 13 19 - 85.344 122.94 103.886 0.45 0.36
BLR/DC(M)L-052 BLR/DC(M)L-052S 1/4 6 7 5 8 74.93 24.38 50.5 - 90.932 125.98 106.934 54.102 0.54 0.49
BLR/DC(M)L-053 BLR/DC(M)L-053S 3/8 10 18 14 19 - 93.98 132.08 113.03 0.61 0.5
- BLR/DC(M)L-054 1/2 12 19 16 20 - 96.012 - 117.856 - 0.52
BLR/DC(M)L-082 BLR/DC(M)L-082S 1/4 6 7 5 8 101.1 50.55 50.5 - 117.09 145.03 133.096 53.34 0.69 0.64
BLR/DC(M)L-083 BLR/DC(M)L-083S 3/8 10 19 14 21 - 119.89 157.99 138.938 0.76 0.65
BLR/DC(M)L-084 BLR/DC(M)L-084S 1/2 12 26 20 29 - 121.92 166.12 143.002 0.84 0.71
BLR/DC(M)L-162 BLR/DC(M)L-162S 1/4 6 7 5 8 110.2 55.12 55.1 - 125.98 153.92 141.986 76.2 1.43 1.36
BLR/DC(M)L-163 BLR/DC(M)L-163S 3/8 10 22 16 24 - 129.03 166.88 148.082 1.47 1.38
BLR/DC(M)L-164 BLR/DC(M)L-164S 1/2 12 30 22 33 - 131.06 175.01 151.892 1.52 1.41
BLR/DC(M)L-165 BLR/DC(M)L-165S 5/8 16 43 33 47 - 134.11 183.9 157.988 1.56 1.42
BLR/DC(M)L-166 BLR/DC(M)L-166S 3/4 19 44 31 48 - 139.95 182.12 169.926 1.61 1.45
- BLR/DC(M)L-167S 7/8 22 45 32 49 - 135.89 - 171.958 - 1.47
BLR/DC(M)L-303 BLR/DC(M)L-303S 3/8 10 21 15 23 185.9 - - - 204.98 243.08 224.028 75.946 2.59 2.86
BLR/DC(M)L-304 BLR/DC(M)L-304S 1/2 12 31 22 34 - 207.01 250.95 228.092 2.96 2.91
BLR/DC(M)L-305 BLR/DC(M)L-305S 5/8 16 45 33 49 - 210.06 260.1 233.934 3.26 2.92
BLR/DC(M)L-306 BLR/DC(M)L-306S 3/4 19 62 45 68 - 215.9 258.06 246.126 3.33 2.93
- BLR/DC(M)L-307S 7/8 22 62 45 68 - 212.09 - 247.904 - 2.96
- BLR/DC(M)L-309S 1-1/8 28 63 46 69 - 207.01 - 248.92 - 2.98
BLR/DC(M)L-413 - 3/8 10 31 22 34 186.9 - - 244.09 - 88.9 3.95 -
BLR/DC(M)L-414 BLR/DC(M)L-414S 1/2 12 32 23 35 - 208.03 251.97 229.108 4.04 3.92
BLR/DC(M)L-415 BLR/DC(M)L-415S 5/8 16 53 37 58 - 211.07 261.11 234.95 4.06 3.94
BLR/DC(M)L-417 BLR/DC(M)L-417S 7/8 22 91 65 100 - 213.11 - 248.92 - 4.01
- BLR/DC(M)L-419S 1-1/8 28 92 66 101 - 208.03 - 249.936 - 4.03
- BLR/DC(M)L-604S 1/2 12 44 32 48 337.1 - 357.89 - 378.968 75.946 - 4.94
- BLR/DC(M)L-607S 7/8 22 75 54 82 - 362.97 - 373.634 - 4.98
- BLR/DC(M)L-609S 1-1/8 28 87 64 95 - 357.89 - 374.65 - 5.03
- BLR/DC(M)L-757S 7/8 22 82 60 90 338.1 - 363.98 - 400.05 88.9 - 6.98
- BLR/DC(M)L-759S 1-1/8 28 94 68 102 - 358.9   401.066 - 7



Model Selection
 Media BLR/DCL BLR/DML

Refrigerant 		HFC(R134a,R404A,R407C,R410A etc.) Yes  Yes
HCFC(R22,R502 etc.) Yes Yes

Oil 		Mineral or AB Yes Yes
POE or PAG POE or PAG, Pure Yes Yes
POE or PAG
POE or PAG, with additives 		No  Yes
