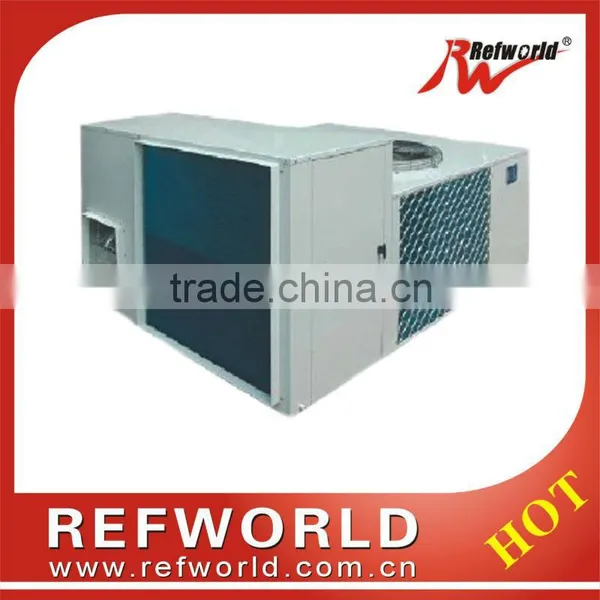

Packaged Rooftop Air Conditioner

Packaged Rooftop Air Conditioner thumbnail-1
Packaged Rooftop Air Conditioner photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
REFWORLD
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name REFWORLD

Specifications

Suitable to shopping mall,store, building, cinema.factory,etc.

About us







About product





All air system, which saved the matched water system and terminal equipments.

High static pressure air supply.

Fresh air enhance the indoor air quality.

Evaporator cools the air directly,high performance.

International famous brand of components and parts.

Whisper quiet running,high efficiency & reliablity.

Suitable to shopping mall,store, building, cinema.factory,etc.





Model Cooling
Capacity (kw)		 Heating
Capacity(kw)		 Rated
Airflow
(m3/h)		 External
Static
Pressure
(Pa)		 Input
Power
(kw)		 Niose
Db(A)		 Charge
of R410/
R407C
(kg)		 Dimension Weight
(kg)
Length
(mm)		 Width
(mm)		 Height
(mm)
RW-PHS8 7.8 7.6 1700 150 3.3 66 2.8 1104 954 780 198
RW-PHS10 9.1 9.4 2000 150 4.3 66 3.2 1104 954 780 198
RW-PHS12 11.5 12.1 2500 160 5.1 66 3.6 1160 1050 845 210
RW-PHS15 14.3 14.2 3060 165 5.6 68 4.4 1360 1190 865 230
RW-PHS18 17.1 18.0 3600 150 6.5 68 4.6 1360 1190 865 238
RW-PHS20 19.9 19.5 4000 200 7.9 68 5.8 1650 1170 865 360
RW-PHS25 24.2 24.5 5000 150 10.1 70 7.2 1650 1560 860 428
RW-PHS30 30.6 30.6 6500 200 12.1 70 7.4 1800 1800 1010 500
RW-PHS35 34.8 32.4 7200 180 13 70 7.6 1800 1800 1010 528
RW-PH40 39.7 36.1 7920 270 14.1 70 8.8 2100 1850 1305 622
RW-PH45 44.8 44.2 9720 270 17.1 72 9.6 2300 1850 1305 632
RW-PH50 48.6 44.2 10080 270 18.4 72 14.4 2500 1850 1450 780
RW-PH56 55.6 57.4 10800 270 21.9 72 14.8 2500 1850 1450 800
RW-PH66 65.5 60.7 12600 270 25.3 72 15.2 2550 2100 1580 850
RW-PH73 72.8 66.6 14040 270 28.6 72 15.6 2600 2130 1580 915
RW-PH80 80.4 80.7 15480 270 30.6 74 19.6 2600 2130 1580 970
RW-PH90 88.5 85.0 17280 270 34.2 74 21.6 3100 2130 1880 1140
RW-PH100 102.2 98.5 19800 270 40.1 74 22.4 4000 2050 1950 1700
RW-PH120 117.6 116.2 12300 270 4608 74 29.2 4100 2050 2050 1860
RW-PH140 137.8 132.0 27000 270 55.3 76 30.0 4200 2050 2050 2120
RW-PH160 156.2 152.5 30600 270 63.5 76 37.6 4200 2050 2050 2120
RW-PH180 176.8 169.4 34200 270 73.3 78 39.2 4200 2150 2350 2360
RW-PH200 201.8 196.2 37800 270 78.8 78 50.8 4200 2200 2350 2570





 NOTE:



1.Nominal condition for cooling:air inlet temp 27°C(DB)/19°C(WB),AMBIENT TEMP 35°C.

2.Nominal condition for heating:air inlet temp 20°C,ambient temp 7°C.

3.The performance of the cooling only unit is the same as the heat pump unit except heating performance.
