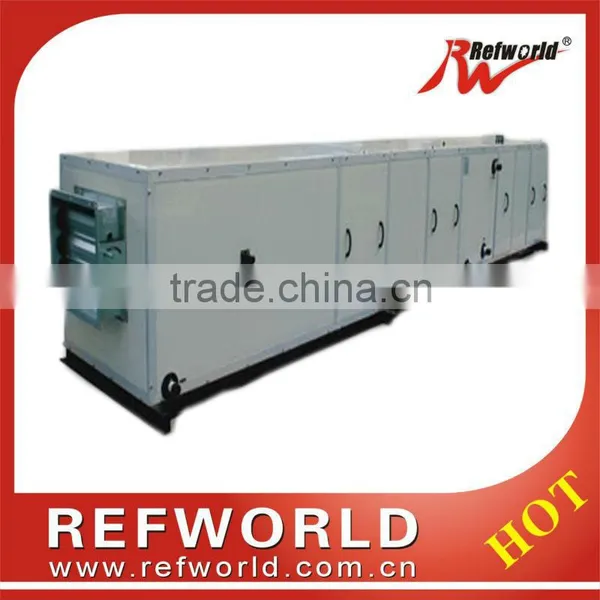

Central Station Air Handling Units

Central Station Air Handling Units thumbnail-1
Central Station Air Handling Units photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Air Handling Unit
Place of Origin:
Zhejiang, China
Brand Name:
refworld
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Air Handling Unit
Place of Origin Zhejiang, China
Brand Name refworld

Specifications

More than 10 function sections can be optional.

About us







About product



 Function section

 More than 10 function sections can be optional.



Modular design

Use international modular dimension as basic design,spare parts can be changeable.



Framework and panel

High quality,high intensity aluminum or high quality painted steel framework.Polyurethane double skin panel.



High efficiency heat exchanger

Made by assembly line of America OAK Company.High heat transfer efficiency.



Low noise fan

High efficiency low noise centrifugal fan.Foward of backward as optional.



Cold bridge

Thermal break access door with patent technology.





Air fiow rate





Unit model Air fiow rate m3/h
Coll face velocity m/s
Width
modular		 Height
modular		 2 2.25 2.5 2.75 2.85 3 3.5 4 4.5 5
9 6 2176 2448 2720 2992 3101 3264 3808 4353 4897 5441
12 6 3136 3528 3920 4313 4469 4705 5489 6273 7057 7841
9 9 3420 3847 4275 4702 4873 5130 5985 6840 7695 8550
12 9 4929 5545 6161 6777 7023 7393 8625 9857 11089 12322
15 9 6437 7242 8047 8851 9173 9656 11265 12875 14484 16093
12 12 7169 8065 8961 9857 10216 10753 12546 14338 16130 17922
15 12 9363 10534 11704 12875 13343 14045 16386 18727 21068 23409
18 12 11558 13003 14448 15892 16470 17337 20227 23116 26006 28895
21 12 13753 15472 17191 18910 19597 20629 24067 27505 30943 34381
24 15 20931 23547 26163 28780 29826 31396 36629 41861 47094 52327
19 19 19970 22467 24963 27459 28458 29956 34948 39941 44934 49926
21 19 22348 25141 27935 30728 31846 33522 39109 44696 50283 55870
24 19 25914 29153 32393 35632 36928 38871 45350 51828 58307 64785
27 19 29480 33165 36850 40535 42009 44220 51590 58961 66331 73701
22 22 28063 31571 35079 38587 39990 42094 49110 56126 63142 70157
24 22 30898 34760 38622 42484 44029 46346 54071 61795 69520 77244
27 22 35150 39543 43937 48331 50088 52724 61512 70299 79086 87874
30 22 39401 44327 49252 54177 56147 59102 68953 78803 88653 98504
25 25 36485 41045 45606 50166 51990 54727 63848 72969 82090 91211
27 25 39685 44646 49606 54567 56551 59527 69449 79370 89291 99212
30 25 44486 50046 55607 61168 63392 66728 77850 88971 100093 111214
33 25 49286 55447 61608 67768 70233 73929 86251 98572 110894 123215
36 25 54087 60848 67608 74369 77074 81130 94652 108174 121695 135217
36 28 63359 71279 79198 87118 90286 95038 110878 126718 142557 158397
39 28 68982 77605 86228 94851 98300 103474 120719 137965 155210 172456
45 30 82186 92460 102733 113006 117115 123279 143826 164373 184919 205466
48 30 87947 98940 109934 120927 125324 131920 153907 175894 197881 219867
45 33 91970 103467 114963 126459 131058 137956 160948 183941 206933 229926
48 33 98417 110719 123021 135323 140244 147625 172230 196834 221438 246042
45 35 91970 103467 114963 126459 131058 137956 160948 183941 206933 229926
48 35 104699 117786 130874 143961 149196 157048 183223 209398 235572 261747
51 35 111557 125501 139446 153391 158968 167335 195224 223114 251003 278892
54 35 118415 133217 148019 162820 168741 177622 207226 236830 266433 296037
57 36 129333 145499 161666 177833 184299 193999 226332 258665 290999 323332
60 36 136465 153523 170581 187639 194463 204698 238814 272930 307046 341163
