Automatic Tin Pails Can Making Machine/automatic Spot Welding Machine in China
US$ 50,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Metal Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi-automatic Beverage Tin Can Making/pail/food Can Welding MachineUS$ 30,000 - 40,000MOQ: 1 Set -
Automatic Rectangular Tin Can Making Machine/machine to Make Cans/beverage Can Making MachineUS$ 50,000 - 60,000MOQ: 1 Set
-
Semi-automatic Can Welding Machine/aerosol Can Making MachineUS$ 30,000 - 40,000MOQ: 1 Set
-
Semi-automatic Can Welding Machine /paint Canning Machines / Tin Can Making MachineUS$ 32,000 - 40,000MOQ: 1 Set
-
Semi-automatic Can Body Welding/biscuits Can Making MachineUS$ 30,000 - 40,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Usage
Metal Forming Machine
Place of Origin
Sichuan, China
Brand Name
Changtai
Model Number
FH18-65ZD
Voltage
380V
Power(W)
15KW
Dimension(L*W*H)
1750*1100*1800mm
Weight
1800kg
Certification
exclusive patented
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Tin can body welding machine1.High capacity
2.Precise performance
3.Can body making machine
4.Auto feeding, rolling
Automatic tin pails making machine/automatic spot welding machine/making machine in China
1.The main technical data of FH18-65ZD
| Linear rate of welding | 6-26m/min |
| Production capability | 40~100Cans/min |
| Applicable can diameter | Φ65~Φ180mm |
| Applicable can height | 60~280mm |
| Applicable material | Tinplate steel-based |
| Applicable material thickness | 0.2~0.35mm |
| Seam welding landing | 0.4mm 0.6mm |
| Seam point distance | 0.5-0.8mm |
| Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
| Cooling water | Temperature:15-20°CPressure:0.4~05Mpa Discharge:10L/min |
| Compressed air consumption | 600 L/min |
| Pressure of compressed air | 0.5Mpa-0.7Mpa |
| Power | 380V±5% 50HZ |
| Total power | 40KVA |
| Dimension | 1750×1100×1800mm |
| Weight | 1800Kg |

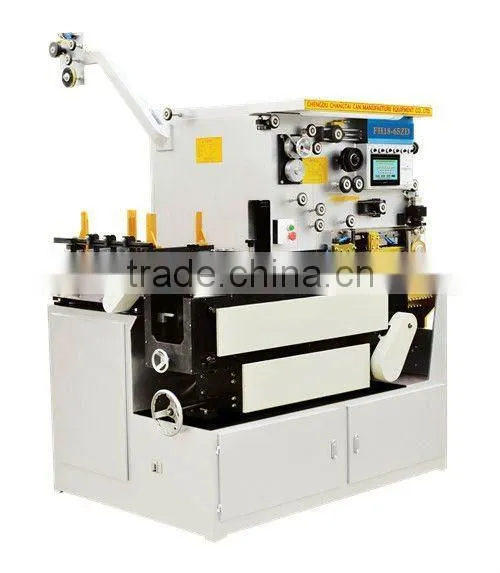

2.Latest product picture
***********************************************************************************
3.Our major component suppliers
1, PLC(Programmable Logic Contrller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
4.Technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
Conton fair:
Workshop:
Appliable tin cans:
Certificates:
