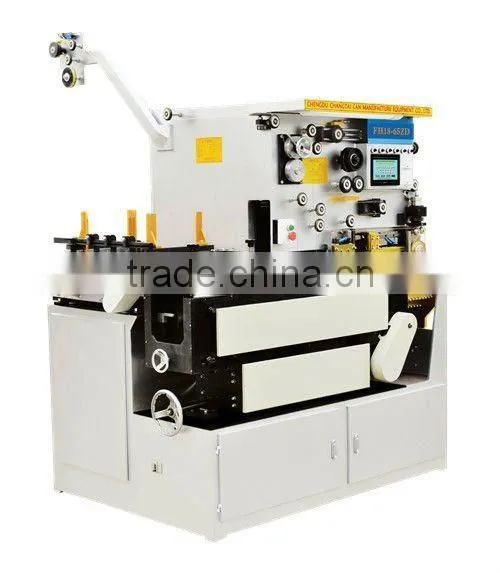

Automatic Rectangular Tin Can Making Machine/machine to Make Cans/beverage Can Making Machine
US$ 50,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Chemical, Other, Food, Beverage, Chemical, Machinery & Hardware
Packaging Type:
Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi-automatic Can Welding Machine/aerosol Can Making MachineUS$ 30,000 - 40,000MOQ: 1 Set -
Semi-automatic Can Welding Machine /paint Canning Machines / Tin Can Making MachineUS$ 32,000 - 40,000MOQ: 1 Set
-
Semi-automatic Can Body Welding/biscuits Can Making MachineUS$ 30,000 - 40,000MOQ: 1 Set
-
Semi-automatic Can Body Welding/production MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Semi-automatic Food Tinplate Can Body Resistance Welding MachineUS$ 28,000 - 35,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Chemical, Other, Food, Beverage, Chemical, Machinery & Hardware
Packaging Type
Cans
Packaging Material
Metal
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
40KW
Place of Origin
Sichuan, China
Brand Name
Changtai
Model Number
FH-18-65ZD
Weight
1800KG
Dimension(L*W*H)
1750*1100*1800MM
Certification
Exclusive Patented
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.High quality2.Excellent performance
3.Applicable can diameter:65~180mm
4.Applicable can height:60~280mm
Automatic quadrate/round tin can welding machine/ machine to make cans
1.Main technical data
| Linear rate of welding | 6-26m/min |
| Production capability | 40~100Cans/min |
| Applicable can diameter | Φ65~Φ180mm |
| Applicable can height | 60~280mm |
| Applicable material | Tinplate steel-based |
| Applicable material thickness | 0.2~0.35mm |
| Seam welding landing | 0.4mm 0.6mm |
| Seam point distance | 0.5-0.8mm |
| Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
| Cooling water | Temperature:15-20°CPressure:0.4~05Mpa Discharge:10L/min |
| Compressed air consumption | 600 L/min |
| Pressure of compressed air | 0.5Mpa-0.7Mpa |
| Power | 380V±5% 50HZ |
| Total power | 40KVA |
| Dimension | 1750×1100×1800mm |
| Weight | 1800Kg |
2.Latest pictures
******************************************************************************************************************

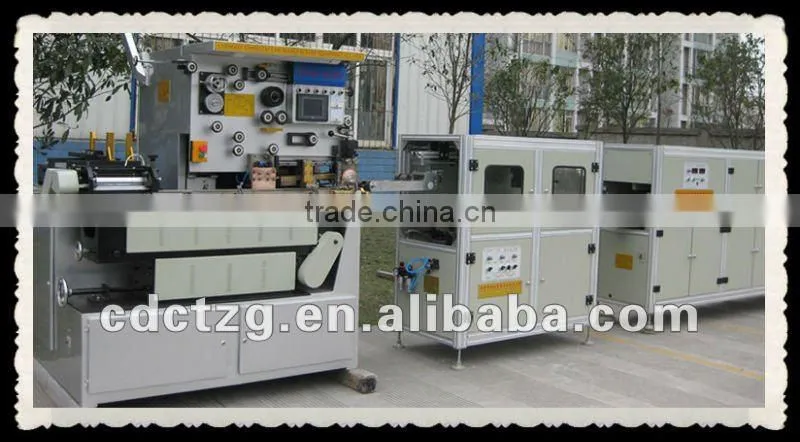

can making line
3.Our major component suppliers
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
4.Can making technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
5.Applicable types of products
aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.
