Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Automatic Rectangular Tin Can Making Machine/aerosol Can Making Machine

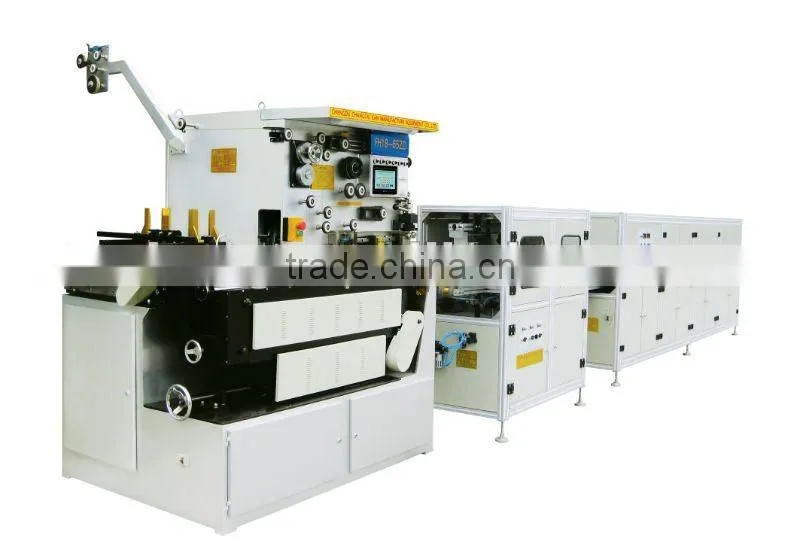

Automatic Rectangular Tin Can Making Machine/aerosol Can Making Machine

Automatic Rectangular Tin Can Making Machine/aerosol Can Making Machine thumbnail-1
Automatic Rectangular Tin Can Making Machine/aerosol Can Making Machine photo-1
US$ 50,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type:
Cartons
Contact Supplier Request Quote Chat Now
Chengdu Changtai Can Manufacture Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type Cartons
Packaging Material Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 18KW
Place of Origin Sichuan, China
Brand Name Changtai
Model Number FH18-65ZD
Weight 1800KG
Dimension(L*W*H) 1750*1100*1800MM
Certification Exclusive Patented
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Durable
2.High production capability
3.Rectangular tin can making machine
4.Auto feeding, rolling and adjusting

Automatic rectangular tin can making machine/aerosol can making machine



1.Main technical data

Mode  FH18-65ZD
Linear rate of welding  6-26m/min
Production capability  40~100Cans/min
Applicable can diameter       Φ65~Φ180mm
Applicable can height  60~280mm
Applicable material   Tinplate steel-based
Applicable material thickness 0.2~0.35mm
Seam welding landing 0.4mm 0.6mm
Seam point distance 0.5-0.8mm
Applicable copper wire diameter Φ 1.38mm Φ 1.5mm
Cooling water

Temperature:15-20°C

Pressure:0.4~05Mpa Discharge:7L/min
Compressed air consumption 600 L/min
Pressure of compressed air 0.5Mpa-0.7Mpa
Power 380V±5% 50HZ
Total power   40KVA
Dimension 1750×1100×1800mm
Weight 1800Kg

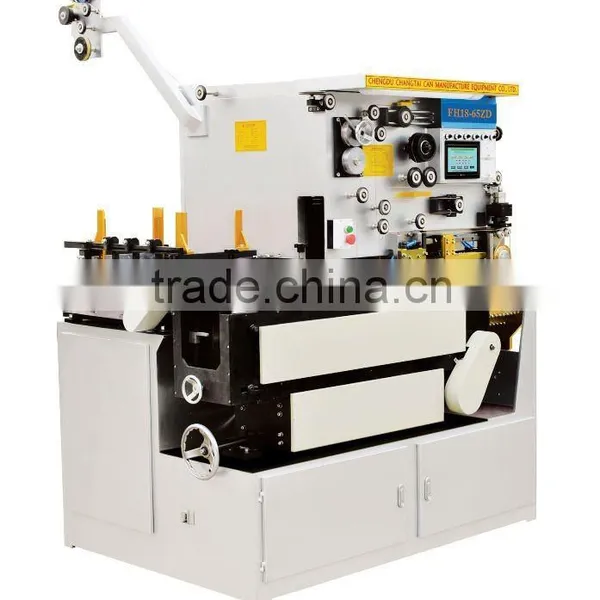

2.Latest picture



Automatic rectangular tin can making machine/aerosol can making machine

*********************accessories*****************************************

Automatic rectangular tin can making machine/aerosol can making machine

3.Our major component suppliers

1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2, Low voltage apparatus are produced by SCHNEIDER.

3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4,OMRON is our sensor supplier.

5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.



4.Can making technology  process

Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling

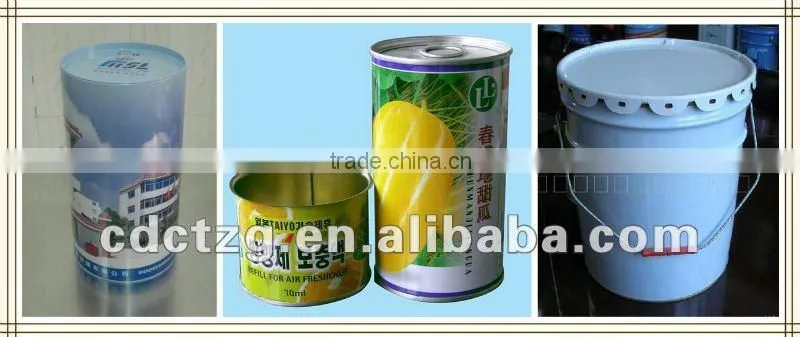

5.Applicable types of products

aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.

 Automatic rectangular tin can making machine/aerosol can making machine
