Cereal bar production line

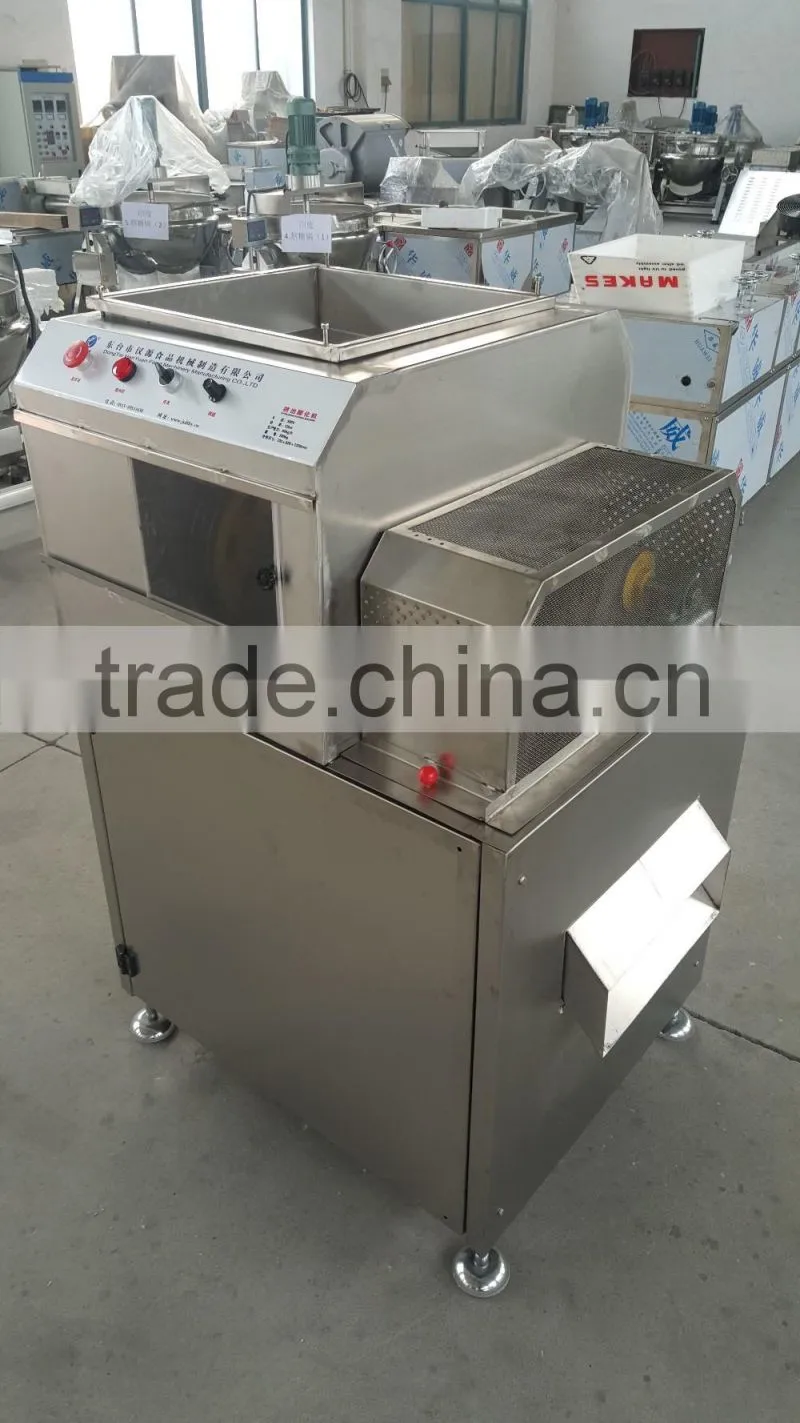

1-1 Single screw extruder
Function:
1.The machine is characterized by small volume,light weight ,elegant structure and simple operation technology.
2.The size of production can be changed by adjust the mould.
3.The machine is extrended and motor with large power and converter with high performance can equiped which allows long-time successive operation with excellent puffing effect.
Parameters:
| Voltage(V) | Power(KW) | Output(kg/h) | Dimension(L*M*H) | Weight(kg) |
| 380/220 | 17 | 70 | 1000*700*900 | 280 |
1-2.Air flow puffing machine
Function:
This machine is used for puffing the rice,wheat,barley,beans and other grains.Its main working principle is making the mechanical energy into heat.The heat generated by the rotation of the machine will cook the grains.The most obvious characteristic of the expansion of food is larging the size of grains.
Characteristics:
1.Easy operation, power and time saved,high production
2.Equipped with seismic thermometer and pressure gauge,it can measure the temperature and pressure inside the tank at any time.
Parameters:
| Voltage | Power | Output | Size | Weight |
| 380v | 0.75kw | 60kg/h | 1650*800*1350mm | 450kg |
2.Sugar boiling pot
Function:
Mainly used for candy,caramel treats beverage,pharmaceutical etc processing industry.
Feature:
Electric,tilting,stainless steel,jacketed kettle,have the function of mixing and melting,fixed and inclinable type.
Parameters:
| Model | Size | Volume | Voltage | Power |
| HY-100 | 900*600*1500mm | 100L | 380V | 9kw |
| HY-200 | 900*800*1800mm | 200L | 380V |
15kw |
3.Mixer
Function:
With reasonable structure and convenient operation,this machine is used for mixing food such as peanut,sesame,rice,corn and sugar,inner chamber of the mixing barrel is coated with non-stick material Teflon,to prevent the food and the barrel sticking together.
Parameters
| Voltage | Power | Output | Size | Weight |
| 380v | 1.1kw | 150-300kg/h | 800*900*1400mm | 100kg |

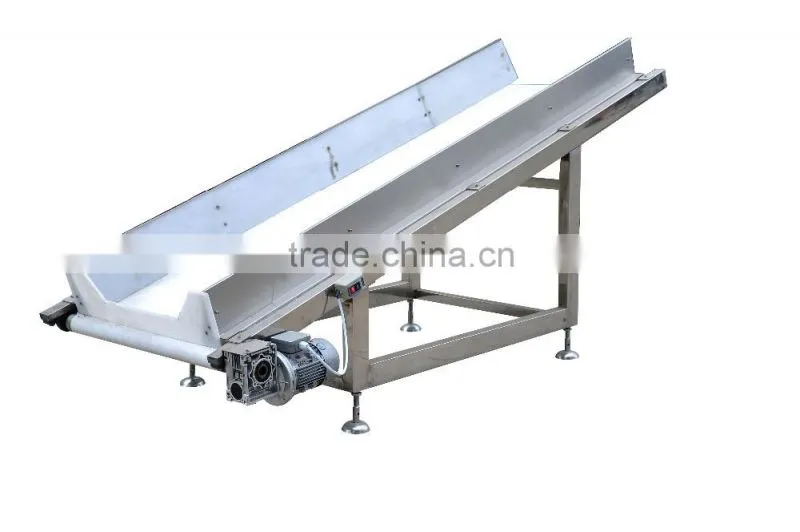

4.Conveyor
Parameters
| Voltage | Power | Weight | Size |
| 380v | 0.37kw | 120kg | 2500*800*1080mm |
5.Peanut candy cutting machine
Function:
1.This machine is used to cutting cereals in the same size automaticly.Thanks to mature technology,it is large output and easy operation.
2.The machine applies to rice candy , peanut candy, and seed candy .It can change different moulds and produce various sorts of products.
3.The length of the cooling conveying links can be changed and cooling fans can be equipped based as required ,so as to enhance the cooling effect.
Parameters:
| Model | Voltage | Power | Output | Size | Weight |
| HY-68 | 380v | 2.8kw | 250kg/h | 6800*1200*1200mm | 1000kg |

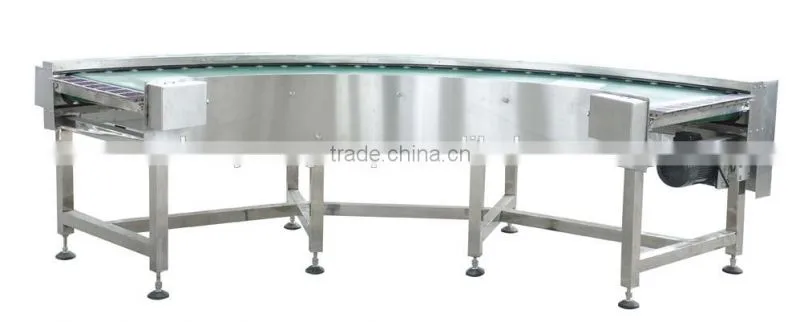

6. 90 or 180 degree conveyor
Parameters
| Voltage | Power | Weight | Size |
| 380V | 1.1KW | 120KG | 2500*820*1080MM |
7.Packing machine
Function:
This machine is suitable for packing long box Mihua Tang, Shaqima,
moon cake, biscuits, bread, rolls, pie, instant noodles, candy and other foods.
Cereal bar production line
