ELD-1 Position Sensor1.Smooth moving ,performance stable
2.Long life span
3.high precision Sensor
4.resisting shock
ELD-1 Position Sensor
- Telescopic shaft penetrating ,innerspring self-resetting
- Plug or cable type as optional connection
- Smooth moving sensors,performance stable sensor
Model | 10L 25L 50L 75L 100L |
Linear stroke ( mm ) | 10mm 25 mm 50 mm 75 mm 100 mm |
Shelly Length ( A ) | 48 63 88 113 138 |
Mechanical Stroke ( B ) | 15 30 55 80 105 |
Size( C) | 7 12 12 12 12 |
Size( D ) | 6 32 32 32 32 |
Comprehensive Accuracy | 0.25% 0.2% 0.15% 0.1% 0.075% |
Force | ≤ 5N |
Repeatability | 0.002mm |
Output signal | 4~20mA,0~5V 0~10V or 0~±5V, 0~±10V |
Power supply voltage | 9V,12V,15V,24VDC (Standard) |
Operating temperature | -30~100°C |
Shock | 5~20000Hz |
Impact | 50g |
Protection class | IP40 |

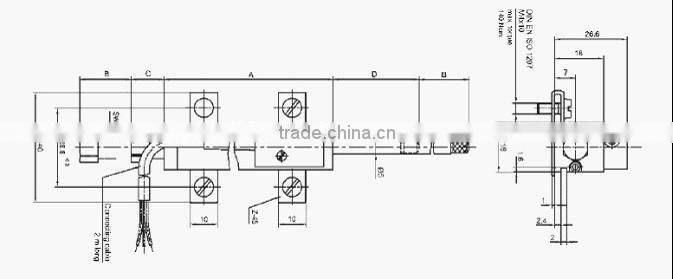

Position Sensor Cable type

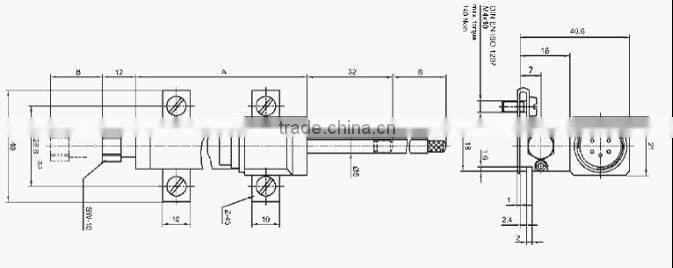

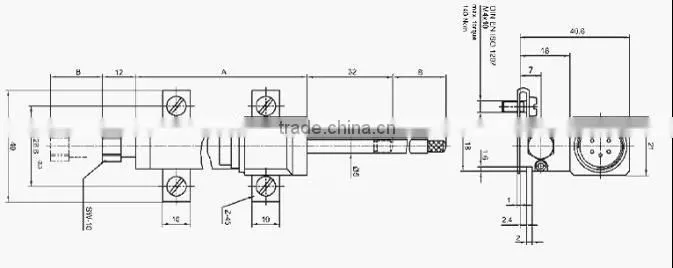

Plug type
Position Sensor
Force sensors
Diaplacement sensors
Pressure Transmitters
ELX serious intelligence displayers
load cell Sensors
For more products,please see our websites.
