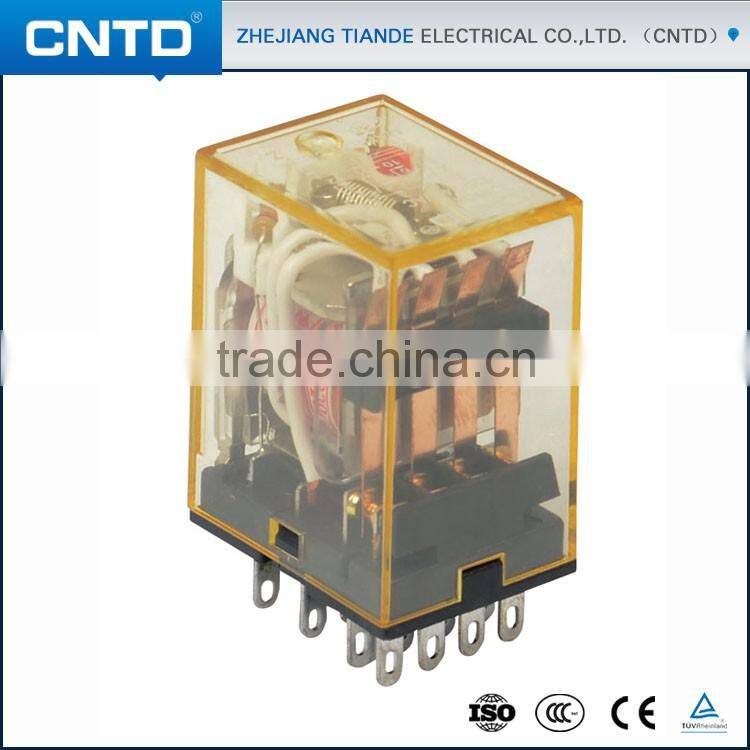

CNTD Manufacturing Company Miniature Voltage Relay With Good Price

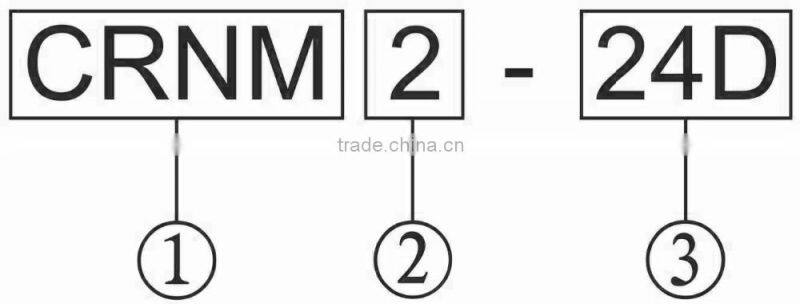

Model Designations
- Solid State Relay
- LED light for optional
- Coil has low power consumption and fast response
- CC,CCC safety certification
You are here:Home>> Relay >>Miniature Relay
Product characteristics
| Model No. | CRNM4 |
| Name | Miniature Relay |
Contact |
Max switching voltage:240VAC/28VDC Contact resistance:≤100Ω Meterial: Silver alloy Electrical life:≥105 time Mechanical life:≥107 time |
Max.allowed voltage(23℃) |
DC:≤ 75% X rated voltage AC:≤ 80% X rated voltage |
| Release voltage(23℃) |
DC:≥ 10% X rated voltage AC:≥ 30% X rated voltage |
Max.allowed voltage |
110% X rated voltage |
| Nominal voltage |
DC 6~220V AC 6~380V |
Coil power |
DC:0.9W,AC1.2VA |
| Operate time | ≤15ms |
| Release time | ≤10ms |
| Dielictric strength |
Between contacts 1000VAC/1min(Leakage current 1mA) Between contacts(different pole) 1000VAC/1min(Leakage current 1mA) Between contacts and coil 1500VAC/1min(Leakage current 1mA) |
| Insulation resistance | ≥100MΩ(500VDC) |
Ambient temperature |
-25~+55℃ |
Install model |
PCB |
Related Products
Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Express,air shipment and sea shipment as per customers' request
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
