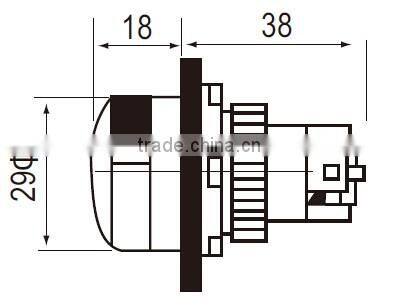

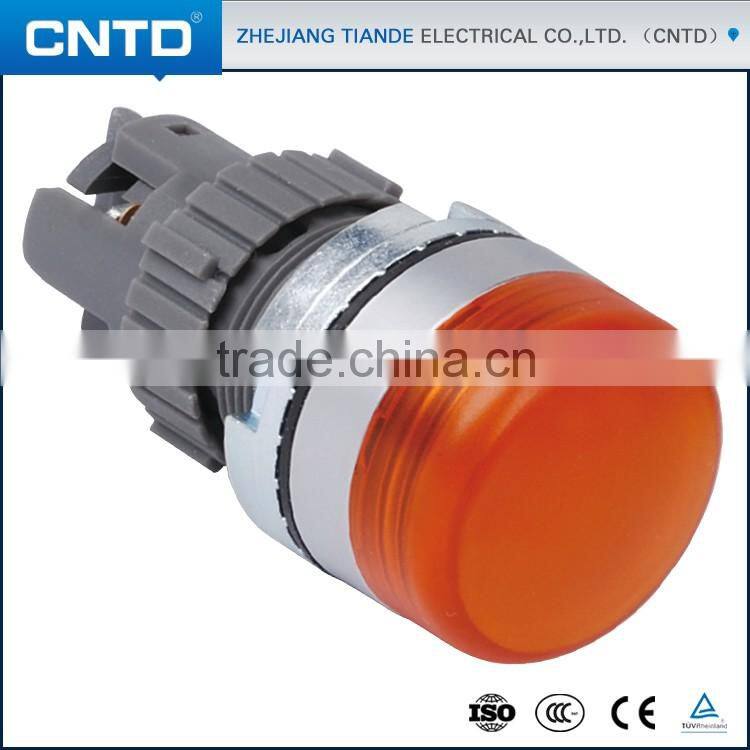

CNTD Latest Products Indicating Lamp Mini Waterproof Round Switch Push Button
Model Designations
- Fixed hole diameter: C2=22φRound,C3=30φRound
- Types:flat head,short handle knob,long handle knob,key knob,convex head,emergency stop head, Long handle with lamp knob, standard type indicating lamp and so on.
- Operation type:Pushbutton Switch: Blank=Self-resetting,D=Self-locking Knob Switch,Monolever Switch: F2=2 to the self-locking,F3=3 to the self-locking, F4=4 to the self-locking,T2=2 to reset,T3=3 to reset,T4=4 to reset
- Contact:1A=1NO,1B=1NC,1C=1A1B,1D=1A+1B,2A=2NO,2B=2NC,2C=1A1B+1A1B
- Head color: R=red,G=green,Y=yellow,W=white,B=black,BL=blue
- With lamp voltage:12=12VDC,24=24VDC,36=36VDC,48=48VDC 110=110VAC,220=220VAC, 380=380VAC
You are here:Home>> Pushbutton Switch >>Waterproof Push Button Switch
Product characteristics
| Model No. | C2LUF |
| Name | Push Button Switch |
| Electrical capacitor | Max insulation voltage600VAC, Max thermal current10A |
| Operation | AC15 Type:250VAC/6A, DC13 Type:250VDC/0.6A |
| Contact resistance | Max 50MΩ |
| Insulation strength | 2500VAC 50Hz,1 minute |
Insulation resistance |
500VDC below,100MΩ above |
Mechanical life |
Pushbutton switch: momentary>3,000,000 lasting>5,000,000 |
Selector switch: momentary>3,000,000 lasting>5,000,000 | |
| Key switch: momentary>3,000,000 lasting>5,000,000 | |
| Emergency switch: >3,000,000 | |
Vibration resistance |
10g @40-500Hz |
| Life | Lamp 1,000 hour LED 1,000 hour |
| Electrical life | Contact block AC15 250VAC/6A >1,000,000 DC13 250VAC/0.6A >1,000,000 |
| Degree of protection | IP65/IP40 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CE/CCC/EN60947-5-1 approved standard |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Related Products
Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Express,air shipment and sea shipment as per customers' request
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
