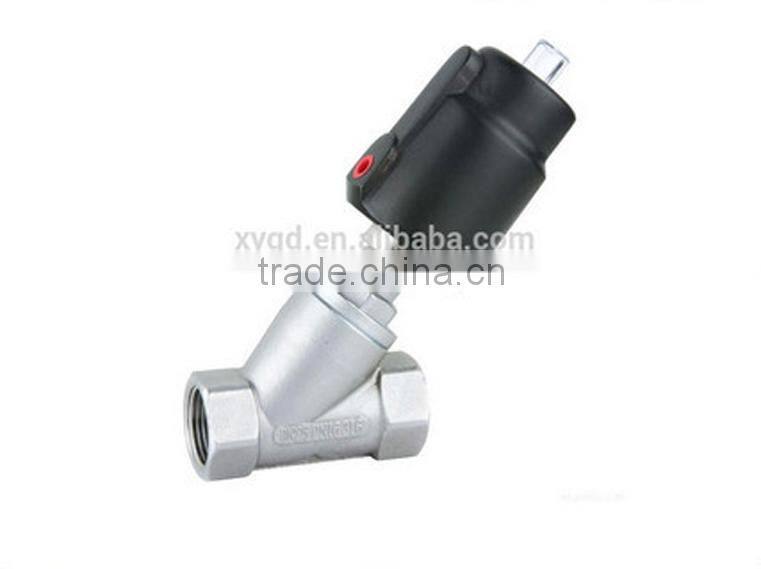

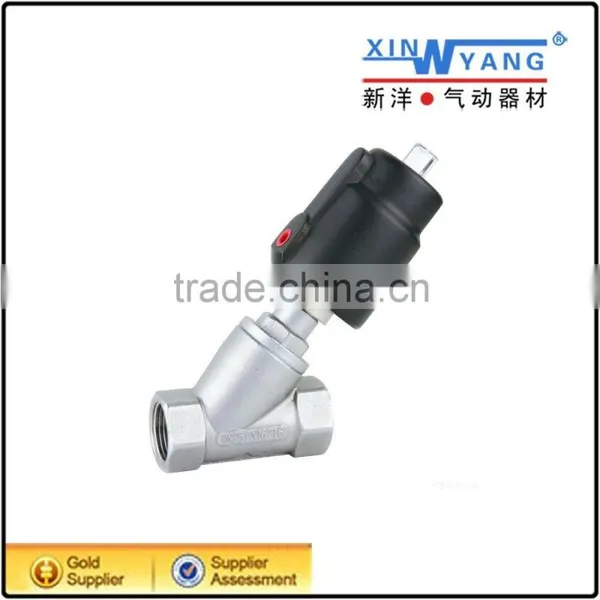

Stainless Steel Pneumatic Control Piston Angle Seat Valve
*Feature of Stainless Steel Pneumatic Control Piston Angle Seat Valve*
1.Anti-corrosive
2. Through flow, low fluid resistance
3. Light weight, low volume
4.Piston type air-operated valve
5. Open / close air source pipeline to control main valve
6. Easy to install, with infinitely rotatable actuator
7. With pilot air pressure, zero leakage, long service life
8. Optional anti-water-hammer function
*Technical of Stainless Steel Pneumatic Control Piston Angle Seat Valve*
| Nominal diameter | port zise | CV value | Max. operate pressure | Min. control pressure |
| DN-15 | 1/2'' | 4.2 | 0~1.6Mpa | 0.39Mpa |
| DN-20 | 3/4'' | 8 | 0~1.1Mpa | 0.39Mpa |
| DN-25 | 1'' | 19 | 0~1.1Mpa | 0.42Mpa |
| DN-32 | 1/¼'' | 27.5 | 0~1.5Mpa | 0.5Mpa |
| DN-40 | 1/½'' | 42 | 0~1.25Mpa | 0.44Mpa |
| DN-50 | 2'' | 55 | 0~1.0Mpa | 0.4Mpa |
Why to choose us?
1)We have own factory which has more than 150 employees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.

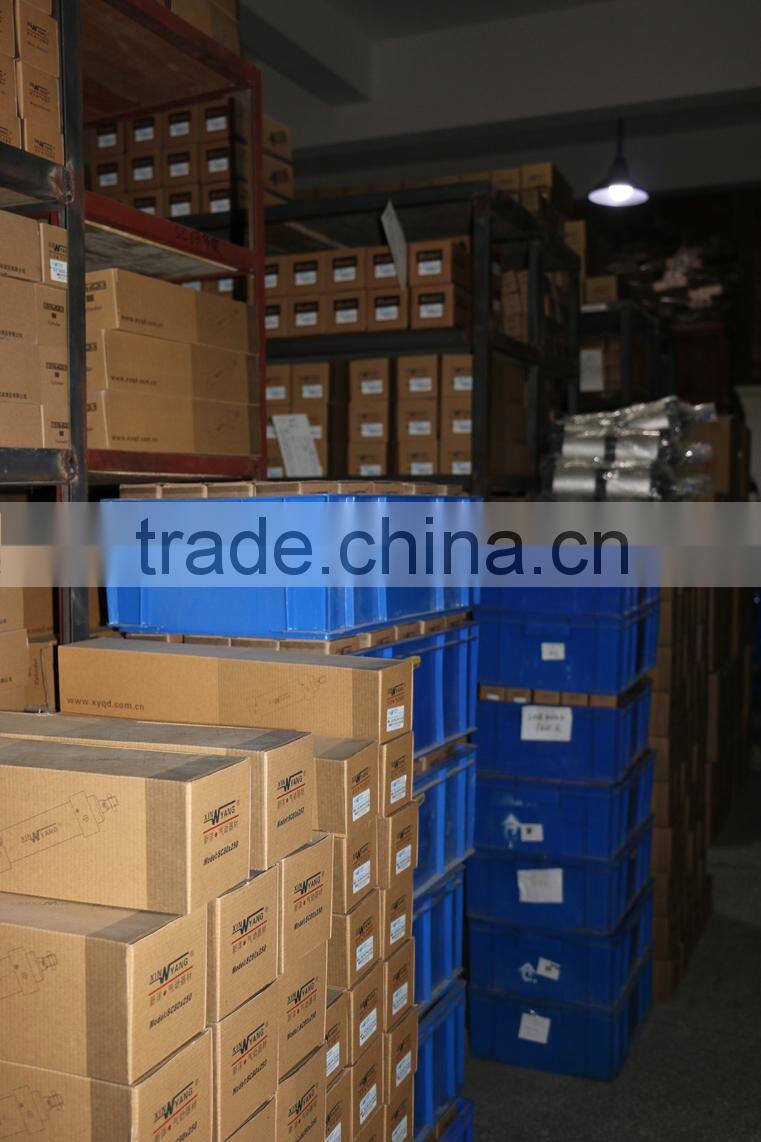

2)We have sufficient stock for your purchase.
2)We have sufficient stock for your purchase.
3)Our products packed with solid carton and wooden case.
*Exbibition*
*Regular Customers Come to Visit Our Factory*

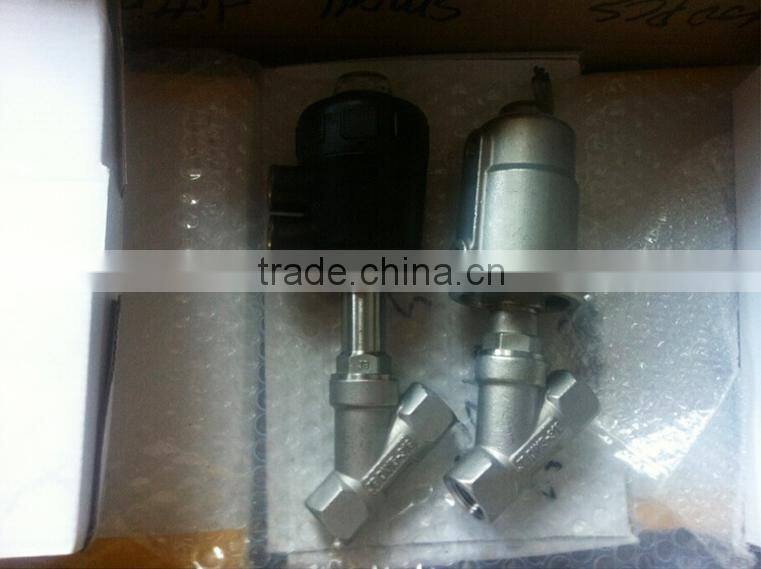

*Delivery method of Pneumatic Control Valve*
