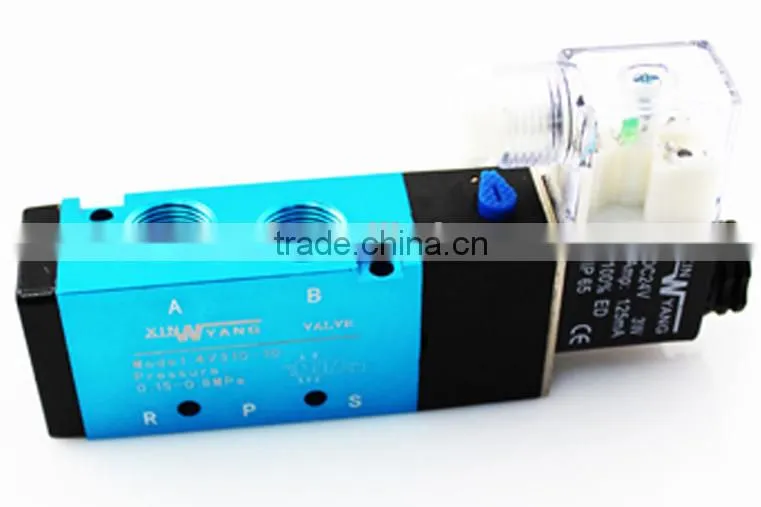

4V210-08 Solenoid Valve Pneumatic Equipment
*Features of 4V210-08 solenoid valve pneumatic equipment*
1.Function: Direction Control 5/3 way air solenoid valve dc24
2.Inlet port=Outlet port =G1/4'', Exhaust=1/8''
3.No need to add oil for lubrication
4.It is available to form manifold valve with the base to save installation space;
5.Sliding column hole is processed by CNC machine
6.High precision of hole reduces friction and attrition, therefore air solenoid valve has low start pressure and long service life.
7.Approved by ISO9001:2008
*Ordering code of 4V210-08 Solenoid Valve Pneumatic Equipment*
| 4V | 2- | 10- | 8- | AC220V |
| Model | Code | Valve type | Port size | Voltage |
|
4V:5/2way solenoid valve 4A:5/2way air valve 3V:5/3way solenoid valve 3A:5/3way air valve |
2:200 Series |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
06:G1/8'' 08:G1/4'' |
DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380 50/60Hz |

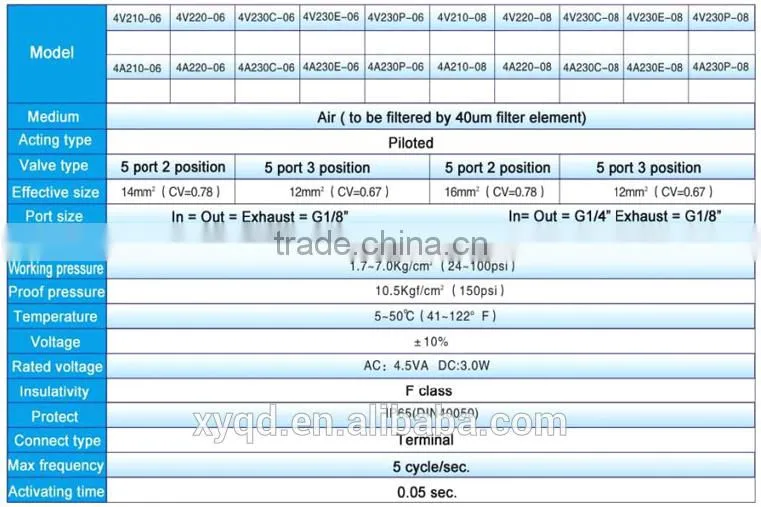

*Specification of 4V210-08 solenoid valve pneumatic equipment*

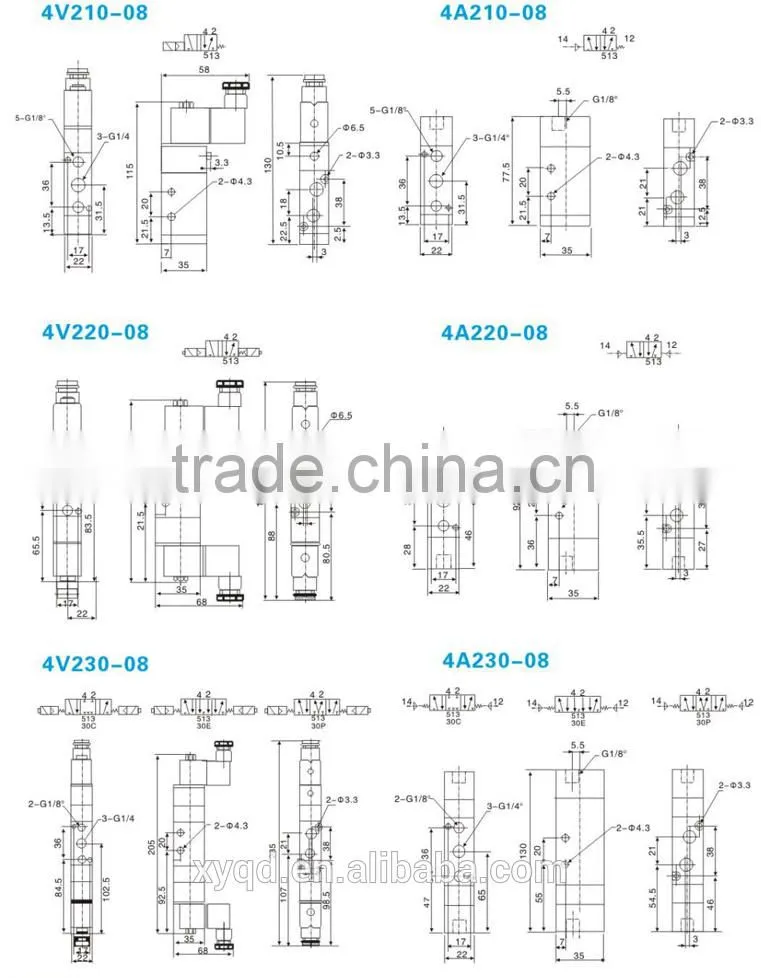

*Dimension of 4V210-08 solenoid valve pneumatic equipment*
Why to choose us?
1)We have own factory which has more than 150 enployees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
2)We have sufficient stock for your purchase.
3)Our products packed with solid carton and wooden case.
*Exhibition*
*Regular customers come to visit our factory*
*Delivery method*
Welcome to contact me by email, i will reply you within 12 hours.
