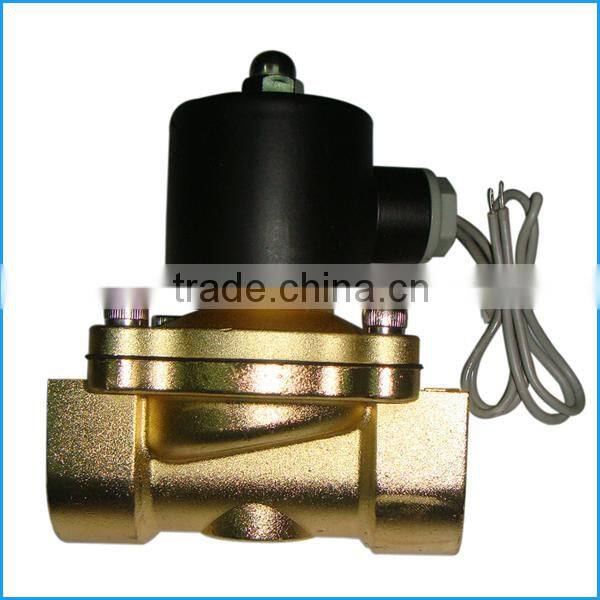

Help Center2W025-08 Series General Purpose 2 Port 2 Position Solenoid Valve
Related Products
-
Control Component/5/2 Way Air Valve/ Airtac 4A310 Gas ValveUS$ 4.58 - 6.41MOQ: 2 Pieces -
High Quality 4v210-08 Solenoid ValveUS$ 10 - 50MOQ: 2 Pieces
-
Low Price 4v210-08 Solenoid ValveUS$ 10 - 50MOQ: 2 Pieces
-
2W Series General Purpose Solenoid ValveUS$ 66.75 - 100.13MOQ: 2 Pieces
-
4H230-06 Two Position Five Way Hand Lever PositionUS$ 4.08 - 5.31MOQ: 1 Set
*Features of 2W Series General Purpose Solenoid Valve*
1. Structure: sliding column, good tightness and sensitive reaction
2. Port size: thread size range from G1/8’’ to G2'’, orifice size range from 2.5mm to 50mm, with thread pipe connection and flange connection types.
3. Anti-explosion and anti-water coil are available: the initial state for normally closed, normally open only for orifice with 16mm, 20mm and 25mm. With the stable function and extensive application, 2W valve is popular with customers.
4. Start voltage: It could start with no voltage.
5. The structure of flat diaphragm will extend it's life.
6. Plastic package will keep safty when use.

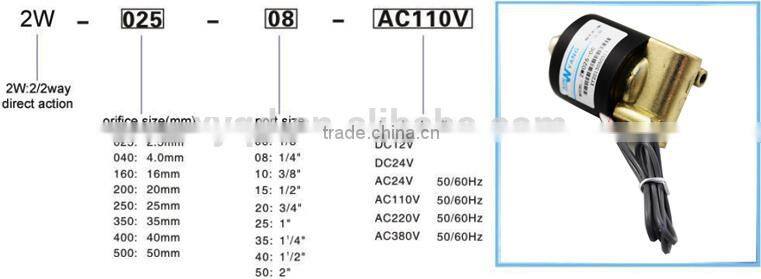

*Ordering code of 2W Series General Purpose Solenoid Valve*
*Specification of 2W Series General Purpose Solenoid Valve*
| Items | 2V025-06 | 2V025-08 | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Media | Air, Water, Oil | |||||||||||
| Motion type | Direct-acting | |||||||||||
| Function | Normally close | |||||||||||
| Effectitive cross section | 4.9mm2(CV=0.27) | |||||||||||
| Orifice(mm) | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 | ||||
| CV value | 0.23mm | 0.60mm | 4.8mm | 7.6mm | 12mm | 24mm | 29mm | 48mm | ||||
| Port size | G1/8'' | G1/4'' | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 11/4'' | 11/2'' | 2'' |
| Viscosity | below 20CST | |||||||||||
| Working pressure | 0-12(0-172psi) | air, water, oil:0-7.0 | water:0-5 air:0-7 oil:0-5 | |||||||||
| Proof pressure | 16(229psi) | 10 | ||||||||||
| Working temperature | -10-60°c(14-140°F) | -10-80°c | ||||||||||
| Working voltage | ±10% | ±10% | ||||||||||
| Connect | terminal | |||||||||||
| Body material | brass(nickel plating) | brass | ||||||||||
| sealing material | NBR, VITON | |||||||||||

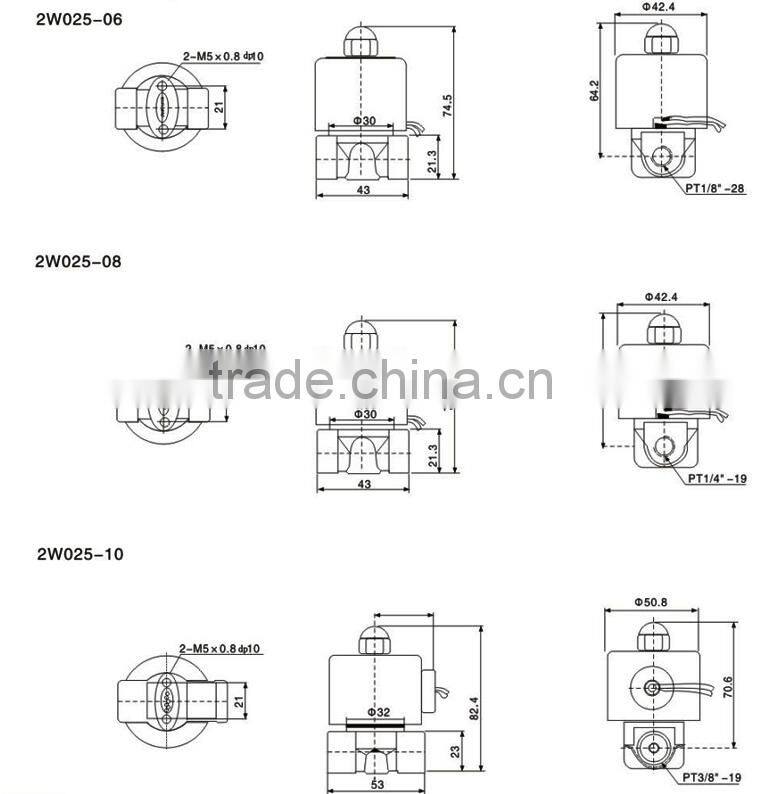

*Out size of 2W Series General Purpose Solenoid Valve*

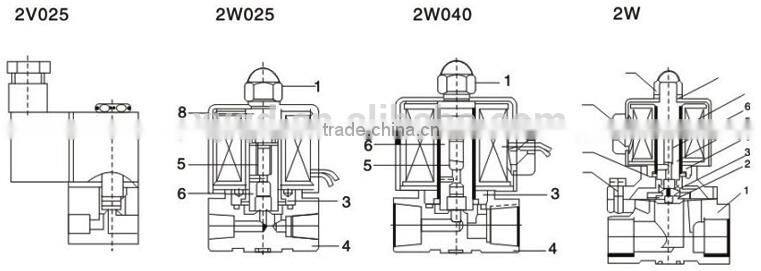

*Inner structure of 2W Series General Purpose Solenoid Valve*
Why to choose us?
1)We have own factory which has more than 150 enployees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.

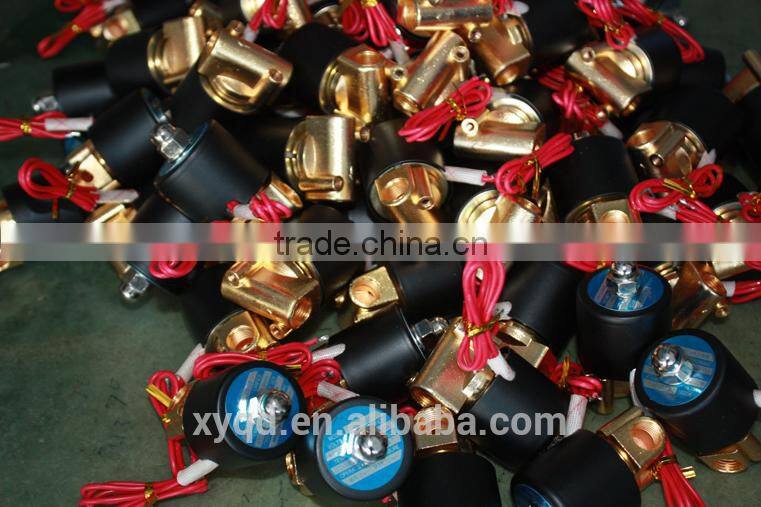

2)We have sufficient stock for your purchase.

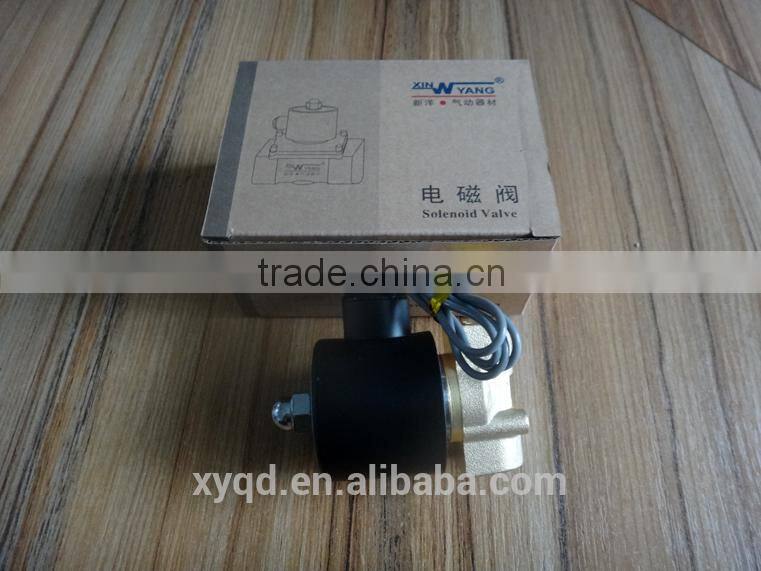

3)Our products packed with solid carton and wooden case.
*Our Exhibition*
*Regular Customers Come to Visit Our Factory*
*Delivery Method*
*Contacts* Any question please contact us by mail, skype, trademanager or other ways.
