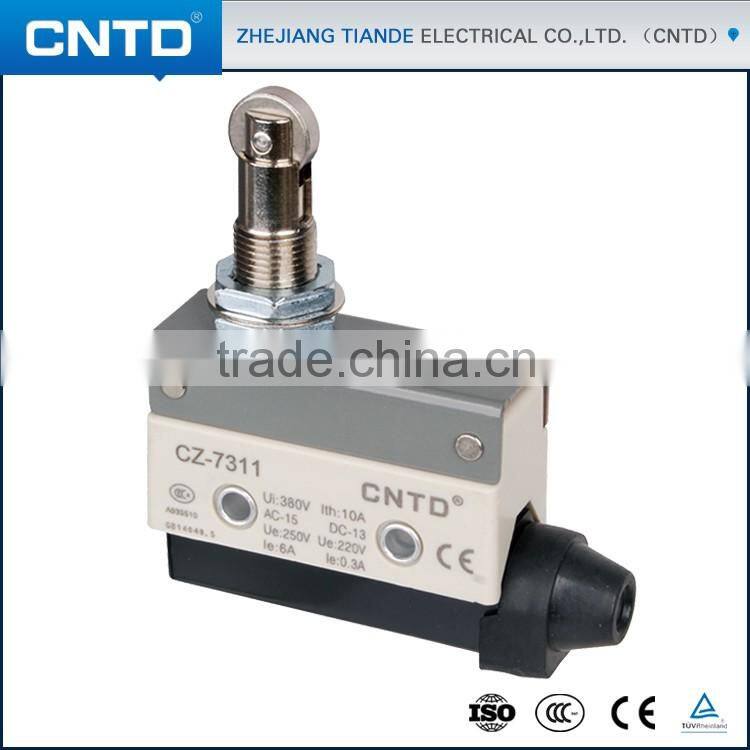

CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch

CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch photo-1
US$ 1.4 - 1.7 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
CZ-7311
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name CNTD
Model Number CZ-7311
Max. Current 10A
Max. Voltage 250VAC
Operating Temperature -10℃ to +80℃(with no icing)
Protection Level IP40

CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch

CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch



Product Details

Features

  • Virous of actuators, the operation position is adjustable. (such as CZ-7121).
  • Outer shell covered with intensive plastic, water-proof and oil-proof.
  • The mechanical strength is better than CM type of micro switch, bear hitting

CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch

You are here:Home>> Micro Switch >> CZ-7 TUV Electric Micro Switches

                            CNTD Top Selling Products 2016 Intensive Plastic Micro Push Button Switch



Ratings
Rated
voltage
Noninductive Load (A)Inductive Load (A)
Resistance LoadLamp LoadInductive LoadMotor Load
NCNONCNONCNONONC

125 VAC
250 VAC

480VAC

10
10

3

3.0
2.5

1.5

1.5

1.25
0.75

10

10
10

5

3

1.5

2.5

1.5

0.75

8 VDC
14 VDC
30 VDC
125 VDC
250 VDC

10

10

8

0.5

0.25

3

3

3

0.4

0.2

1.5

1.5

1.5

0.4

0.2

6

6

6

0.05

0.03

6

6

5

0.05

0.03

5

5

2.5

0.05

0.03

Note: 1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).

             2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of                             6 times the steady-state current.

            3.Product with spring, its usable range of operating part is within one third of the whole spring length from the front end                  of spring.

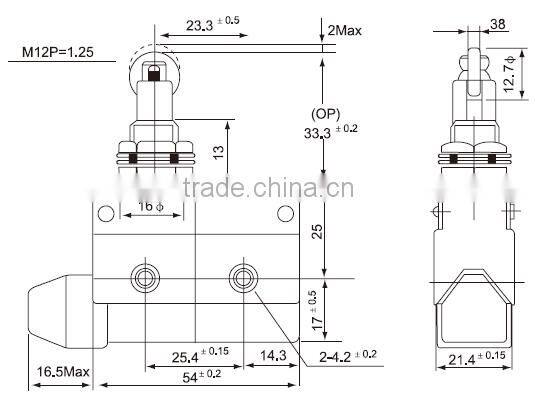

Operating characteristics



Models

CZ-7311

OF Max.

600g

RF Min.

100g

PT Max.

2.0mm

OT Min.

6.0mm

MD Max.

0.8mm

OP

33.3±1.2mm

FP

-

Product characteristics

Model No. CZ-7311
NameMicro switch
Operation speed0.5mm-50cm/s
Operating frequencyMechanical:120 operations/minute, Electrical: 30 operations/minute
Contact resistance15mΩ max.(initial value)
Insulation resistance100mΩ min.(at 500VDC)

Dielectric strength

1000VAC,50/60HZ for 1 minute between terminals of the same polarity

1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts

1500VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration10-55HZ,1.5mm pairs swing

Shock

Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S)

Life

Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above

Weight

About 60g

Degree of protectionIP40
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
CertificateTUV, CCC,CE,ISO9001
Logo      Customized logo with Decal / Frosted / Print are available as request

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)
