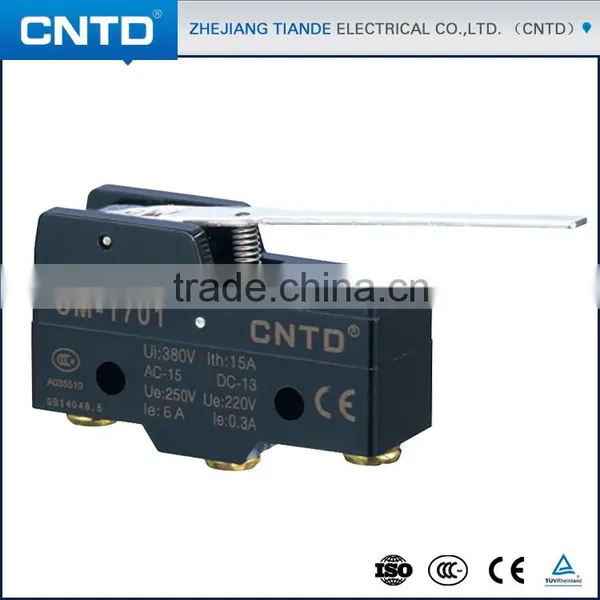

CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701)

CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701) thumbnail-1
CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701) photo-1
US$ 1.16 - 1.21 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNTD
Model Number:
CM-1701
Contact Supplier Request Quote Chat Now
Zhejiang Tiande Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CNTD
Model Number CM-1701
Max. Current 15A
Max. Voltage 250V
Operating Temperature -10~+80C
Protection Level IP65

CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701)



CE /TUV Approved High Accuracy Waterproof Micro Switch (CM-1701)



Features

  • Various of actuators, action position is adjustable (such as CM1701)
  • High switch on and off capacity(15A)
  • High accuracy
  • Wide range of operation speed
  • Each type of CM series has solder terminal, screw terminal and tab terminal are selective
  • Add A for solder terminal, add C for tab terminal, blank for screw terminal





Product Description

  Technical Data



Operation speed

0.01mm-1m/sec

Operating frequency

Mechanical: 240 operations/min.

Electrical: 20 operations/min.

Contact resistance

15mΩ max. (initial value)

Insulation resistance

100mΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60HZ for 1 minute between terminals of the same polarity

1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts

1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration frequency

10-55HZ,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃

Humidity

General purpose type: 85% RH max., Sealed type: 95% RH max.

Life

Mechanical: 20,000,000 operations min.

Electrical: 500,000 operations min.

Weight

About 22g to 58g

Degree of protection

IP65

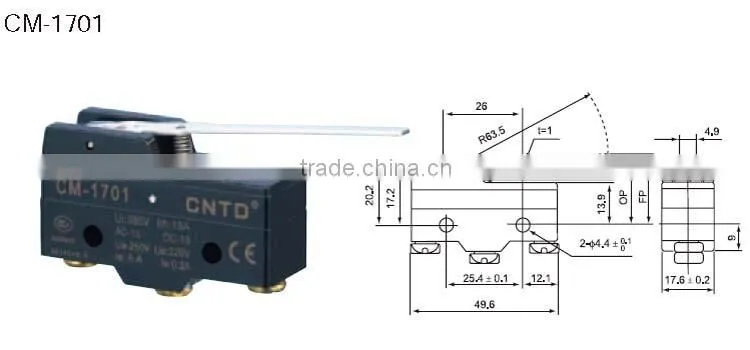

Appearance and Dimension

Operating characteristics





Models

CM1300

CM1301

CM1303

CM1305

OF Max.

350g

300g

300g

350g

RF Min.

114g

50g

50g

114g

PT Max.

0.4mm

4mm

4mm

0.4mm

OT Min.

0.13mm

1.6mm

1.6mm

1.6mm

MD Max.

0.05mm

1.3mm

1.3mm

0.05mm

FP Max.



20.6mm

31.8mm



OP(mm)

15.9 ±0.4 mm

17.4 ±0.8 mm

28.6 ±0.8 mm

28.2 ±0.5 mm





Models

CM1306

CM1307

CM1308

CM1309

CM1701

 OF Max.

350g

350g

350g

350g

70g

 RF Min.

114g

114g

114g

114g

14g

PT Max.

0.4mm

0.4mm

0.4mm

0.4mm

10mm

OT Min.

1.6mm

5.5mm

3.58mm

3.58mm

5.6mm

MD Max.

0.05mm

0.05mm

0.05mm

0.05mm

1.27mm

 FP Max.









28.2mm

 OP(mm)

21.5 ±0.5 mm

21.50. ±8 mm

33.4±1.2 mm

33.4±1.2 mm

19 ±0.8 mm



Models

CM1702

CM1703

CM1704

CM1705

CM1743

  OF Max.

160g

100g

160g

10g

160g

  RF Min.

28g

22g

42g

3g

42g

 PT Max.

5mm

7.1mm

2.7mm

20mm

2.7mm

OT Min.

2mm

4mm

2.4mm

5.6mm

2.4mm

MD Max.

1mm

1.02mm

0.5mm

3mm

0.5mm

 FP Max.

24.8mm

36.5mm

32.5mm



43.6mm

OP(mm)

19 ±0.4 mm

30.2 ±0.8 mm

30.2 ±0.4 mm

19±0.4 mm

43.1 ±0.8 mm







Packaging & Shipping



  • Payment terms: 30% deposit in advance, 70% before shipment, 100% T/T in advance
  • Lead time:7-10 working days after payment received
  • Shipping Ways: Express, Air shipment and Sea shipment as per customers' request



Related Products







Company Information
