Help CenterUC5 Rod End Bearings M8*1.25
Related Products
-
Rod End Bearings POS10US$ 1 - 50MOQ: 10 Pieces -
Rod End Bearings POS / PHS SeriesUS$ 1 - 50MOQ: 10 Pieces
-
Rod End Bearings PHSA20US$ 1 - 50MOQ: 10 Pieces
-
High Precision Spherical Plain Bearing / Rod End Bearings PHS POS PHSAUS$ 1 - 50MOQ: 10 Pieces
-
Ball Joint Rod End Bearing PHSA10 PHSA16 PHSA20 PHSA22US$ 1 - 50MOQ: 10 Pieces
Rod end bearings PHS/ POS/ GIKR/GIKL/POSB/PSI

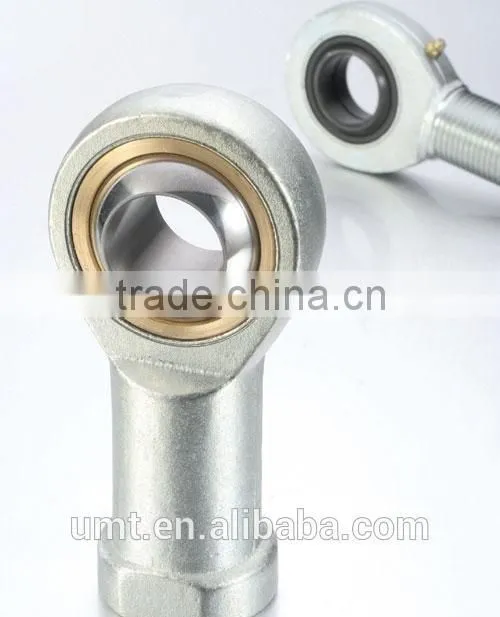

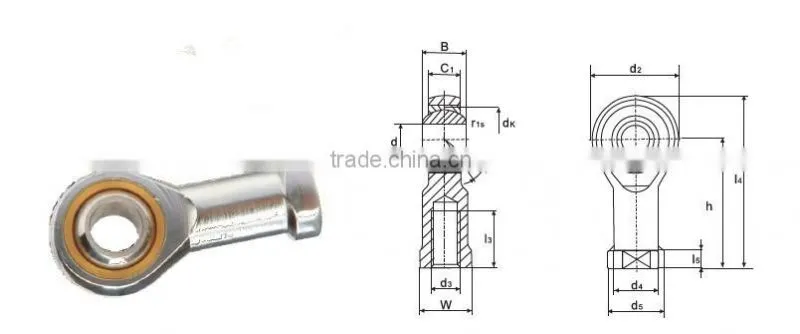

Rod end bearings female thread steel bearing
| type | Dimensions(mm) | a |
weight (g ) |
old designation | |||||||||||
| d | d3 | d2 | d5 | S | B | L5 | C1 | h1 | L3 | d4 | L4 | ||||
| PHSA5 | 5 | M5x0.8 | 18 | 12.5 | 10 | 8 | 4 | 6 | 27 | 10 | 9 | 36 | 13 | 25 | SI5T/K |
| PHSA6 | 6 | M6x1 | 20 | 13 | 11 | 9 | 5 | 6.75 | 30 | 12 | 10 | 45 | 13 | 27 | SI6T/K |
| pHSA8 | 8 | M8x1.25 | 24 | 16 | 14 | 12 | 5 | 9 | 36 | 16 | 12.5 | 48 | 13 | 46 | SI8T/K |
| PHSA10 | 10 | M10x1.5 | 28 | 19 | 17 | 14 | 6.5 | 10.5 | 43 | 20 | 15 | 57 | 13 | 76 | SI10T/K |
| PHSA12 | 12 | M12x1.75 | 32 | 22 | 19 | 16 | 6.5 | 12 | 50 | 22 | 17.5 | 66 | 13 | 115 | SI12T/K |
| PHSA14 | 14 | M14x2 | 36 | 25 | 55 | 19 | 8 | 13.5 | 57 | 25 | 20 | 75 | 13 | 170 | SI14T/K |
| PHSA16 | 16 | M16x2 | 42 | 27 | 25 | 21 | 8 | 15 | 64 | 28 | 22 | 84 | 13 | 230 | SI16T/K |
| PHSA18 | 18 | M18x1.5 | 46 | 31 | 27 | 23 | 10 | 16.5 | 71 | 32 | 25 | 94 | 13 | 320 | SI18T/K |
| PHSA20 | 20 | M20x1.5 | 50 | 34 | 30 | 25 | 10 | 18 | 77 | 33 | 27.5 | 102 | 13 | 420 | SI20T/K |
| PHSA22 | 22 | M22x1.5 | 54 | 37 | 32 | 28 | 12 | 20 | 84 | 37 | 30 | 111 | 13 | 540 | SI22T/K |
| PHSA25 | 25 | M24x2 | 60 | 42 | 30 | 31 | 12 | 22 | 94 | 42 | 33.5 | 124 | 13 | 750 | SI25T/K |
| PHSA28 | 28 | M27x2 | 66 | 46 | 41 | 35 | 14 | 24 | 103 | 41 | 37 | 136 | 13 | 820 | SI28T/K |
| PHSA30 | 30 | M30x2 | 70 | 50 | 41 | 37 | 15 | 25 | 110 | 51 | 40 | 145 | 13 | 1300 | SI30T/K |
Rod end bearings male thread steel bearing
| type | Dimensions(mm) | a | weight(g ) | old designation | |||||||
| d | d3 | d2 | B | C1 | h | L1 | L2 | ||||
| POSA5 | 5 | M5x0.8 | 18 | 8 | 6 | 33 | 19 | 42 | 13 | 20 | SA5T/K |
| POSA6 | 6 | M6x1 | 20 | 9 | 6.75 | 36 | 22 | 46 | 13 | 21 | SA6T/K |
| POSA8 | 8 | M8x1.25 | 24 | 12 | 9 | 42 | 25 | 54 | 13 | 34 | SA8T/K |
| POSA10 | 10 | M10x1.5 | 28 | 14 | 10.5 | 48 | 29 | 62 | 13 | 58 | SA10T/K |
| POSA12 | 12 | M12x1.75 | 32 | 16 | 12 | 54 | 33 | 70 | 13 | 92 | SA12T/K |
| POSA14 | 14 | M14x2 | 36 | 19 | 13.5 | 60 | 26 | 77 | 13 | 153 | SA14T/K |
| POSA16 | 16 | M16x2 | 42 | 21 | 15 | 66 | 40 | 86 | 13 | 205 | SA16T/K |
| POSA18 | 18 | M18x1.5 | 46 | 23 | 16.5 | 72 | 44 | 95 | 13 | 280 | SA18T/K |
| POSA20 | 20 | M20x1.5 | 50 | 25 | 18 | 78 | 47 | 103 | 13 | 370 | SA20T/K |
| POSA22 | 22 | M22x1.5 | 54 | 28 | 20 | 84 | 51 | 111 | 13 | 475 | SA22T/K |
| POSA25 | 25 | M24x2 | 60 | 31 | 22 | 94 | 57 | 124 | 13 | 650 | SA25T/K |
| POSA28 | 28 | M27x2 | 66 | 35 | 24 | 103 | 62 | 136 | 13 | 800 | SA28T/K |
| POSA30 | 30 | M30x2 | 70 | 37 | 25 | 110 | 66 | 145 | 13 | 1070 | SA30T/K |
we can also supply another rod end bearings, as below
PHS series, POS series, PHS**EC series, POS**EC series, PHSB series,
POSB series, PSI**C series, PSA**C series, PSIA**ES series,
PSAA**ES series, PCF series, PCM series
1.GIKR10-PB / GIKL10-PB
2.GIKR12-PB / GIKL12-PB
3.GIKR14-PB / GIKL14-PB
4.GIKR16-PB / GIKL16-PB
5.GIKR18-PB / GIKL18-PB
6.GIKR20-PB / GIKL20-PB
7.GIKR22-PB / GIKL22-PB
8.GIKR25-PB / GIKL25-PB
9.GIKR30-PB / GIKL30-PB
Products name |
rod end bearing |
Brand name |
Imported brand or customized to the customer's brand |
Series |
PHS,SI.POS GE, grease nipple type , standard grease nipple , ball joint male thread , copper threaded rod, threaded rod internal thread |
ID size |
10-30mm |
Cage material |
rubber , steel |
Precision |
PO P6 |
Sealing |
Open |
Quality standard |
ISO9001:2000 standard |
Service |
OEM &ODM service |
Delivery date |
2-7days after receipt of payment or deposit |
Payment terms |
|
Price terms |
EXW,FOB,CFR,CIF,DDU |
Application |
Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
Packing |
Industrial packing or according to buyers’ requirement |
BRAND |
UMT,OEM,Brand bearing |
1.Your inquiry to our product & price will be replied within 24hours
2.Well-trained & experienced staff are to answer all your inquiries in English of course
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help
4.Your business relationship with us will be confidential to any third party
5.Good after-sale service offered, please get back if you got question
| Company: | Shenzhen Youmeite Bearings Co., Ltd |
| Name: | CANDY AO |
| Web: | |
| Tel: | 0086-755-23300976 |
| Fax: | 0086-755-28142811 |
| Mobile | 0086-18719051618 |
| Skype | candy_umt |
| Email: | sales005(at) |

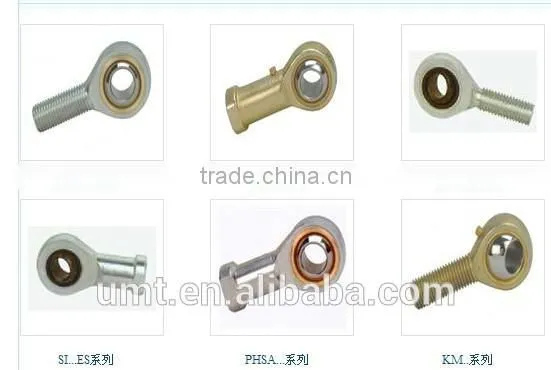

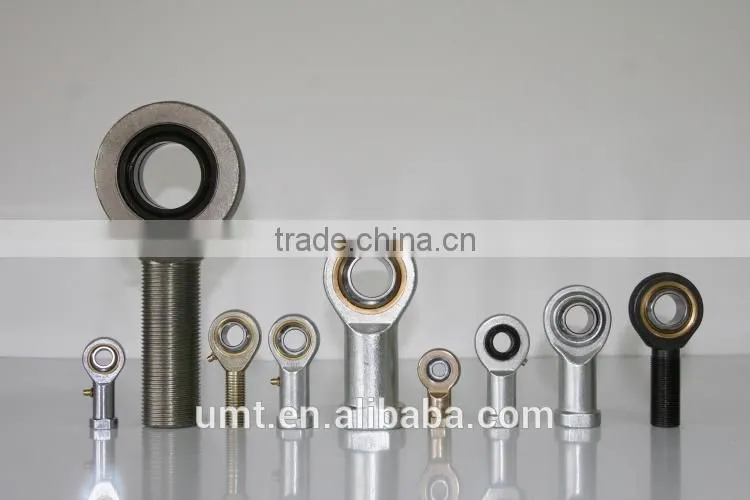

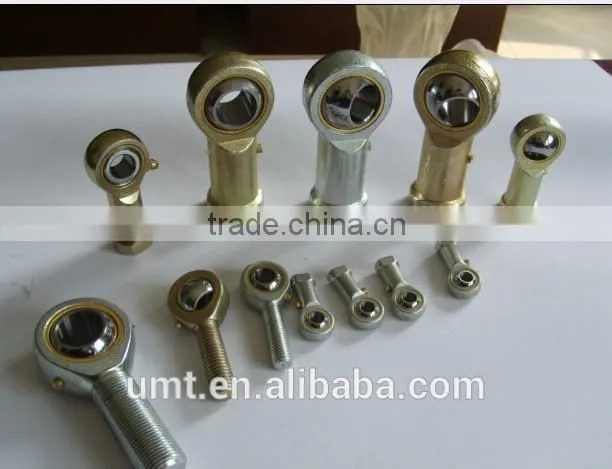

Different type Rod end bearing picture, as below

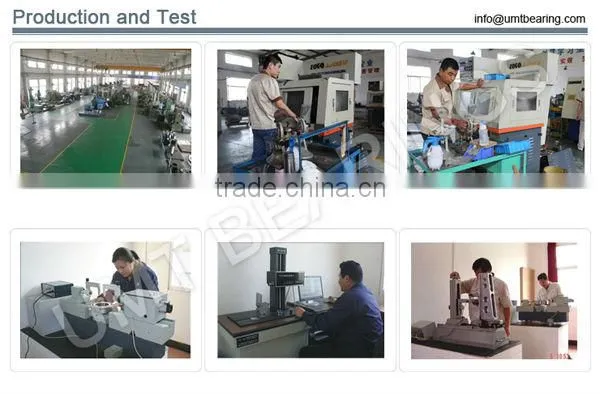

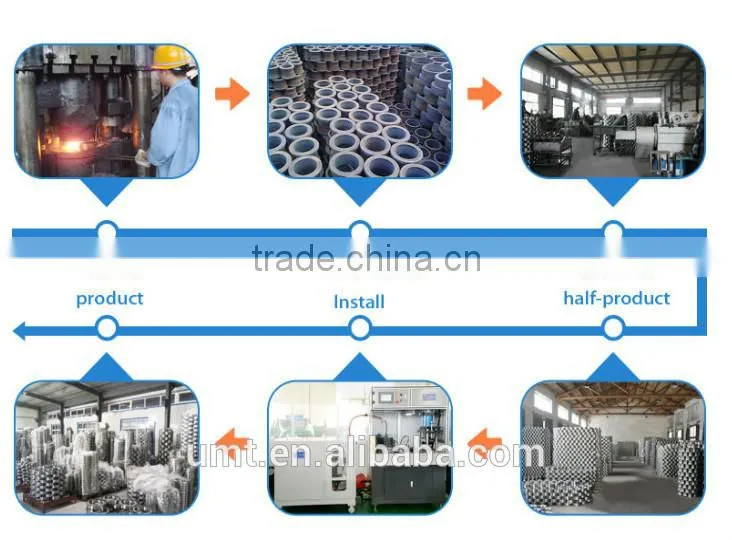

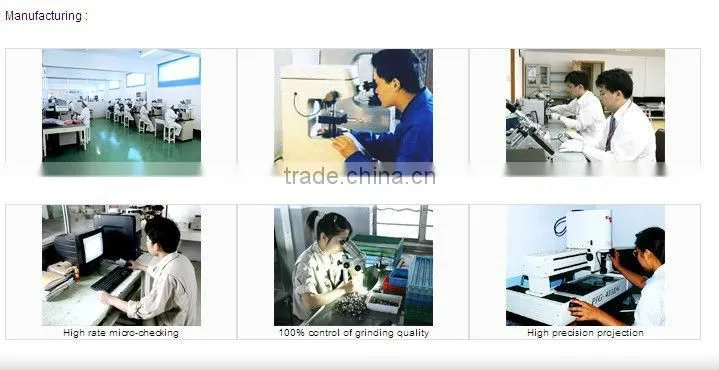

Our factory
Our Cetificate
