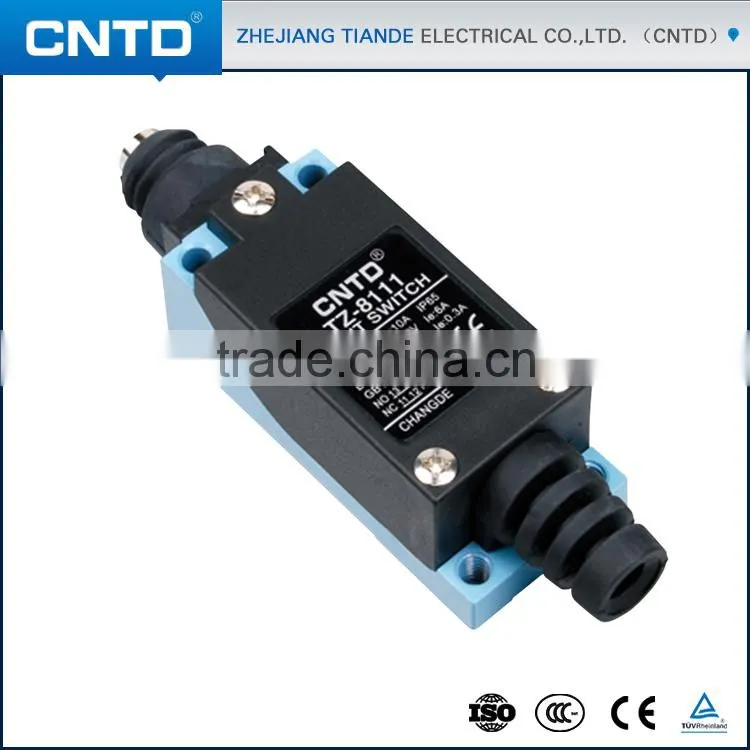

CNTD ME/TZ Series 250VAC 10A NO/NC IP65 Limit Switch For Gate Opener (TZ-8111)

Name: CNTD ME/TZ Series 250VAC 10A NO/NC IP65 Limit Switch For Gate Opener (TZ-8111)
Brand: CNTD
SKU: 107343569

US$ 2.59 - 2.89 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

CNTD

Model Number:

TZ-8111

Zhejiang Tiande Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CNTD

Model Number TZ-8111

Protection Level IP65/IP40

Operating Temperature -5~+65C (with no icing)

Max. Current 10A

Max. Voltage 250V

CNTD ME/TZ Series 250VAC 10A NO/NC IP65 Limit Switch For Gate Opener (TZ-8111)

Features

Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and zinc cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide variety of actuators, easily use

Product Description

Characteristics

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5℃ to +65℃
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

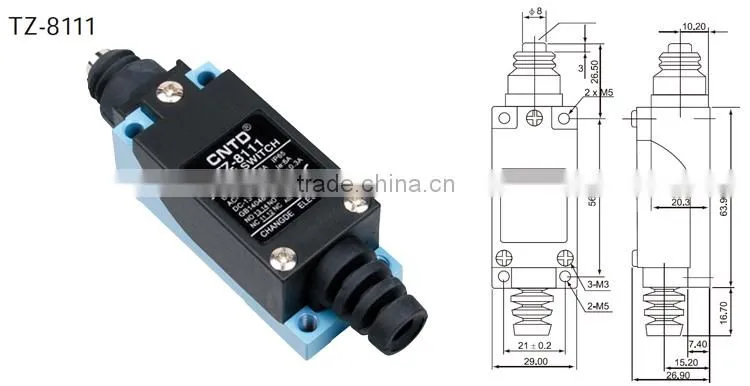

Appearance and Dimension

Operating Characteristics

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
