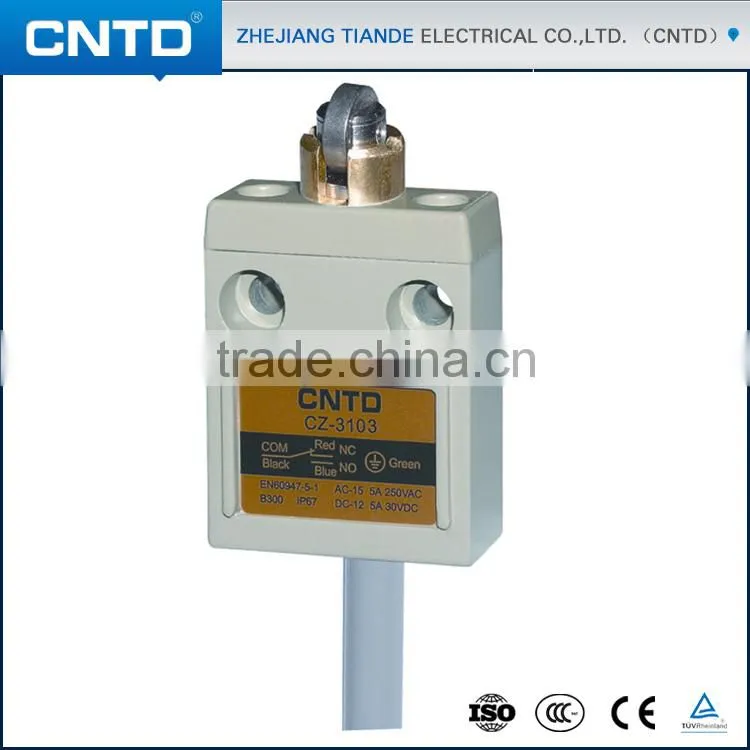

CNTD Aluminum Shell 250V 5A Prewired Waterproof Limit Switch with 3M Wire (CZ-3103)
Features
- DPDS limit switch for multiple applications
- Rugged aluminum alloy die cast housing
- High mechanical strength.
- Oil resistance,waterproof and dustproof structure
Specification
Rating |
5A 125V, 3A 250VAC |
Operating speed |
1mm-1m/s |
Operating frequency |
Mechanical: 120 operations/min. |
Electrical: 30 operations/min. | |
Contact resistance |
15mΩ max. (initial value) |
Insulation resistance |
100mΩ min. (at 500VDC) |
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts | |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
Vibration frequency |
10-55HZ,1.5mm double amplitude |
Shock |
Mechanical: 1, 000m/Sec2 (about 100G'S) Electrical: 500m/Sec2 (about 50G'S) |
Ambient temperature |
-10℃ to +70℃ |
Humidity |
<95% RH |
Life |
Mechanical: 10,000,000 operations min. Electrical: 200,000 operations min. |
Degree of protection |
IEC: IP 67 |
Weight |
Approx. 360g (cable length 3m) |
Approx. 540g (cable length 5m) |

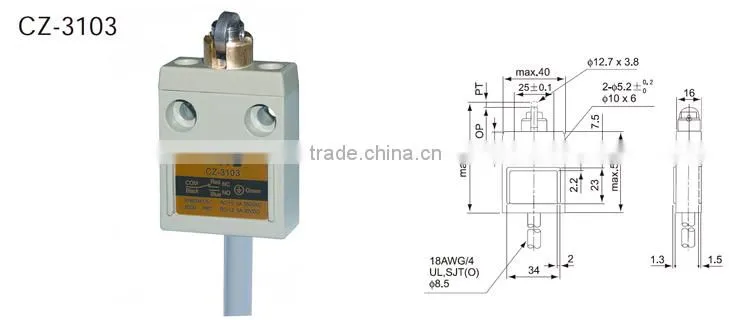

Appearance and Dimension
- Payment terms: 30% deposit in advance, 70% before shipment, 100% T/T in advance
- Lead time:7-10 working days after payment received
- Shipping Ways: Express, Air shipment and Sea shipment as per customers' request
1. Q: Could i put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided for free.
7. Q: How long to make a sample?
A: Fast delivery If we have stock.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
