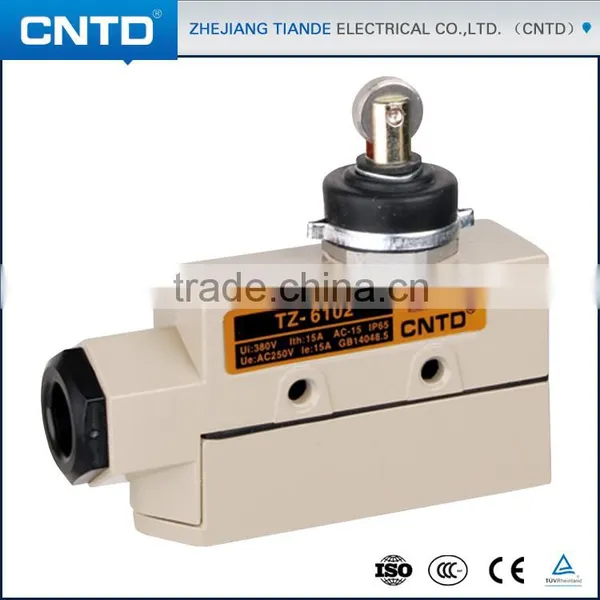

CNTD Top Quality CE TUV Approved IP65 protection Limit Switch Roller Plunger 10A 250V (TZ-6102)
Features
Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
Various of actuators that are taken convenience for using
Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
Cable M20x1.5 is optional
It is the same as CM micro switch in the rated value and characteristics

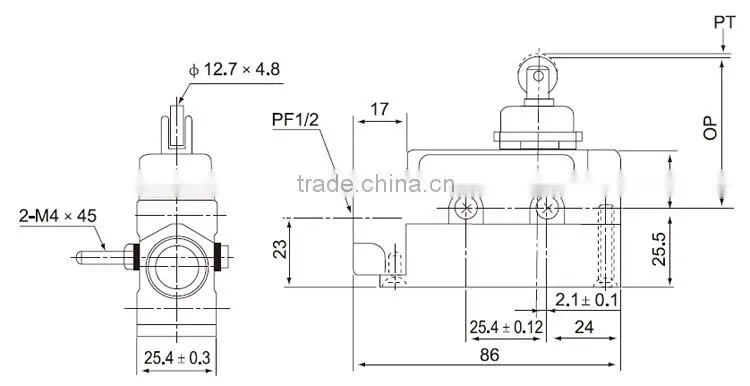

Dimension
Product characteristics
| Model No. | TZ-6102 |
| Name | Limit switch |
| Operation speed | 0.01mm/s-1m/sec |
| Operating frequency | Mechanical: 240 operations/minute, Electrical: 20 operations/minute |
| Contact resistance | 15mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength |
1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | |
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
Shock |
Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S) |
| Life | Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above |
| Weight | About 250~350g |
| Degree of protection | IP65 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV, CCC,CE,ISO9001 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Related Products
Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.
Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.
1.Thousands of products in stock and ready to ship
2.The most competitive pricing
3.Various shipping ways for reference
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a week
Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.
With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.
