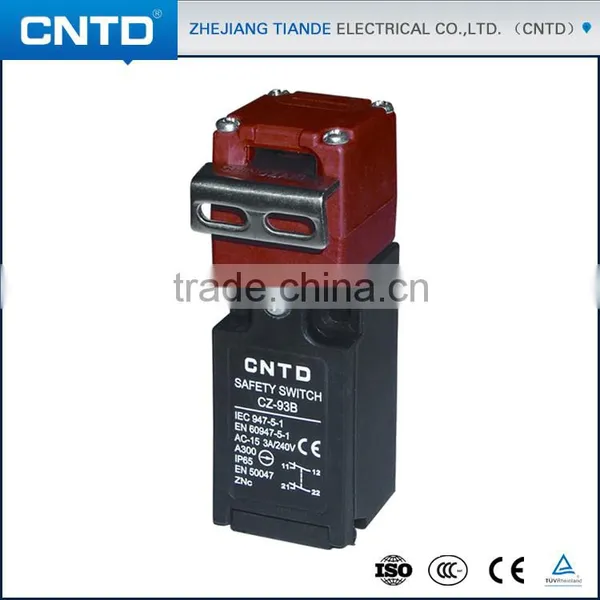

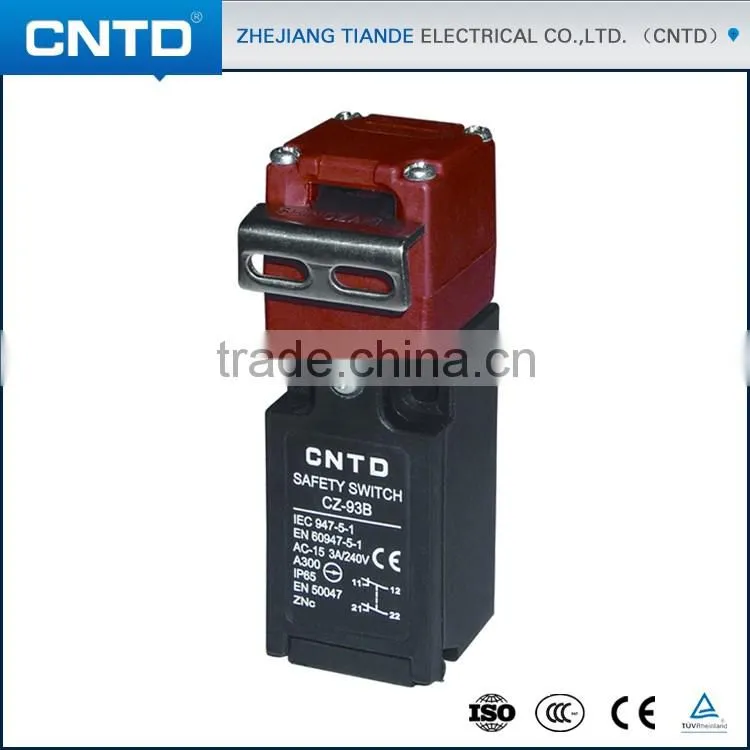

CNTD Waterproof CZ-93 Series 2NC Safety Interlock Limit Switch with Key 15A 250V (CZ-93B)
Features
- Safety interlock switch for safety position switch used for monitoring electric signals in safety devices for emergency shut-off
- 1NO and 1NC with positive opening
- Key actuator type
- Screw terminal socket for screwing on contacts

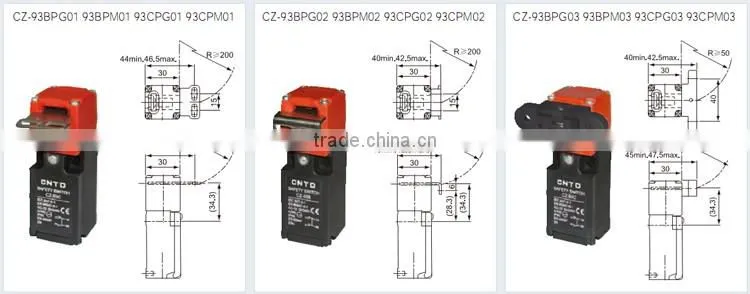

Appearance and Dimension

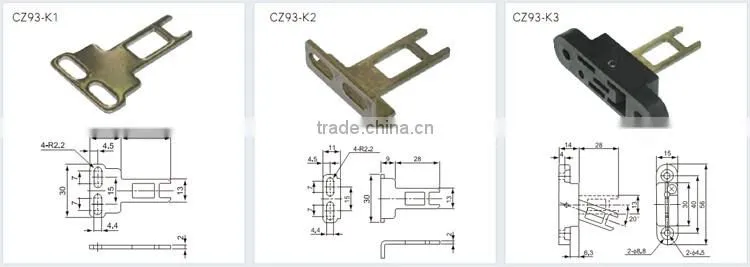

Key type and Dimension
Product characteristics
| Model No. | CZ-93 |
| Name | Safety Interlock Limit switch with Key |
| Operation speed | 0.1m/s-0.5m/sec |
| Operating frequency | 30times/min |
| Contact resistance | 25mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength |
AC2500V/Umip 4KV |
Shock |
Mechanical:10,000,000 operations/min Electrical: 150,000 operations/min |
| Rated insulation voltage(UI) | 400V |
| Short-circuit protective device | 10A fuse |
| Weight | About 76g |
| Degree of protection | IP65 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | TUV, CCC,CE,ISO9001 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
