PILLOW BLOCK BEARING DESCRITION
About Pillow block bearing:
Pillow block bearing (insert bearing with housing) is rolling bearing together with a bearing unit. Most of the spherical bearings are made of spherical and spherical bore with imported bearing mountedtogether.
1.Meanwhile, in the design of these bearings also have some-Mind, easy to install, has a dual structure of sealing device that can work in harsh environments.
2.Bearing is generally used cast molding.
Common blocks are vertical seat (P)
square blocks (F) Boss Square Block (FS)
Boss round seat (FC) Diamond-shaped seat (FL)
annular seat (C) Slide seat (T ), etc.
UCF203 PILLOW BLOCK BEARING
| Strusture | Pillow block bearing |
| Type | block bearing |
| Bore size | 17 mm |
| Outside Diameter | 86 mm |
| Width |
25.5 mm |
| Weight | 0.64 kg |
| Model number | UCF201 |
| Precision | P0-P6 |
| Seals type | Not |
| Clearance | C0,C2,C3,C4,C5 |
| Vabration | Z1,Z2,Z3,Z4 |
| Number row | single row |
| Application | chemical, semi-conductor,valve&pump,food,electonic |
UCF PILLOW BLOCK BEARING SERIES:
| Unit No. | Dimensions(mm) | ||||||||||
| d | a | e | i | g | l | s | z | t | B | n | |
| UCF201 | 12 | 86 | 64 | 15 | 12 | 26 | 12 | 33 | 37.5 | 31 | 12.7 |
| UCF202 | 15 | 86 | 64 | 15 | 12 | 26 | 12 | 33 | 37.5 | 31 | 12.7 |
| UCF203 | 17 | 86 | 64 | 15 | 12 | 26 | 12 | 33 | 37.5 | 31 | 12.7 |
| UCF204 | 20 | 86 | 64 | 15 | 12 | 26 | 12 | 33 | 37.5 | 34 | 14.3 |
| UCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 36 | 40 | 34 | 14.3 |
| UCF206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40 | 44.5 | 38 | 15.9 |
| UCF207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44 | 48.5 | 43 | 17.5 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51 | 55.5 | 49 | 19 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52 | 56.5 | 49 | 19 |
| UCF210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 55 | 59.5 | 52 | 19 |
| UCF211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58 | 63 | 56 | 22.2 |
| UCF212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 69 | 73.5 | 65 | 25.4 |
| UCF213 | 65 | 187 | 149 | 30 | 22 | 50 | 19 | 70 | 74.5 | 65 | 25.4 |
| UCF214 | 70 | 193 | 152 | 31 | 22 | 54 | 19 | 75 | 81.5 | 75 | 30.2 |
| UCF215 | 75 | 200 | 159 | 34 | 22 | 56 | 19 | 79 | 83.5 | 78 | 33.3 |
| UCF216 | 80 | 208 | 165 | 34 | 22 | 58 | 23 | 83 | 88.5 | 83 | 33.3 |
| UCF217 | 85 | 220 | 175 | 36 | 24 | 63 | 23 | 88 | 92.6 | 86 | 34.1 |
| UCF218 | 90 | 235 | 187 | 40 | 24 | 68 | 23 | 96 | 102 | 96 | 39.7 |
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.
Our plant shandong UMT has been working in the filed of bearing design and
manufacturing for more than 10years now is taking a leading position in mainland china.
Our plant has more than 500 employees , including 30 bearing professional techincians;
more than 600 new bearing items can be completed each year.
we can produce all kinds of bearing as customer's requirement.

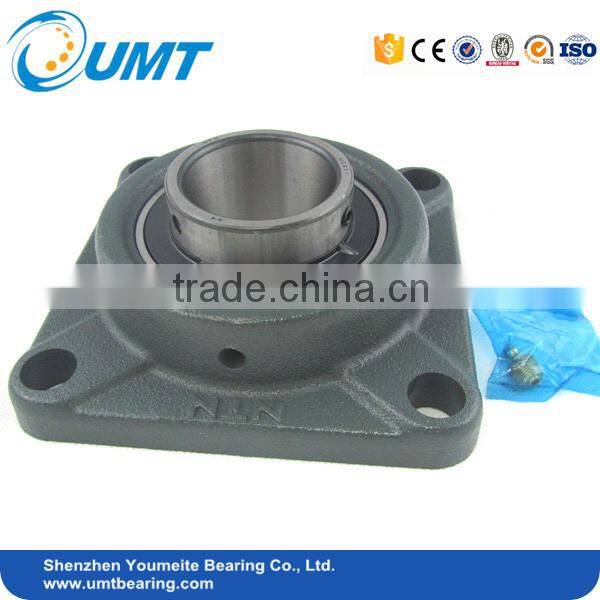

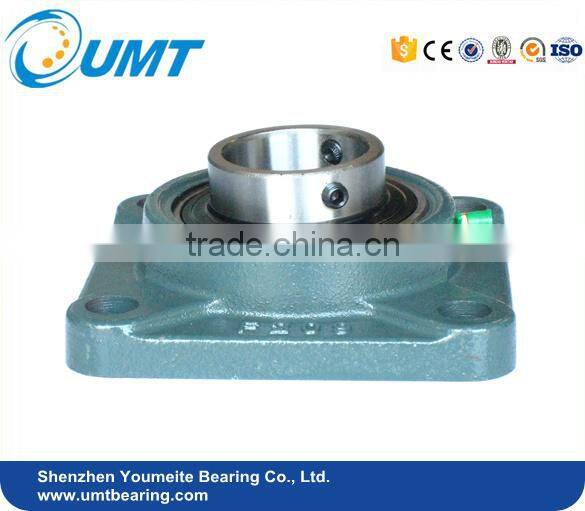

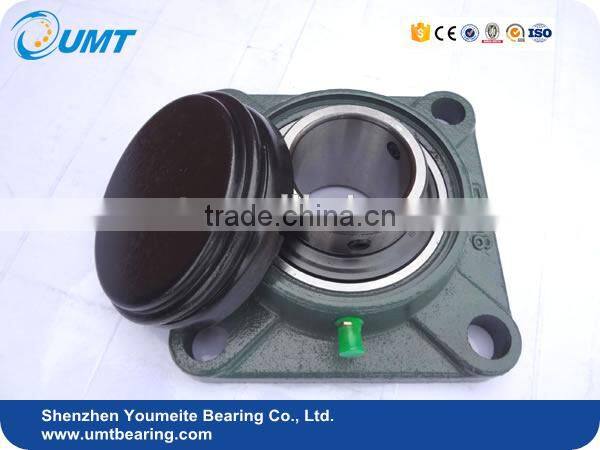

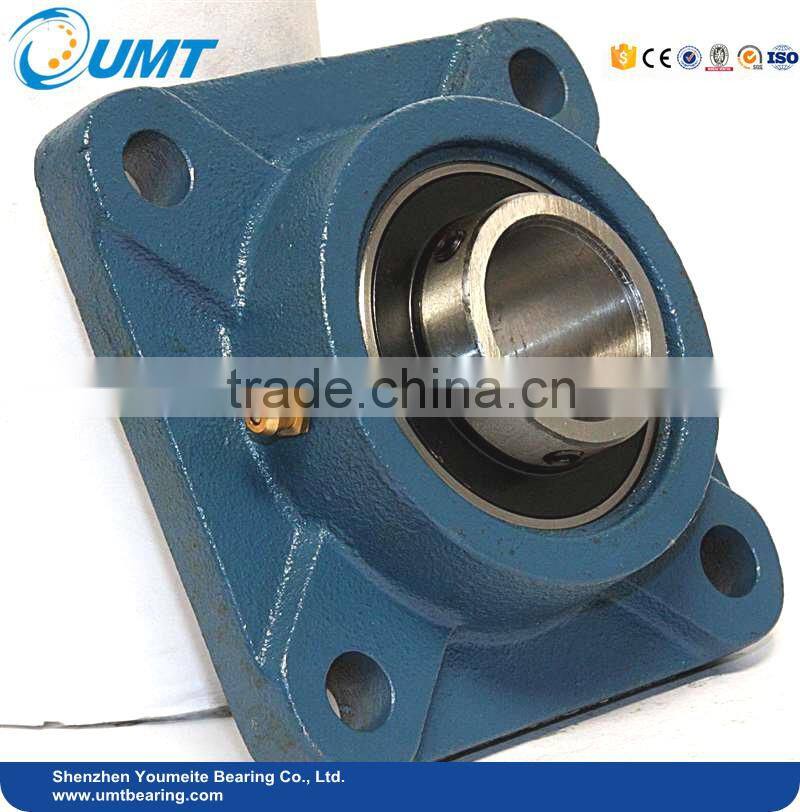

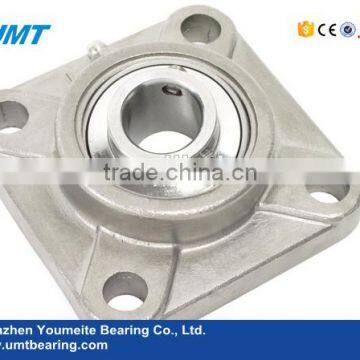

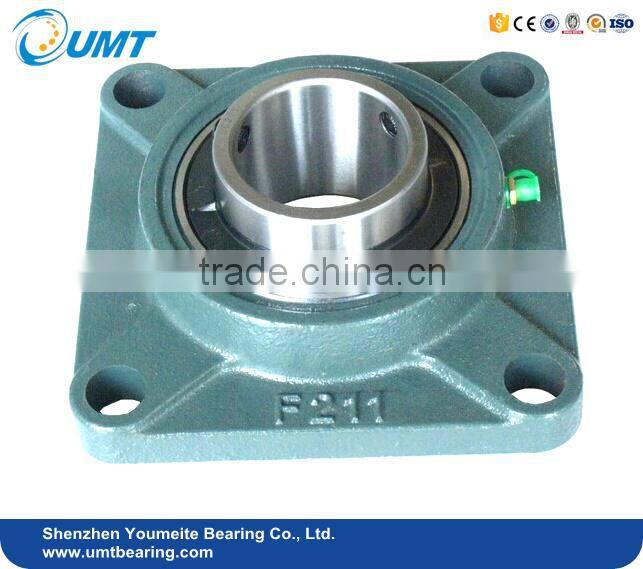

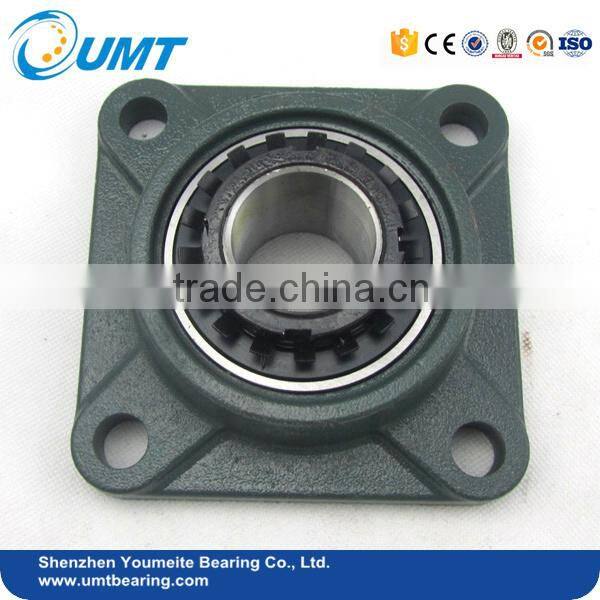

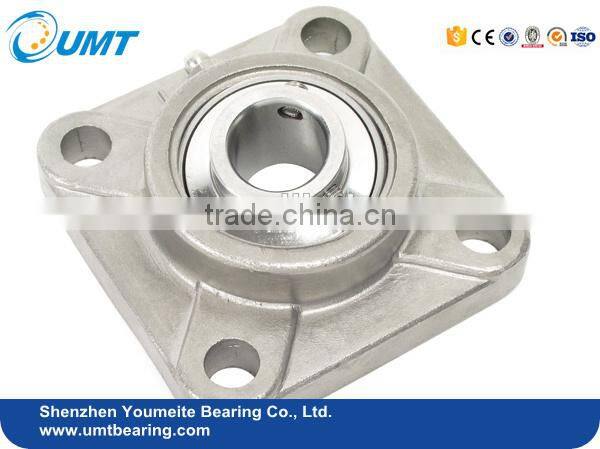

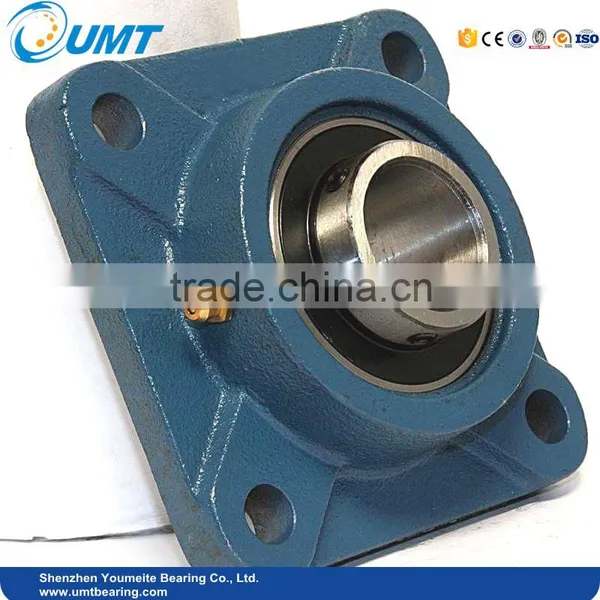

PILLOW BLOCK BEARING PICTURE
MAKING A BEARING PROCESS
OUR PACKAING
OUR CERTIFICATE
Q : Why choose us ?
a.With background of about 10 years
b.Strict Inspection ,and the best quality price with reasonable price bearings provided .
c.OEM service provided.
d. Delivery products from our factory warehouse , delivery time is short .
e. After sale service at any time .
Q: What kind of bearing you producted ?
main products are deep groove ball bearing , spherical roller bearings , tapered roller bearing ,thrust ball bearing ,others could be special made for you .
Q:What brand you could provided ?
A: our brand is HQBF , we also offer OEM service .
Q:Your product certifications ?
A: ISO 9001:2008 , ISO 9001:2000
Q: Delivery Time ?
A: 7-15 days ,also base on your order quantity
Q: Payment Terms ?
A: Usually we accept T/T ,and also accept L/C ,western union ,and order online
Q: Loading Port ?
A: Shenzhen China , as your appointed .
