Bearings with housings

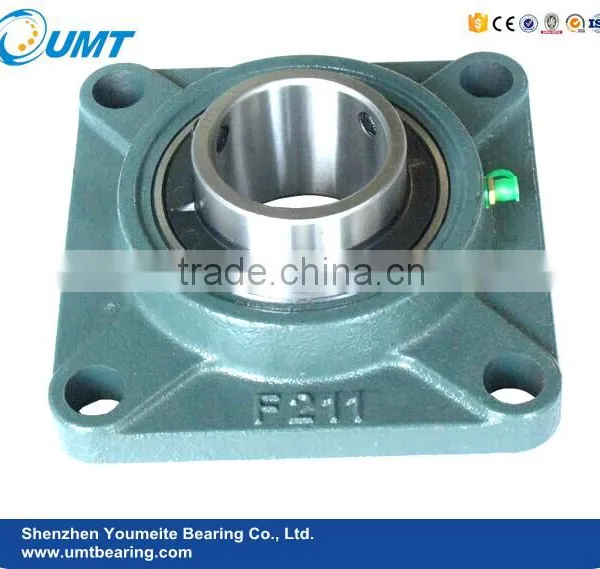

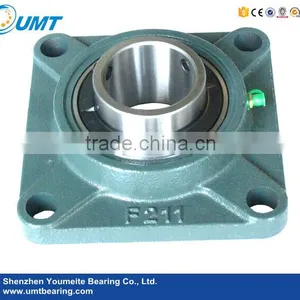

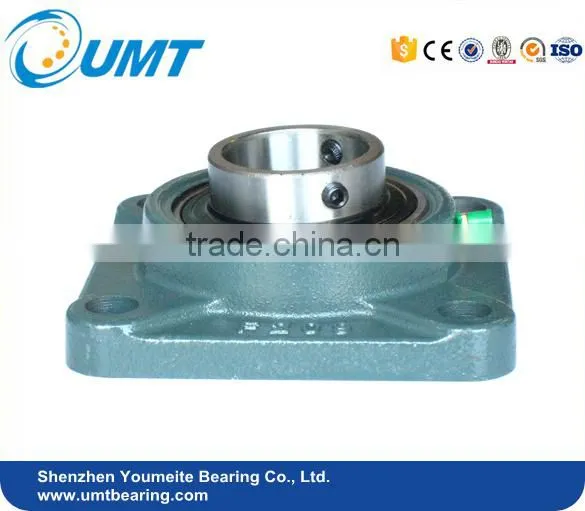

Flange type pillow block ubc bearings with housings UCF315
ubc bearings with housings
1.Higher rated load capacity
2.Pillow block bearing light weight yet strong housing
3.High quality
Pillow block bearing is a kind of bearing that looks like a small ball bearing that has a casting pedestal or a pressed steel plate and a double seal.
If you will look closely inside it, you will see that the pillow block bearings is very much the same as the other kinds of bearing like the deep groove ball bearings.
The only difference is that is you will look closely at the outer ring of the pillow block bearings, you can see that it has section balls which is best use with the concave part of the bearing pedestal.
Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry.
These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments.
However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world.

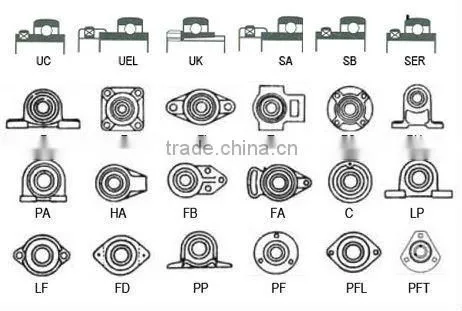

pillow block bearings are included many different types, included UCP, HCP, UCLP, UKP, UCPX and UKPX series. UCF 315 is flanged types,these such as UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL and UCFT series.
UCF315 flange type bearing housing comes in various shapes and styles such as square, round and rhombus flange types.
The another type is take up units type, such as UCT, HCT and UKT series.
The technical data sheet for pillow block bearings UCF315,
Type:America Pillow block bearings UCF315
Outer diameter D (mm) 82 mm
Diameter d (mm) 75 mm
Thickness B (mm) 236 mm
Bearing No. UCF315
| New model | Old model | ID | OD | T (mm) |
New model | Old model | ID | OD | T (mm) |
| (mm) | (mm) | (mm) | (mm) | ||||||
| UB201 | 90201 | 12 | 40 | 22 | UC208 | 90508 | 40 | 80 | 49.2 |
| UB202 | 90202 | 15 | 40 | 22 | UC209 | 90509 | 45 | 85 | 49.2 |
| UB203 | 90203 | 17 | 40 | 22 | UC210 | 90510 | 50 | 90 | 51.6 |
| UB204 | 90204 | 20 | 47 | 25 | UC211 | 90511 | 55 | 100 | 55.6 |
| UB205 | 90205 | 25 | 52 | 27 | UC212 | 90512 | 60 | 110 | 65.1 |
| UB206 | 90206 | 30 | 62 | 30 | UC213 | 90513 | 65 | 120 | 65.1 |
| UB207 | 90207 | 35 | 72 | 32 | UC214 | 90514 | 70 | 125 | 74.6 |
| UB208 | 90208 | 40 | 80 | 34 | UC215 | 90515 | 75 | 130 | 77.8 |
| UC201 | 90501 | 12 | 40 | 27.4 | UC216 | 90516 | 80 | 140 | 82.6 |
| UC202 | 90502 | 15 | 40 | 27.4 | UC217 | 90517 | 85 | 150 | 85.7 |
| UC203 | 90503 | 17 | 40 | 27.4 | UC218 | 90518 | 90 | 160 | 96 |
| UC204 | 90504 | 20 | 47 | 31 | UC220 | 90520 | 100 | 180 | 108 |
| UC205 | 90505 | 25 | 52 | 34.1 | UC305 | 90605 | 25 | 62 | 38 |
| UC206 | 90506 | 30 | 62 | 38.1 | UC306 | 90606 | 30 | 72 | 43 |
| UC207 | 90507 | 35 | 72 | 42.9 | UC307 | 90607 | 35 | 80 | 48 |
SERVICE: OEM,
Our company has been in the line of bearing for many years, having professional technical directors and sales, and years of bearing export experience. We have a professional and team-work team. We sincerely want to cooperate with buyers all over the world. Welcome friends come to our company for a visit.
