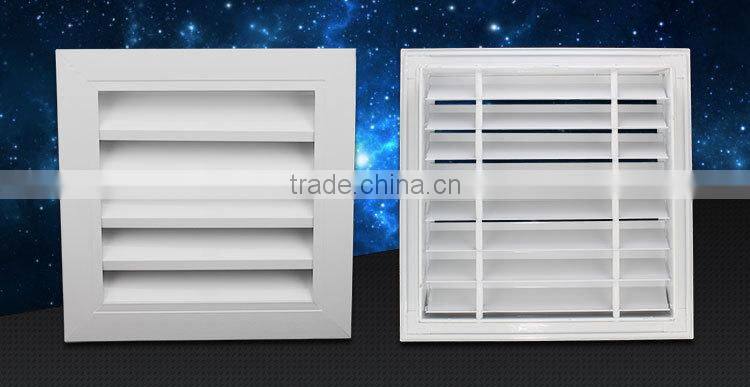

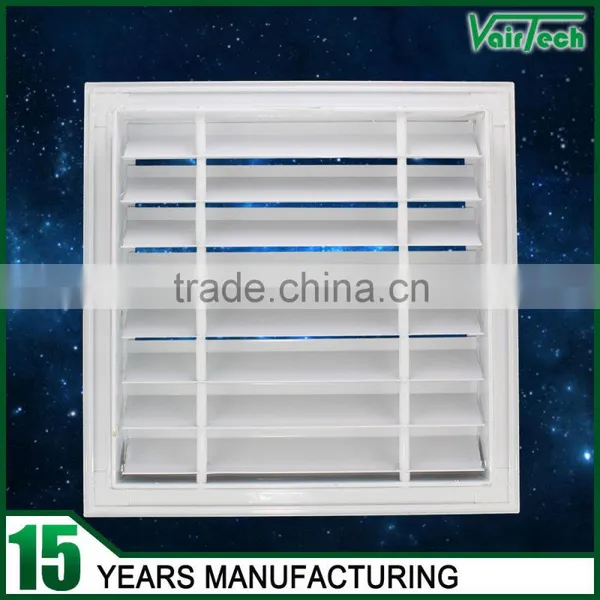

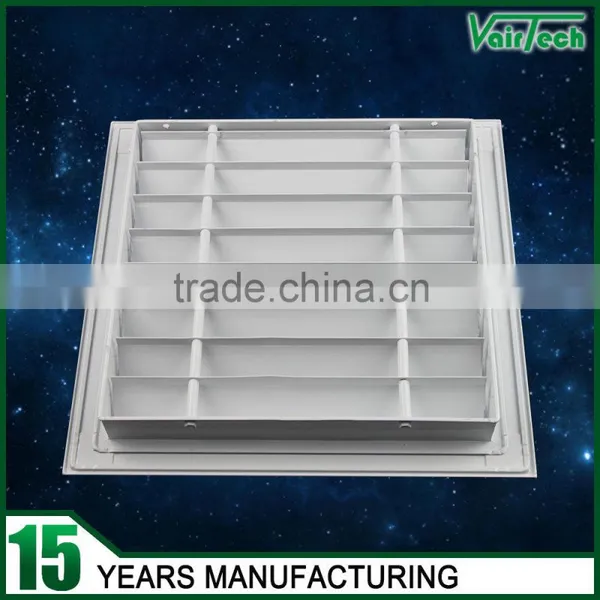

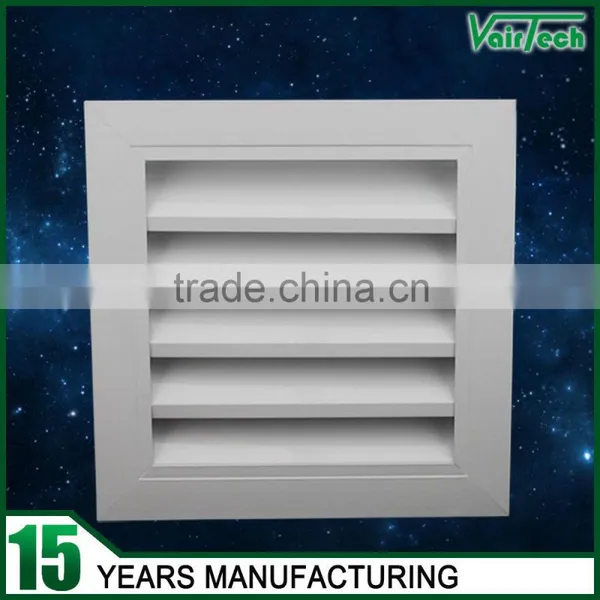

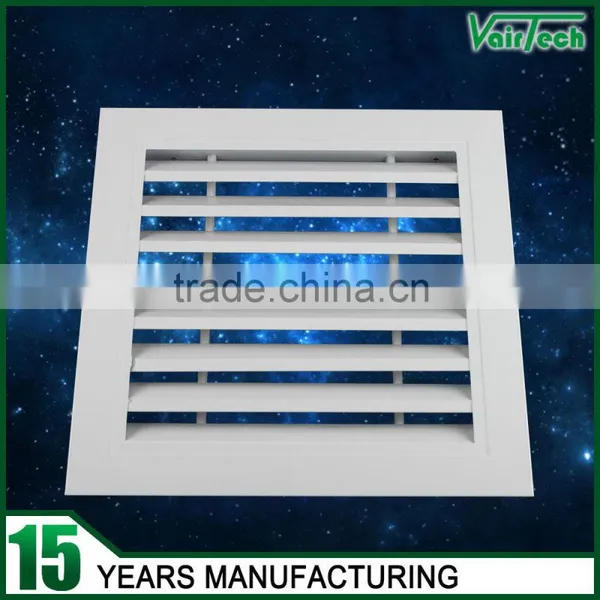

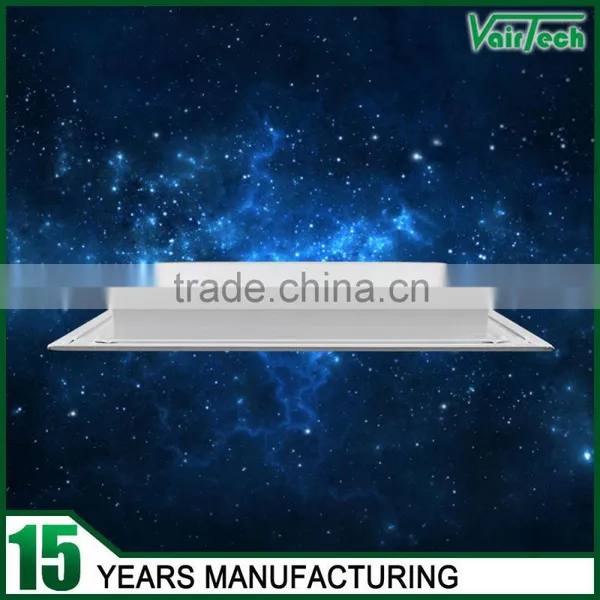

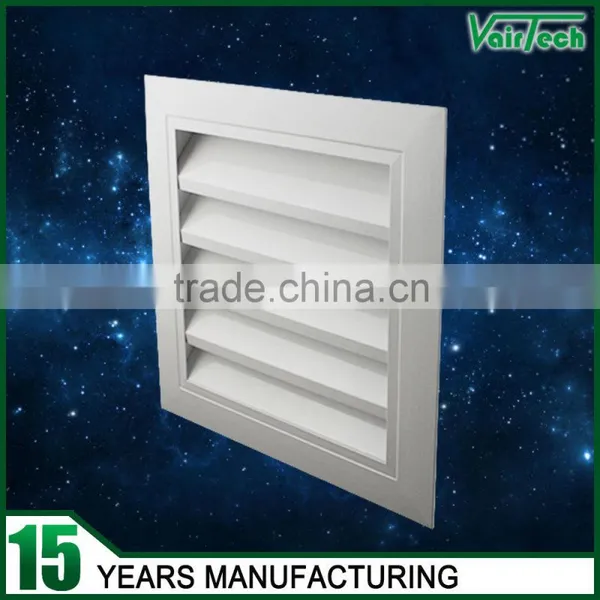

air conditioning aluminum vent window louver
Construction:
- Frame : High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
- Blades : Aerofoil blades in 45° from aluminum profile
- Blades spacing: 25mm as standard
- Support pipe: 8mm diameter aluminum pipe
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- The blades is fixed to the frame by rivets and support pipe, which assure the quite, smooth and rattle free operation.
- Blades are set at angle of 45° with 12mm spacing, and fixed to the frame.
Details:
- Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
- Material thickness: 0.8mm, 1.0mm, 1.2mm for option
- Accessory: Air Filter, OBD(Opposed Blade Damper)
Size:
- Any size available
- Overall face size = Neck size + 55mm
Standard size:
W×H (mm×mm) |
W×H (mm×mm) |
W×H (mm×mm) |
W×H (mm×mm) |
W×H (mm×mm) |
150×150 |
300×200 |
400×150 |
500×150 |
650×100 |
200×100 |
300×250 |
400×200 |
500×200 |
700×250 |
200×125 |
300×300 |
400×250 |
500×250 |
750×100 |
200×150 |
350×125 |
400×300 |
500×300 |
750×150 |
250×100 |
350×150 |
400×400 |
500×350 |
750×200 |
250×125 |
350×200 |
450×100 |
500×400 |
750×250 |
250×150 |
350×250 |
450×150 |
600×125 |
900×150 |
250×200 |
350×300 |
450×200 |
600×150 |
900×200 |
250×250 |
350×350 |
450×450 |
600×200 |
1000×200 |
300×100 |
400×100 |
500×100 |
600×250 |
1200×150 |
300×125 |
400×125 |
500×125 |
600×300 |
Packaging & Shipping
Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.
"Customer first, quality first" ---We are sincerely welcome you to contact us for business.
