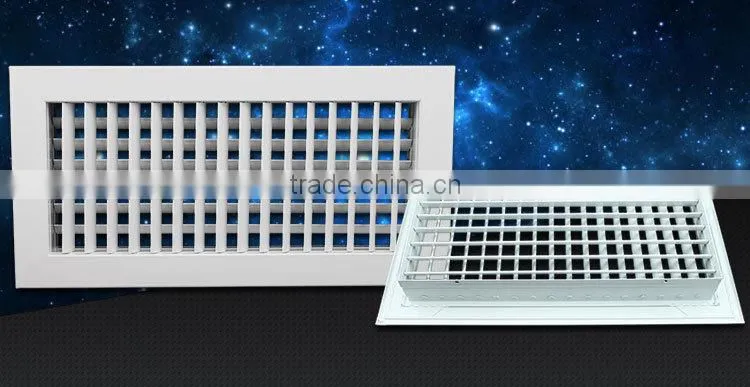

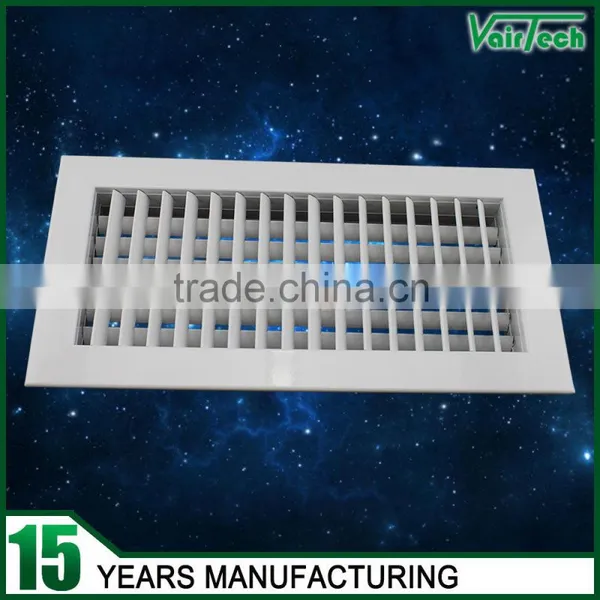

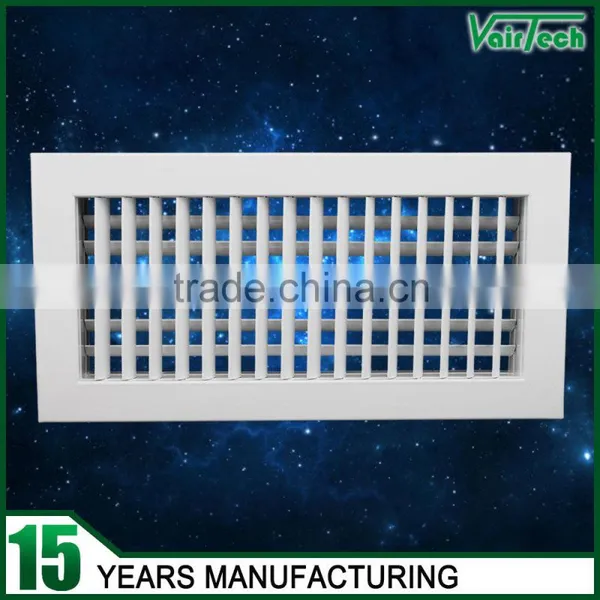

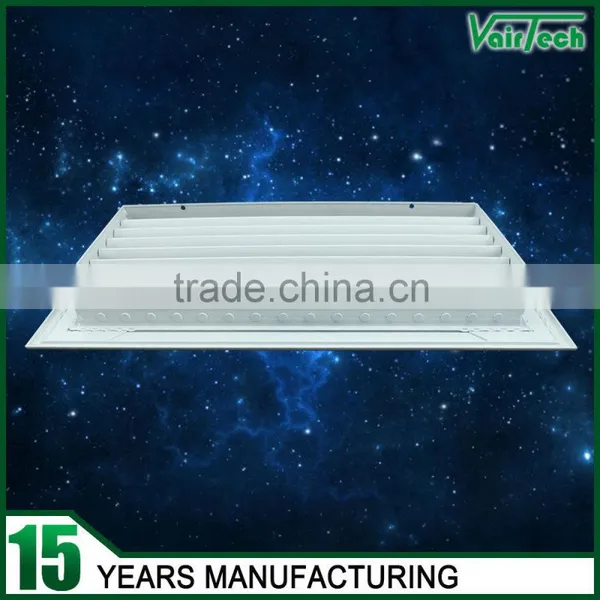

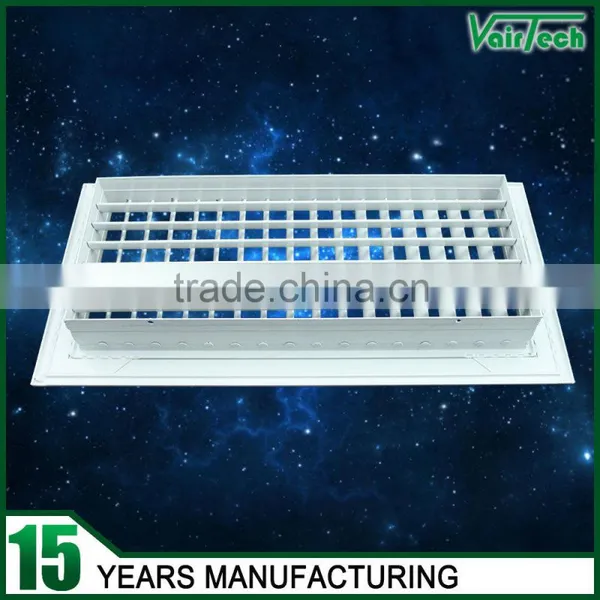

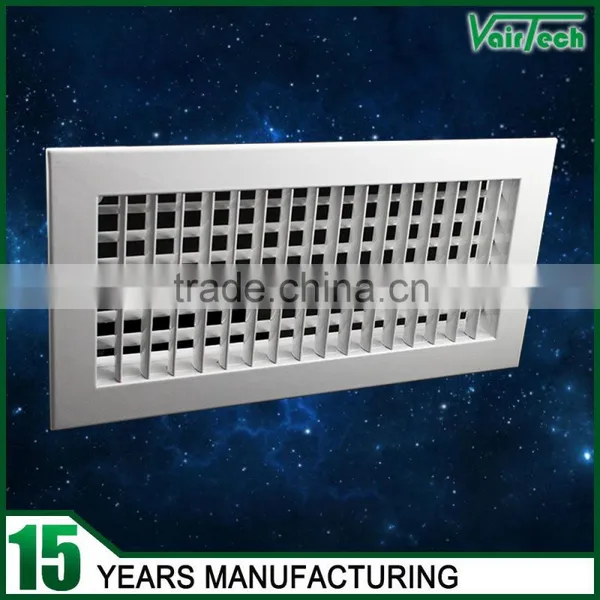

Hvac Ceiling Air Conditioner Grille Ventilation Grille Design
US$ 5 - 15
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Vairtech
Model Number:
DDG-A2 ventilation grille design
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou / Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hvac System Return Air Louver GrillUS$ 3 - 10MOQ: 10 Pieces -
Hvac System Aluminum Return Air LouverUS$ 3 - 10MOQ: 10 Pieces
-
Aluminum Fixed Air Grille for VentilationUS$ 3 - 8MOQ: 10 Pieces
-
Aluminum Return Air Grille for Ventilation SystemUS$ 3 - 8MOQ: 10 Pieces
-
Return Air Grille for Air Ventilation SystemUS$ 3 - 8MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Vairtech
Model Number
DDG-A2 ventilation grille design
Type
HVAC Systems
Product Description
Construction:
- Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange
- Blade: Aerofoil blades from aluminum profile
- Blade spacing: 20mm as standard
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- Grilles have two sets parrallet blades,
DG-AV: vertical on the front and the horizontal at the rear,
DG-AH: horizontal on the front and the vertical at the rear
- Blades can be adjusted mannually and individually to provide air deflection in both horizontal and vertical planes.
- Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.
Surface Finish:
- Powder coated color finish as per RAL color
standard color: RAL9016, 9010
- Natural anodized aluminum finish
Material thickness:
0.8mm, 1.0mm, 1.2mm for option
Surface Finish:
- Any size available
- Overall face size = Neck size + 50mm
- Standard size:
Item |
Neck size |
Face size |
DDG-P |
200x200 |
250x250 |
DDG-P |
400x200 |
450x250 |
DDG-P |
600x200 |
650x250 |
DDG-P |
600x300 |
650x350 |
DDG-P |
1000x300 |
1050x350 |
Packaging & Shipping
Company Information
Vairtech Ventilation Co.,Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Naihai, Foshan, Guangdong. We enjoy transportation & raw material convenience.
