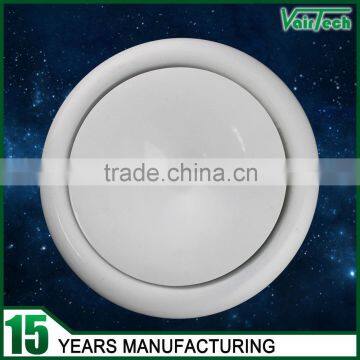

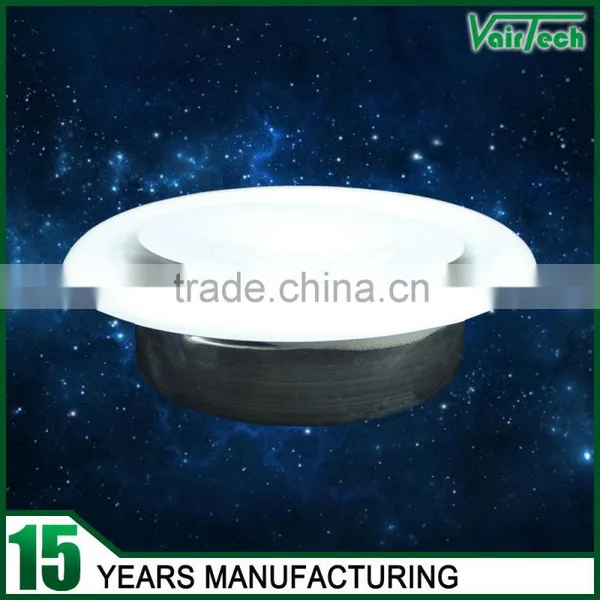

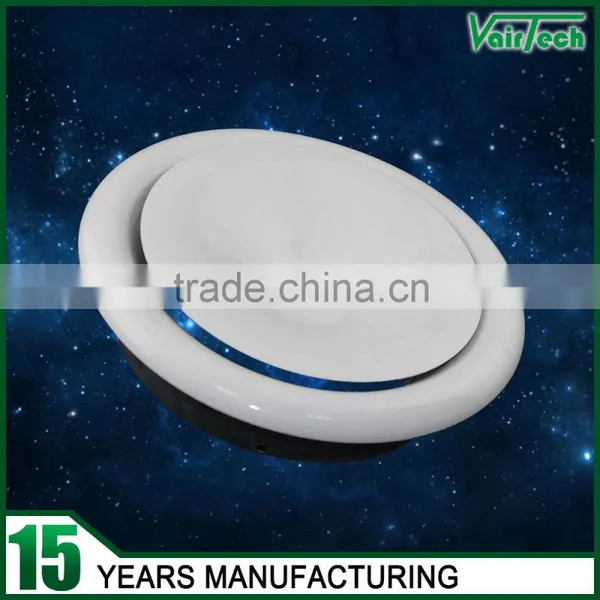

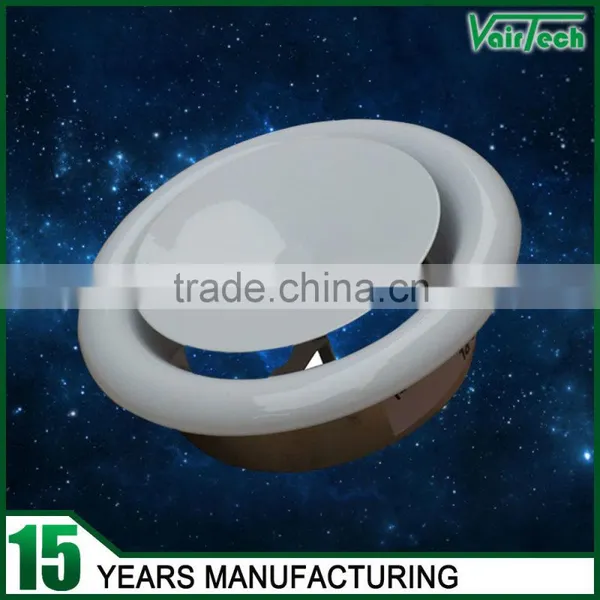

Help CenterHvac Aluminum Ceiling Air Vent Disc Valve
Related Products
-
Hvac Waterproof Stainless Steel Vent CowlUS$ 2 - 8MOQ: 500 Pieces -
High Quality Waterproof Aluminum Air Exhaust GrilleUS$ 3 - 8MOQ: 50 Pieces
-
Air Conditioning Air Volume Contorl DamperUS$ 5 - 20MOQ: 200 Pieces
-
High Quality Round Floor Air DiffuserUS$ 3 - 9MOQ: 50 Pieces
-
Air Conditioning Aluminum Linear Slot DiffuserUS$ 3 - 20MOQ: 10 Pieces
Construction:

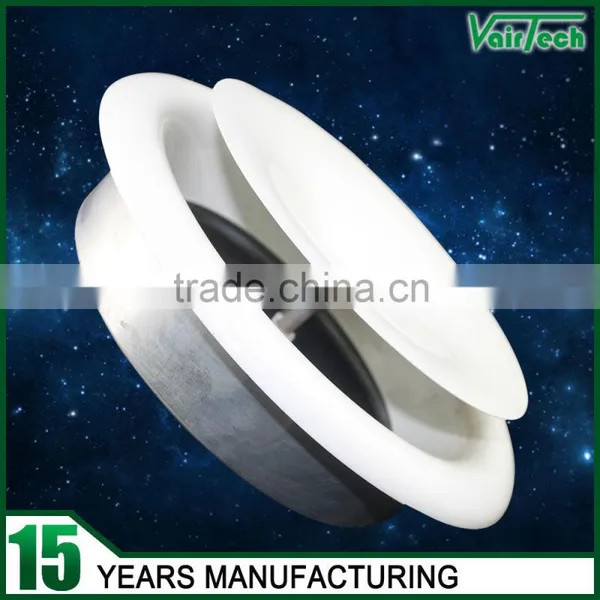

l Panel, Cylinder and Disc: High quality galvanized sheet.
Description:

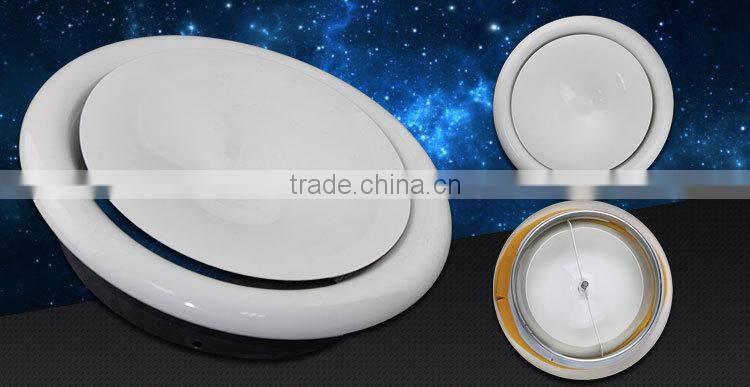

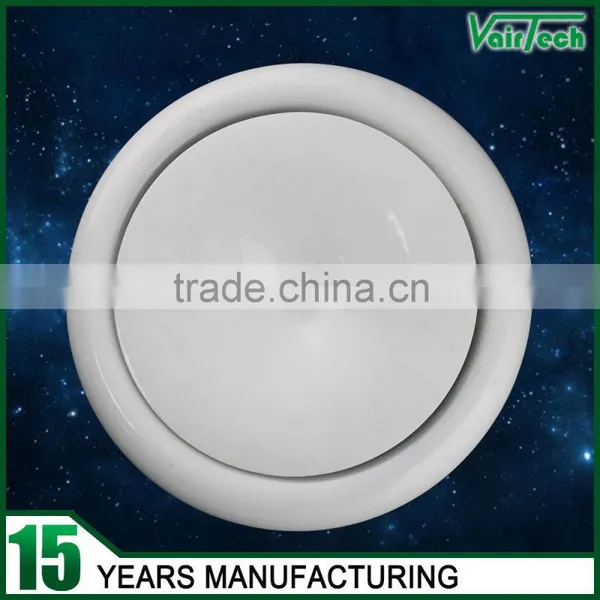

l The frame & disc are high quality galvanized sheet construction with powder coating of RAL colors.
l Disc is fixed to the frame by threaded rod.

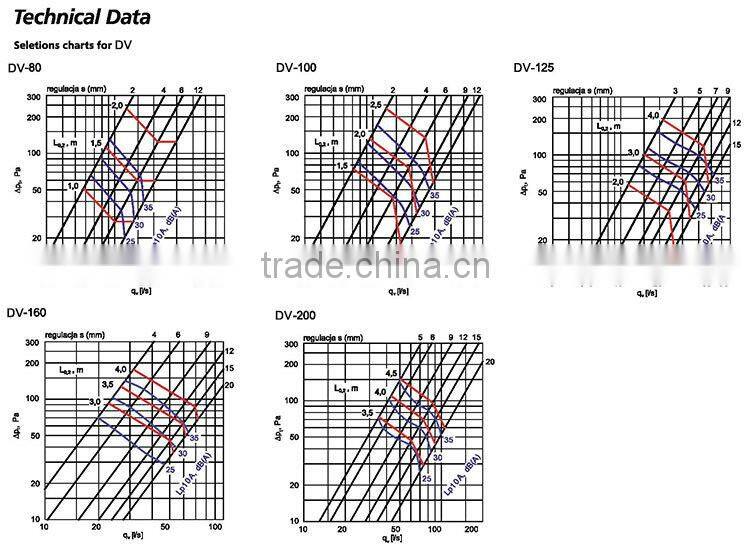

l Air flow can be adjusted by regulating the cone up and down(+A or -A).

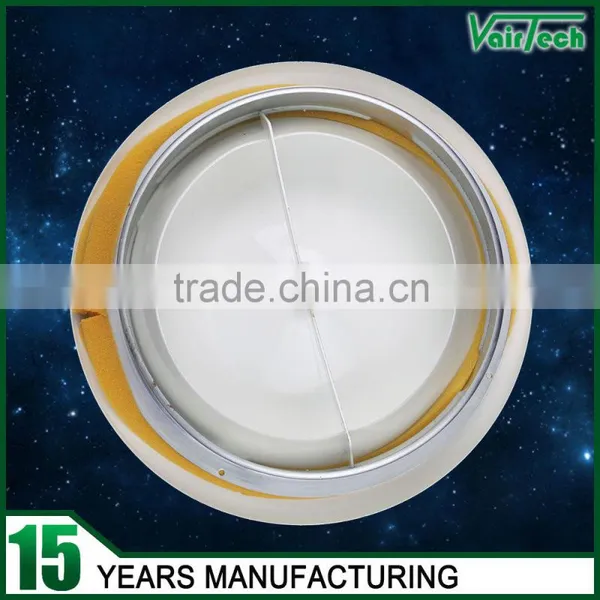

l Foam gasket is sealed around the back of the frame to avoid the air leakage.
l Disc valves are best suited to air distribution systems handling relatively low air flow rates within small circular duct work. It is recomm-ened for air supplying of small space,exha-ust of greasy and damp air in damp areas such as toilets, bathrooms and kitchens.
l It can be mounted in the wall, ceiling or exposed to air ducts with mounting rings.
Surface Finish:
l Powder coated color finish as per RAL color. standard color: RAL9016

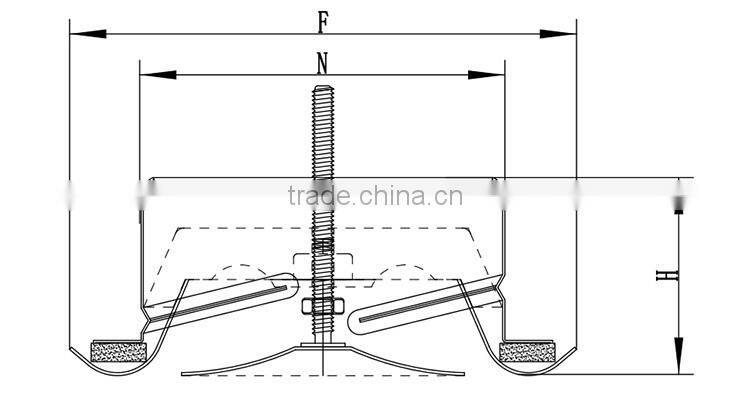

Size:
Item Code |
Neck |
Face |
H |
DV-S-100 |
98 |
138 |
46 |
DV-S-125 |
123 |
165 |
46 |
DV-S-150 |
148 |
200 |
46 |
DV-S-160 |
158 |
210 |
46 |
DV-S-200 |
198 |
250 |
46 |
Vairtech Ventilation Co.,Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Naihai, Foshan, Guangdong. We enjoy transportation & raw material convenience.
