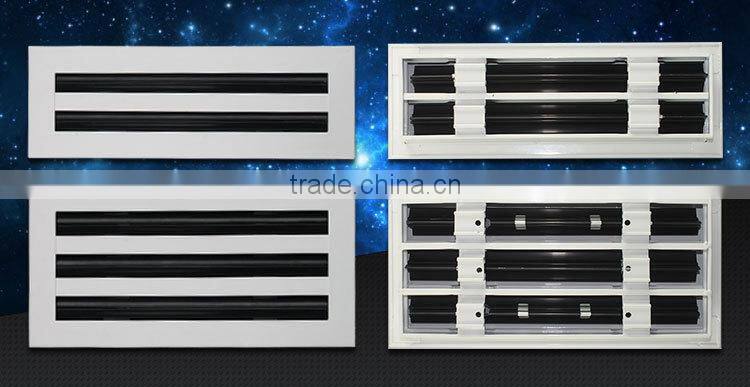

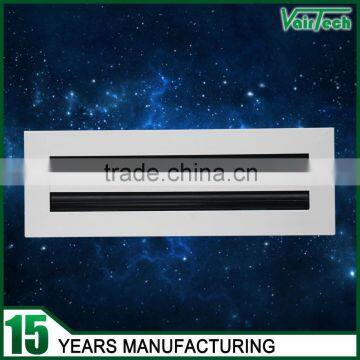

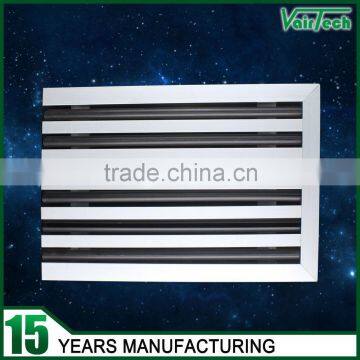

Air Conditioning Aluminum Linear Slot Diffuser
Construction:
- Frame & blades : High quality extruded aluminum alloy(A6063) profile with 28mm flange.
- Slot Width: 20mm
- Length: up to 4 meters available in single piece
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

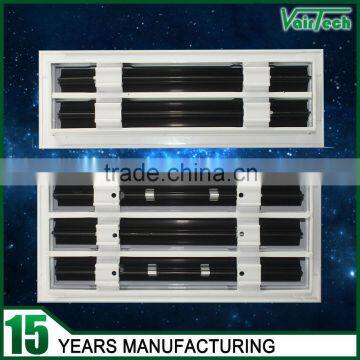

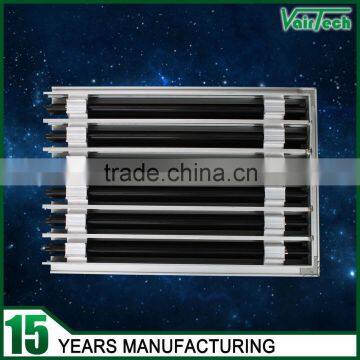

- Air distribution can be changed vertically or horizontaly by means of deflection blades without changing the air flow rate. The black blades can be fully adjusted from face opening.
- Any total length can be available through combining sigle piece without end by bridge connector.
Details:
- Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010, Natural anodized aluminum finish
- Material thickness: Frame: 1.3mm; Blades: 1.0mm
Size:
- Any size available
- Over face size= Neck size +35mm
Item Code |
Slots |
Neck Size =B(mm) |
Face Size =A(mm) |
Slot width= W1 (mm) |
LS-B1 |
1 |
40 |
75 |
20 |
LS-B2 |
2 |
79 |
114 |
20 |
LS-B3 |
3 |
118 |
153 |
20 |
LS-B4 |
4 |
157 |
192 |
20 |
LS-B5 |
5 |
196 |
231 |
20 |
LS-B6 |
6 |
235 |
270 |
20 |
LS-B7 |
7 |
274 |
309 |
20 |
LS-B8 |
8 |
313 |
348 |
20 |
Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.
"Customer first, quality first" ---We are sincerely welcome you to contact us for business.
