Help CenterSecurity Walkthrough Metal Detector Gate (XST-AP2)
Related Products
-
Walk-through Metal Detector Gate For Security (XST-A)US$ 370 - 480MOQ: 1 Set -
Pulse Induction Walk Through Body Scanner Metal Detector XST-LCDUS$ 614 - 724MOQ: 1 Set
-
Door Frame Walk Through Metal Detector(XST-A4)US$ 445 - 555MOQ: 2 Sets
-
Walk Through Metal Detectors Gate (XST-A2)US$ 415 - 525MOQ: 1 Set
-
Walk Through Metal Detecting Door(XST-A4) for SecurityUS$ 445 - 555MOQ: 2 Sets
Specifications
Walkthrough metal detector manufacturer1.stock
2.Watertightness and fireproofing
3.Six zones
4.Audible and visual alarm
Walkthrough metal detector manufacturer (XST-AP2)
Features
- Made of high quality alloy and PVC synthetic material, Watertightness and fireproofing.
- Six detecting zones which overlapped each other are as tall as examinee, combine with alarm-LED on every zone. Show the position of target metal directly.
- Four emitters match with receivers opposite, eliminate detecting blind spots.
- Sensitivities can be adjusted: Each zone’s sensitivity can be adjusted from 1 to 100. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.

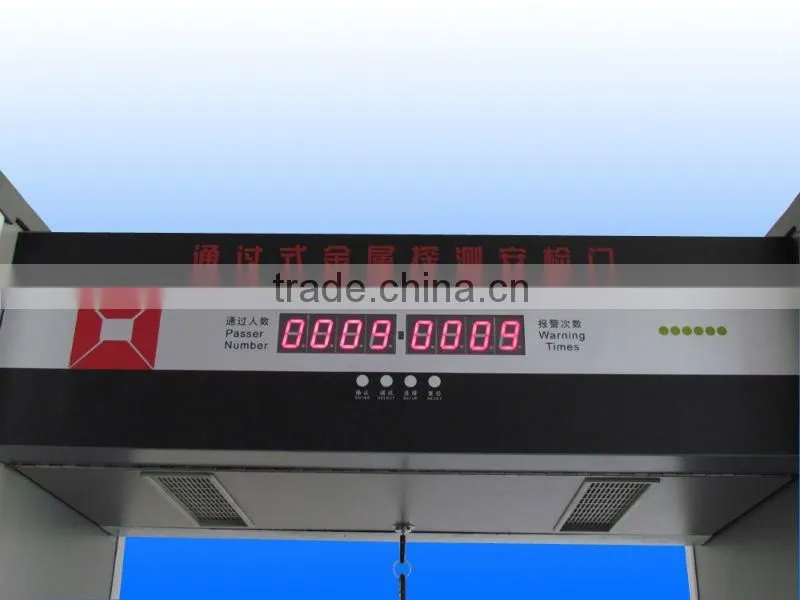

- The function of statistics: The number of passed examinees and the alarm times can be count.
- Parallel operation: The gate can not only work itself, but also work together with the same model (when parallel operate, the distance between each unit must more than 40 cm), so that it can meet the demand of big visitor flow rate.
- No harm to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes, etc.
- Installed conveniently: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
- Protected by password: Only the authorized person can operate it.
- Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.
Technical Parameters
Power Supply: 220V/AC
Power: <30V
External Dimension: 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension: 2000mm(H)*700mm(W)*550mm(D)
Work environment: -20°C- +45°C
Standard: GB15210-2003<WALK THROUGH METAL DETECTOR>
Standard
One Main Case One Left Probe One Right Probe
One Power Line Eight Screws
One Instruction (Including one Certificate of Quality & Guarantee Repair List)
Accessories Purchased
Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.
Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.
Storage Battery: Maintain the gate working for about 4 hours after charged.
Application
1. Places which should be security examined. Such as airport, customs, harbor, station, etc.
2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.
3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.
4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry, coinage line , etc.
5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater, ballroom, bar, KTV, etc.
6. Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.
Examining Standard
Electrical Equipments standardized by EN60950.
Radiation standardized by EN50081-1.
Anti-inference standardized by EB50082.
Execute the standard of National Standard of Metal Detector
PS: Coin Standard: The gate can detect one coin with out inference.
