New design walk through/archway metal detector with 18 zones detecting area
Easy Assembly
The XST-F18's modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 8 (eight) screws and 3 (three) internal electrical connections.

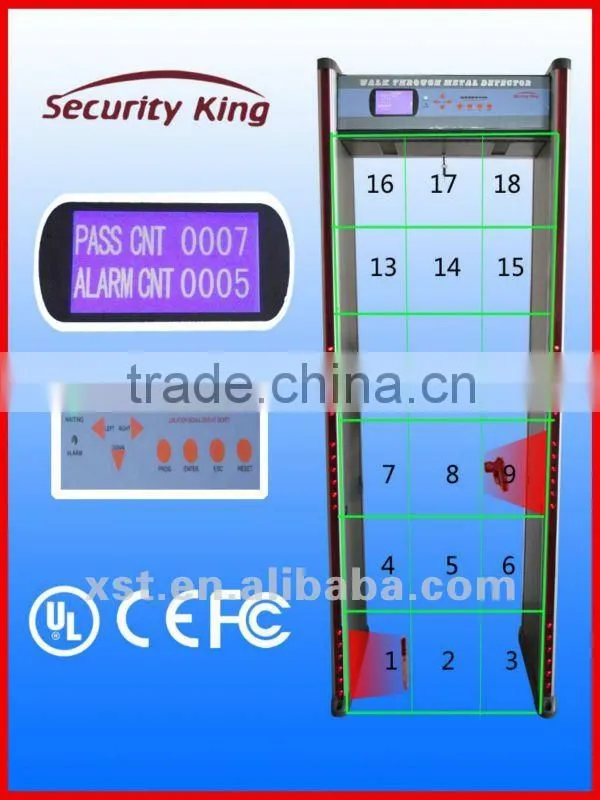

18 Distinct Pinpoint Detection Zones
The XST-F18 offers exclusive multiple target pinpointing with 18 distinct zones for full target coverage on the left, center and right side of the body from head to toe.
Entry Pacing Lights
Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel.

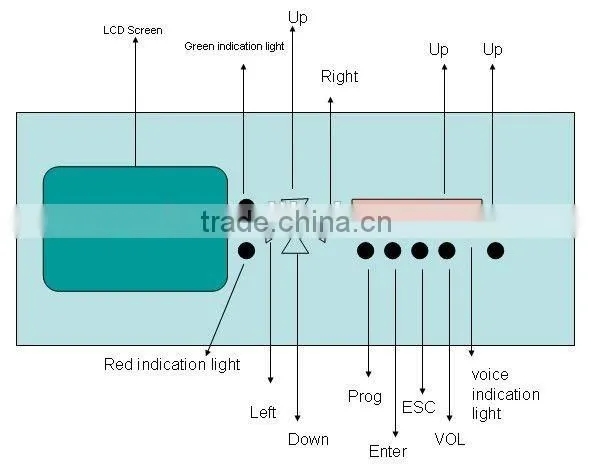

Overhead Control Unit
LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
Multi-dimensional Coil Design
The XST-F18's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.
Audible and Visual Alarms
Audible alarm and Visual LED lights signal when a target has been detected.
1.Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
2.The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
3.Multi-dimensional coil design (18 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
4.Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
5.Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
6.Durable, IP 55 weather-proof construction.
Specifications:
-
Operating Temperatures
-4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing -
Power
Fully automatic 100 to 240 V/AC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE standards. - Weatherproofing / Foreign Object Protection Standards
-
Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics. -
Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum. -
Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices. -
Traffic Counter
Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage. -
Synchronization
Dual channels and DSP circuitry allow several XST-F18's to operate simultaneously in close proximity to one another. -
Interference Suppression
Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources. -
Alarms
Audible tone and volume adjustable. Bright LED visual alarm. -
Target Pinpointing Lights
18 distinct zones are displayed with 2 independent columns of LED's located on exit side of XST-F18. -
Pacing Lights
International symbols -
Warranty
Limited 12 months, parts and labor
Technical Parameters | |
Power Supply |
220V/AC |
Power |
<30w |
External Dimension |
2200mm(H)*820mm(W)*550mm(D) |
Passageway Dimension |
2000mm(H)*700mm(W)*550mm(D) |
Work environment |
-20°C- +45°C |
Standard |
GB15210-2003<WALK THROUGH METAL DETECTOR> |
Standard configuration | |
Main Case |
ONE Unit |
Left Probe |
ONE Unit |
Right Probe |
ONE Unit |
Power Line |
ONE Unit |
Screws |
Eight Unit |
Instruction |
ONE Unit (Including one Certificate of Quality & Guarantee Repair List) |
Package | |
Main Case |
0.755m*0.485m*0.255m (Carton) |
Probe |
2.27m*0.62m*0.19m(Carton) |
Total Volume |
0.361CBM |
G.W |
70kg (Approx.) |
Application:
Airports
Correctional Facilities
Public Buildings
Private Buildings
Schools
Special Events
Loss Prevention
Nuclear Facilities
Transportation Terminals
Courthouses
Corporate Security
Historical Landmarks
Accessories Purchased
Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.
Remote Control:Control the gate within 10 meters, when paralleled the control distance should be shorter.
Storage Battery:Maintain the gate working for about 4 hours after charged.

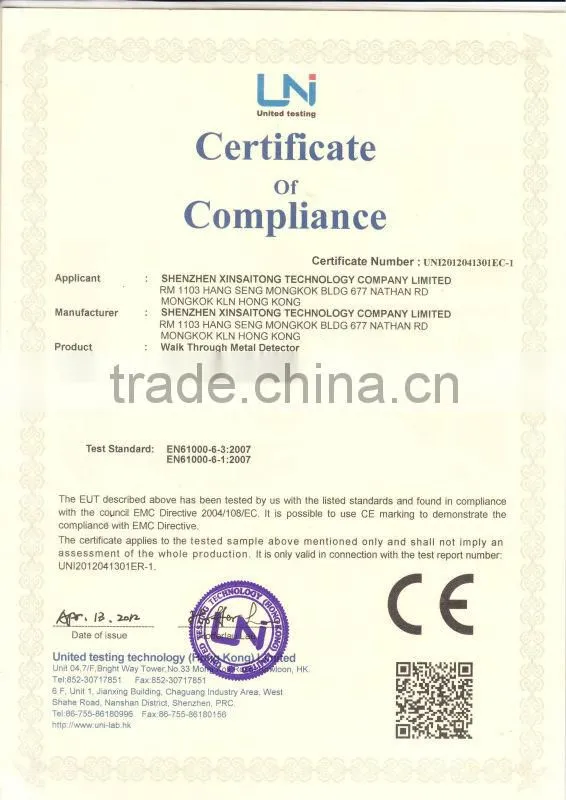

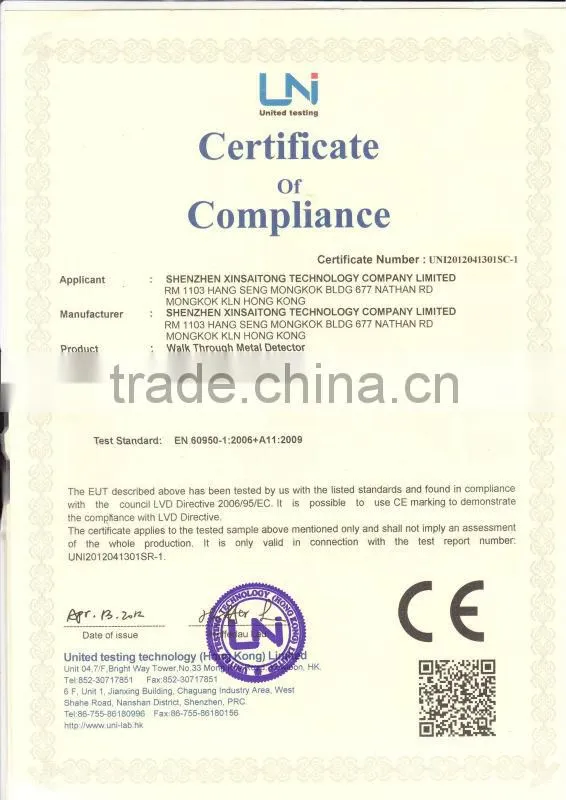

Examining Standard
Electrical Equipments standardized by EN60950.
Radiation standardized by EN50081-1.
Anti-inference standardized by EB50082.
Execute the standard of National Standard of Metal Detector
Warranty:
(1)All products have been Strictly Quality Checked before packing.(2)All Products have been well packed before shipping
(3)One Year warranty is proviced for all models. we will bear maintenance cost during warranty period.(4)OEM Service ofference
Design service offered
Buyer label offered
Delivery:
(1)Sample and Min Order will be delivery within 2-3 working days after receipt of payment.(2)For order over 500 pcs of sustomized order, please contact our sales to make sure the current inventory
Payment:
T/T, Western Union, Moneygram ,Escrow,Paypal, trade assurance order
After-sales Service:
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
Transportation:
Transported by DHL, UPS, EMS, Fedex, Air freight,Sea Freight.
Shenzhen XinSaiTong Technology Company Limited is a high-tech enterprise, professional for designing, manufacturing, marketing, XST engineering, electronic security equipment on Security porducts.
Our Vision: Spread our band with high quality products, take the market with high quality products, competitive price and best after sale service, enlarge the company with invition. We keep updating and improving our products and developing new products to meet all the needs.
Our main products : handheld metal detectors, walk through metal detectors, under vehicle search mirrors and underground search metal detectors, X-ray inspection system and EAS. And our main markets are Eastern Europe, South America, North America, the Middle East, Africa and Southeast Asia. Until now, we have exported our products to more than 80 countries and districts .
Our products are widely recognized and trusted by lots of companies. We aim to achieve a win-win cooperation. We are waiting for you!
Q1: How To Order
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Q2: When will make delivery ?
A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of the deposit.
Q3: Do you support drop shipping?
A: Yes,your drop shipping is available.
