Specifications
1. Super slim design2. Top grade LED chip
3. High aluminour output
3. Energy saving up to 50%

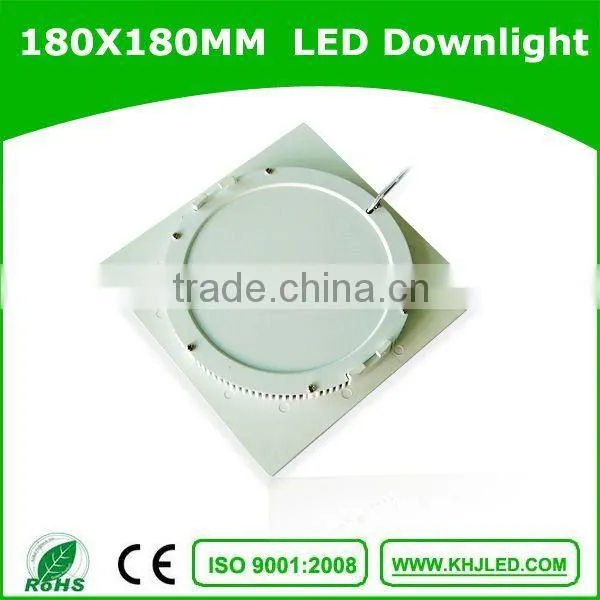

Product Image :
Specifications:
specs of optical |
light source |
90 pcs cool white 3528 LEDs |
luminous fluxΦ (lm) |
410 lm |
|
color temperature CCT(K) |
3800 to 5000 |
|
color render index(CRI) |
≥60 |
|
beam angle |
120° |
|
optical decay rate (%) |
<0.3% within 3000 hours |
|
service life (Hrs) |
≥50000Hrs |
|
specs of electric |
input voltage(V) |
100 ~ 240 Vac |
frequency scope (Hz) |
50/60 Hz |
|
input current (mA) |
150mA (@ 110Vac) |
|
total consumption (W) |
9W |
|
power factor (PF) |
0.9 |
|
starting time (S) |
≤1.2 S (@ 110Vac) |
|
withstand voltage |
3000Vac/1min |
|
specs |
material |
Aluminium, + PC cover |
dimension(mm) |
Φ180mm×180mm×18mm |
|
G.W(kg) |
5.5Kg |
|
N.W. (kg) |
6Kg |
|
Openning size |
165mm |
|
other specs |
working temperature/humidity |
-25°C ~ 50°C,10% ~ 90% R.H. |
storage temperature/humidity |
-40°C ~ 85°C,0% ~ 95% R.H. |
|
certificate |
CE CCC |
|
environmental protection |
RoHs |
our aging show :
Owning a individual aging house to make sure 36 hours' aging time .
Our factory show :
With advanced equiipment : automatic wave soldering tin machine, reflow machines, chip mounter to make sure the quick deliery
