Specifications
1. Super slim design2. Top grade LED chip
3. High aluminour output
3. Energy saving up to 50%

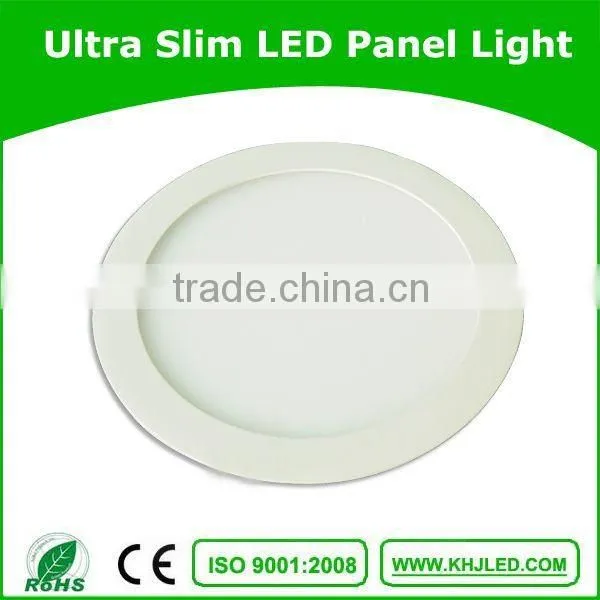

Product Image :
Specifications:
specs of optical |
light source |
120 pcs cool white 3528 LEDs |
luminous fluxΦ (lm) |
580 lm |
|
color temperature CCT(K) |
2700 to 3500 |
|
color render index(CRI) |
≥60 |
|
beam angle |
120° |
|
optical decay rate (%) |
<0.3% within 3000 hours |
|
service life (Hrs) |
≥50000Hrs |
|
specs of electric |
input voltage(V) |
100 ~ 240 Vac |
frequency scope (Hz) |
50/60 Hz |
|
input current (mA) |
150mA (@ 110Vac) |
|
total consumption (W) |
11W |
|
power factor (PF) |
0.9 |
|
starting time (S) |
≤1.2 S (@ 110Vac) |
|
withstand voltage |
3000Vac/1min |
|
specs |
material |
Aluminium, + PC cover |
dimension(mm) |
Φ240mm×18mm |
|
G.W(kg) |
6.5Kg |
|
N.W. (kg) |
7Kg |
|
Openning size |
225mm |
|
other specs |
working temperature/humidity |
-25°C ~ 50°C,10% ~ 90% R.H. |
storage temperature/humidity |
-40°C ~ 85°C,0% ~ 95% R.H. |
|
certificate |
CE CCC |
|
environmental protection |
RoHs |
Installation methods
Features
1)CE.ROHS
2)Wide range of input voltage: AC100-240V/DC24V
3)Instant start, no flickering, no humming
4)New high efficiency constant current driver,Special circuit design, each group of LEDs work separately,avoiding any problem of lighting output caused or influenced by single faulty LED
6)Green environmental protection, lead-free material, conforming to ROHS
7)No RF interference
Applications
Hotels ,Conference / Meeting rooms,Factories & Offices ,Commercial Purposes ,Residential / Institution Buildings,Schools, Colleges & Universities,Hospitals,Other Lighting
our aging show :
Owning a individual aging house to make sure 36 hours' aging time .
Our factory show :
With advanced equiipment : automatic wave soldering tin machine, reflow machines, chip mounter to make sure the quick deliery
