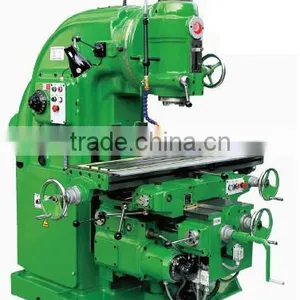

Small Vertical Turret Milling Machine
US$ 11500.00 - 12000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
amasun
Payment & Shipping
Payment Methods:
Port of Shipment:
NING BO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Milling MachineUS$ 11500.00 - 12000.00MOQ: 1 Set -
Mini Milling Machine for SaleUS$ 11500.00 - 12000.00MOQ: 1 Set
-
Universal Mini Metal Processing Milling MachineNegotiableMOQ: 1 Set
-
Turret Universal Milling Machine ManufacturerUS$ 14800.00 - 15000.00MOQ: 1 Set
-
Convention Turret Milling MachineUS$ 11500.00 - 12000.00MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
amasun
Model Number
X5032
Type
Vertical
CNC or Not
Normal
Voltage
380V
Power(W)
7.5KW
Dimension(L*W*H)
2530*1890*2380
Weight
3200kg
Certification
ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

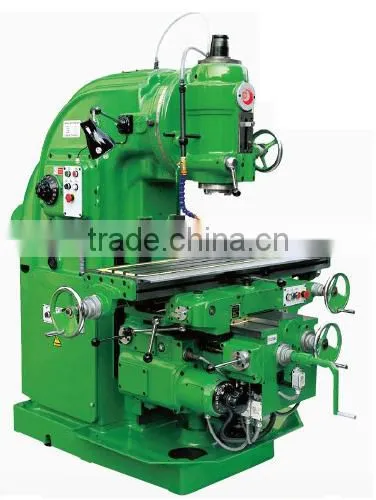

small vertical turret milling machine
| SPECIFICATIONS | X5032 |
| Distance between spindle nose and table | 45-415 |
| Distance between spindle and colomn (mm) | 350 |
| Spindle taper (mm) | 7:24 ISO50 |
| Spindle bore | 29 |
| Spindle speed (rpm)18 steps | 30-1500/18steps |
| Swovel angle of vertical milling head | ±45° |
| Spindle travel(mm) | 85 |
| Table size (mm) | 1325*320 |
Table travel (Z.Y.Z)(mm) |
720/700,255/240.370/350 |
| Tavle feed (Z.Y.Z)(mm/min) | 23.5-1180/23.5-1180/8-394 |
| Rapid speed of table (Z.Y.Z)(mm/min) | 2300/2300/770 |
| T-slots (NO :/width/pitch)(mm) | 3/18/70 |
| Main motor power (kw) | 7.5 |
| Rapid motor power (kw) | 1.5 |
| Overall size(mm) | 2530*1890*2380 |
| Net weight (kg) | 3200 |
