CNC Miller

Name: CNC Miller
Brand: tosunny
SKU: 107291337
Availability: InStock

US$ 29,000 - 37,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

tosunny

Taizhou Taisen Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name tosunny

Model Number XD40A

Type Vertical

CNC or Not CNC

Voltage 380V

Power(W) 15KW

Dimension(L*W*H) 2246*2372*2317 mm

Weight 4800kg

Certification ISO

Warranty One Year

After-sales Service Provided No overseas service provided

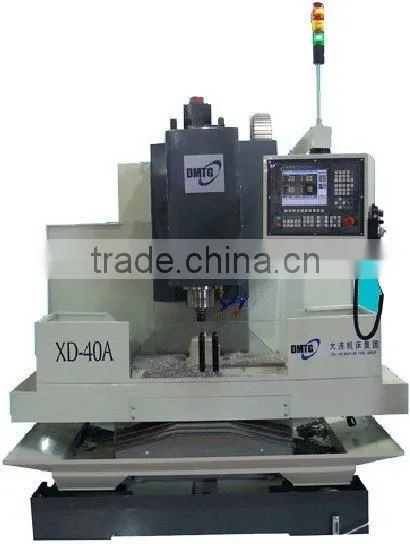

cnc milling machine XD-40A

XD-40A		parameters
Worktable size(length×width)		800×420 mm
Max. loading on table weight		500 kg
X travel		600 mm
Y travel		420 mm
Z travel		520 mm
Distance between spindle centerline to column		511 mm
Distance between spindle end to the worktable		150~670 mm
X,Y,Z cutting speed		0~10000 mm/min
X,Y,Z fast feed speed		24/24/20 m/min
Spindle speed range		60~8000 r/min (optional accessory can up to 10000)
Spindle bore hole		No.40 (7:24 )
Spindle power	FANUC α8/8000i	11/7.5 kW (70.5/47.7Nm)
	FANUC β8/10000i	11/7.5 kW (53.7/35.8 Nm)
	FANUC α12/10000i	15/11 kW (95/70Nm)
X,Y,Z servo motor power		3/3/4 kW (1.2/1.2/2.5 kW)
T-slot (geneva numerate×groove width×slot pitch)		3×1 8×125 mm
Positioning accuracy(national standard)		X,Z:0.020 mm Y:0.016 mm
Repeat positioning accuracy(national standard)		X,Z:0.008 mm Y:0.006 mm
Numerical control system		FANUC-oi
Pressure		0.5 MPa
Machine size(L×W×H)		2246×2372×2317 mm
Machine weight		4800 kg

Standard configuration of XD-40A

1	Workpiece cooling system	8	Rigid tapping
2	Working lamp	9	RS-232 connector and DNC function
3	Shield of X,Y,Z-axis	10	The anchor bolts and pad
4	Oil-water separator	11	Electrical boxes heat exchanger
5	Spindle gas curtain dustproof system	12	M30 Automatic power outages system
6	Automatic lubrication system	13	Tool box
7	Warning light
