Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Universal Mini Vertical Milling Machine

Universal Mini Vertical Milling Machine

Name: Universal Mini Vertical Milling Machine
Brand: TOSUNNY
SKU: 107291323
Availability: InStock

Universal Mini Vertical Milling Machine thumbnail-1

Universal Mini Vertical Milling Machine photo-1

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

TOSUNNY

Contact Supplier Request Quote Chat Now

Taizhou Taisen Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name TOSUNNY

Model Number X5035

Type Other, Vertical, Milling machine

CNC or Not Normal

Voltage 380V

Power(W) 7.5KW

Dimension(L*W*H) 2190*2010*2250mm

Weight 3200kg

Certification ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

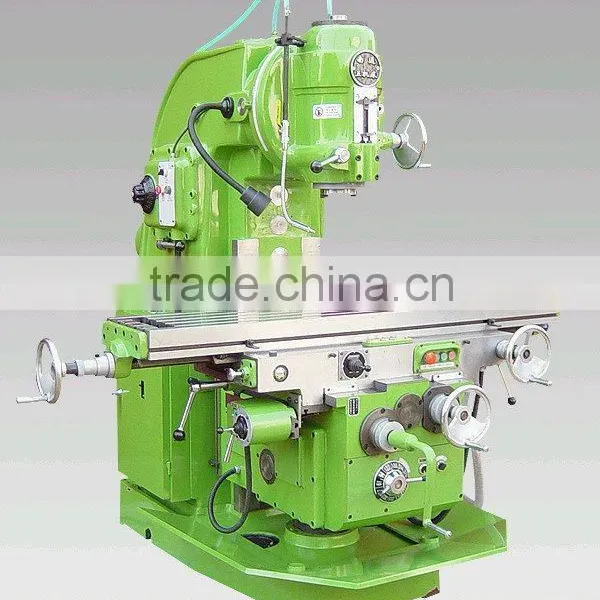

Milling machine

The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout (2 dimensional or 3 dimensional) .

Item	Parameter
worktable area(width*length):	3501600mm or 3502000mm
Max. longitudinal travel(manual)/(power)	1000/900mm or 1400/1300mm
Max. transversal travel(manual)/(power)	300/280mm
Max. vertical travel(manual)/(power)	430/400mm
T-slots(number of slot-width*pitch)	5-18*65mm
Distance between spindle to table surface	50-450mm
Spindle taper	7:24/ISO50
tool bar diameter	32-50mm
vertical milling head max. swivel angle	±45
Spindle axial travel	80mm
Spindle speed range	18steps :30-1500rpm
Milling head motor	7.5KW
Feed motor	1.9/1.3kw
coolant motor	0.125kw
Package size(L×W×H)	2190×2010×2250mm
Machine Weight	3200/3500kg

Standard Accessories	Optional
Milling-cutter Mandrel	dividing head
Wrench,Milling cutter Mandrel,wrench	milling chuck
Milling machine with the middle set of taper	machine vice
Milling drawbars,wrenches,Oil gun	rotary table
Nut,Foundation screw	Digital readout
