Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Place of Origin: | Zhejiang, China | Brand Name: | tosunny | Model Number: | CK7625 |
Product Description

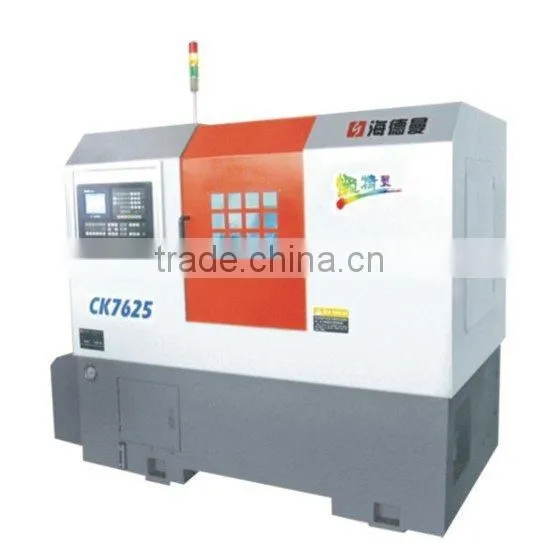

cnc lathe
With slant bed,the machines are characterized by features of easy chip emission,convenient operation, full protection,leakage free as well as attractive out-looking.With easy load and unload,the machines have rooms for robots to be installed.With resin casting bed,the machines are high in rigidity and vibration-proof.With high spindle speed, the machine can realize highspeed cutting for high productivity.With frequency converting motor as main drive , it is possible to realize constant line cutting speed for perfect surface gloss.With hydraulic-driven spindle chuck and circular oil tanks, this CNC machine has higher automation.precision rolling linear guideways are used in X and Z axis, bed saddle driven part is in the middle of the machine, it drives easily and do not produce side torque.32 X10 Precision Ball Screws are used in X and Z axis, which is with large-diameter, the pitch, The ball screw is connected with the servo motor, transmission is concise and accurate.This machine is suitable for large quantity cutting of disk parts, sleeve and short-axis type products, inner and outside thread surface, cone and sphere surface.
Specification | CK7625 | |||
General Capacity | Max.swing diam. over bed | mm | Φ250 | |
Max.length of workpiece | mm | 250 | ||
Max.swing diam. over drag board | mm | Φ80 | ||
Max.diam.of through-hole | mm | Φ34 | ||
Thread processing range | Metric | mm | 0.25-8 | |
Inch | tpi | 3-80 | ||
Chuck size (optional) | in | 6" | ||
Spindle speed | r/min | 300-3000 | ||
Main motor power | kW | 4 | ||
X/Z axis | Travel | X-axis | mm | 340 |
Z-axis | mm | 280 | ||
Max. travel speed (servo) | X-axis | mm | 8000 | |
Z-axis | mm | 10000 | ||
Drive motor torque(servo) | X-axis | mm | 6 | |
Z-axis | mm | 6 | ||
Turret | Type of turret |
| Gang type tool post | |
No.of tool | nos | 4-7 | ||
Tool cross section | mm | 20×20 | ||
Hydraulic system (optional) | Nominal pressure | Mpa | 2.5 | |
Capacity | L | 20 | ||
Hydraulic oil pump motor power | kW | 0.75 | ||
Guide automatic lubricating pump motor power(optional) | W | 5 | ||
Cooling pump motor power | W | 90 | ||
Others | Overall dimension (L×W×H) | mm | 2050×1150×1650 | |
Net weight (Approx.) | kg | 2200 |
