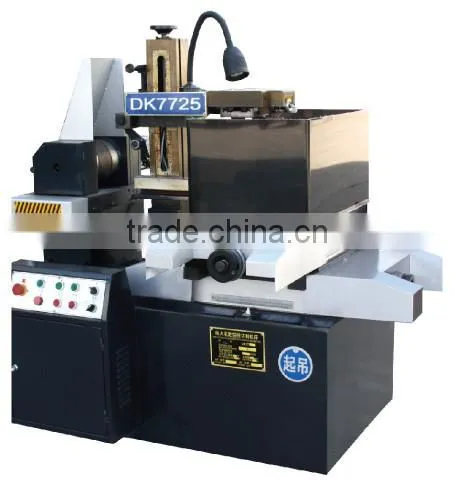

Help CenterProfessional Supplier Spark Erosion CNC Wire Cutting Machine DK7725
Related Products
-
Professional Supplier Spark Erosion CNC Wire Cutting Machine EDM DK7740US$ 6500.00 - 6600.00MOQ: 1 Set -
Single Cut Fast Speed Cnc Wire Cut Machine Edm Dk7750 for SaleUS$ 8100.00 - 8200.00MOQ: 1 Set
-
Wire Straightening and Cutting Machine 7763 for SaleUS$ 9690.00 - 10000.00MOQ: 1 Set
-
CNC Type Electrical Spark MachineUS$ 16000.00 - 16000.00MOQ: 1 Set
-
High Precision Spark Erosion MachineUS$ 16000.00 - 16000.00MOQ: 1 Set
Specifications
Wire cutting machine edm
wire edm cutting machine
High quality,High precision
Fast cutting speed
Reliable and stable
wire cutting machine edm for sale !!!
wire cutting machine edm -Features:
1.Large travel , High cutting speed.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.
wire cutting machine edm -Control system ( HL, HF, W-Cut, A-Cut)
A)Microcomputer process control system
B)PC control system.
C)Luxury cabinet control.
Optional:
1.Taper cutting accessory. (± 15°, ± 30°)
2.Linear rail.
3.Protection cover.
4.Higher speed control board, improve the efficiency 30-40%.
5.Middle speed control system.
Model |
DK7720 |
DK7725 |
DK7732 |
Working Table size (mm) |
490*380 |
580*400 |
700*440 |
Stroke(X/Y/)(mm) |
250*200 |
320*250 |
400*320 |
Max.Z axis travel(mm) |
350 |
350 |
400 |
Cutting angle(°/80mm) |
6° |
6° |
6° 15° |
Max.cutting speed(mm²/min) |
≥90(High speed≥140) |
||
Optimum roughness(m) |
≤2.5(Medium speed≤1.0) |
||
Molybdenum wire diameter(mm) |
0.10-0.20 |
||
Molybdenum wire moving speed(m/s) |
11.5 |
||
Working coolant |
dedicated working fluid(DX-1.DX-4.NG-1) |
||
Process Accuracy (mm) |
GB7926-2005 |
||
Feeding Pulse equivalent (mm) |
0.001 |
||
Power supply |
220V/50Hz,three phase, 380V/50Hz |
||
Power consumption(Kw) |
<1.0 |
||
piece weight(kg) |
200 |
250 |
300 |
Weight(kg) |
800 |
900 |
1200 |
Dimension(m) |
1200x900x1300 |
1300x1200x1400 |
1300x1200x1400 |
Packing size(m) |
1300x900x1400 |
1400x1200x1500 |
1600x1300x1700 |
