EDM Machine
- NINGBO
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Zhejiang, China | Brand Name | TOSUNNY | |
| Model Number | D-7130 | Voltage | 380V | |
| Power(W) | 1000w | Dimension(L*W*H) | 1400*1200*2100mm | |
| Weight | 1500kg | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

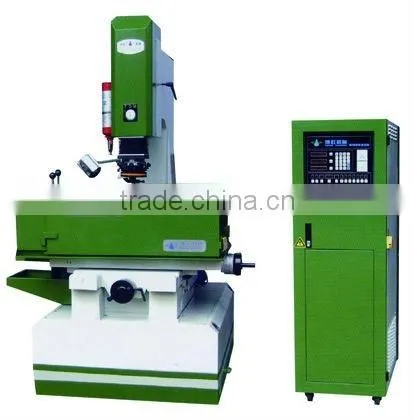

EDM Machine D-7130,which adopts high precision DC servomotor with the funtion of PCC hand wheel,it is easier to remove the machine;D-7130 also adopts the prepressing high precision ball screw,with good rigidity.
Specifications:
items
| unit | D-7130 |
Working table
| mm | 300*450 |
Working groove
| mm | 850*550*320
|
X axis travel
| mm | 300 |
y axis travel
| mm | 200 |
z axis travel
| mm | 200 |
Chief axis connect board to working table
| mm | 580 |
Max.electrode weight
| kg | 50 |
piece weight
| kg | 300 |
Overall dimension of work fluid container
| mm | 1400*1200*2100 |
Net weight
| kg | 1200 |
Controller Specifications:
Items
| ZNC-EDM80A |
Max. machining current
| 80 |
Max. processing speed
| 500 |
Min. rate of electrode wear
| ≤0.2% |
Optinum roughness
| Ra<0.3 |
Max. power
| 9 |
Overall dimensions
| 540*800*1700 |
Net weight
| 200 |
