Specifications
| hot wire cutting machine |
Wire cutting machine edm
wire edm cutting machine
High quality,High precision
Fast cutting speed
Reliable and stable
wire cutting machine edm for sale !!!
wire cutting machine edm -Features:
1.Large travel , High cutting speed.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.
wire cutting machine edm -Control system ( HL, HF, W-Cut, A-Cut)
A)Microcomputer process control system
B)PC control system.
C)Luxury cabinet control.
Optional:
1.Taper cutting accessory. (± 15°, ± 30°)
2.Linear rail.
3.Protection cover.
4.Higher speed control board, improve the efficiency 30-40%.
5.Middle speed control system.
Model |
DK7740 |
DK7750 |

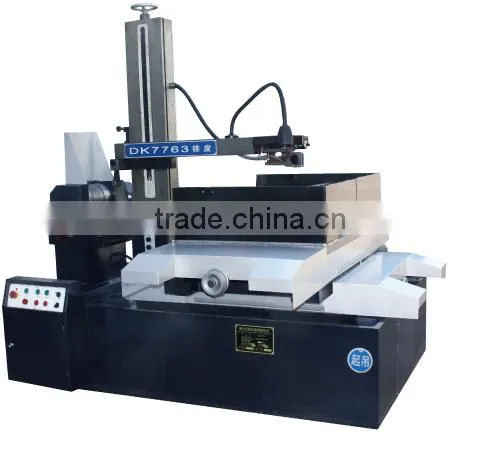

DK7763 |
Working Table size (mm) |
780*540 |
1000*650 |
1140*750 |
Stroke(X/Y/)(mm) |
500*400 |
630*500 |
800*630 |
Max.Z axis travel(mm) |
400 |
600 |
600 |
Cutting angle(°/80mm) |
6° 15° 30° |
6° 15° 30° |
6° 15° 30° |
Max.cutting speed(mm²/min) |
≥90(High speed≥140) |
||
Optimum roughness(m) |
≤2.5(Medium speed≤1.0) |
||
Dia. of molybdenum wire(mm) |
0.1-0.3( recommend 0.18) |
||
Molybdenum wire moving speed(m/s) |
11.5 |
||
Working coolant |
DX-1, DX-4, NG-1 |
||
Process accuracy (mm) |
0.01-0.015 |
||
Feeding Pulse equivalent (mm) |
0.001 |
||
Power supply |
single phase, 220V/50Hz, three phase, 380V/50Hz |
||
Power consumption( Kw) |
<1.0 |
||
piece weight(kg) |
450 |
700 |
1000 |
Weight(kg) |
1350 |
2100 |
3000 |
Dimension(mm) |
1600x1300x1500 |
1800x1600x1700 |
2100x1800x1800 |
Packing size(mm) |
1900x1400x1800 |
1900x1600x2100 |
2300x1800x2100 |
