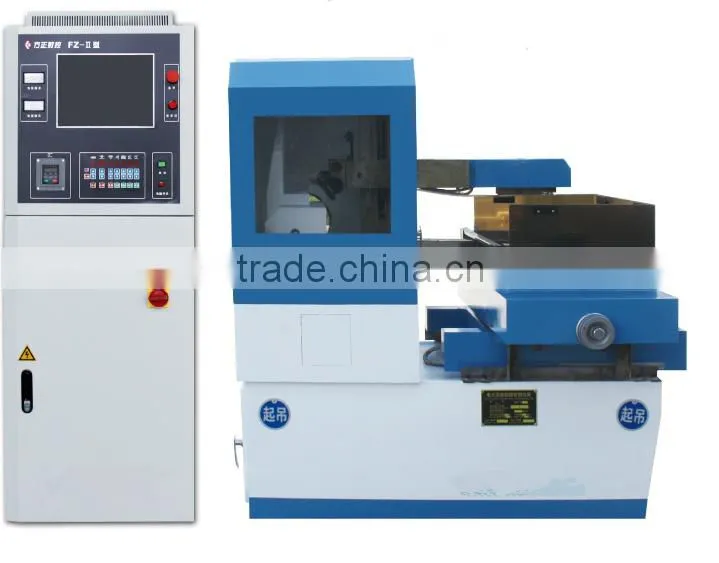

Help CenterChina Medium Middle Speed CNC Wire Cutting EDM Machine
Related Products
Middle speed CNC wire cutting EDM machine
Specifications
China edm wire cut machine lower price
Good stability and middle speed
Low consumption, material saving.
china edm wire cut machine lower price !!!
china edm wire cut machine -Features:
1.Linear rail, Four axes independent UV work,
2.Work pieces to 600mm thick.
3.Taper angle up to ± 30°.
4.Small wire diameters 0.12- 0.22 mm (down to 0 .08mm).
5.Accuracy: 0.01mm, even 0.005mm.
6.Roughness: Ra 0.8~1.6 µm
7.Low consumption, material saving.
8.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
9.Advanced CAD/CAM software with file transfer and translation capabilities.
10.Control system with luxury cabinet. ( HL, HF, W-Cut, A-Cut).
11. Enclosed cover for protection.
Optional:
Taper cutting accessory. (± 15°, ± 30°.)
Model |
FZH7732 |
FZH7740 |
FZH7750 |
FZH7763 |
Working Table size (mm) |
520×1000 |
550×1100 |
700×1800 |
850×2100 |
Stroke(X/Y)(mm) |
320×400 |
400×500 |
500×630 |
630×800 |
Max.cut thickness(mm) |
320 |
320 |
400 |
400 |
Stroke(U/V)(mm) |
(Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240 |
|||
Electrode diameter(mm) |
(Molydbenum wire) φ0.10~0.22 |
|||
Electrode moving speed(mm/sec) |
12,9,7,5,2 |
|||
Max.cutting angle |
(Max.multi-cut):±1.50/50mm; |
|||
(Max.once-cut):±30 D-±100 E-±180 T-±300/50mm | ||||
Positioning accuracy(mm) |
multi-cut: 10×10×30 (Square)≤0.006 (One time-cut)≤0.012 (Multi-cut)(Octagon)≤0.009 (Strightness)≤0.006/50mm |
|||
Process roughness(Ra.um) |
(Multi-cut):Ra≤1.2(Micro-pulsepower Ra≤0.8) (One time-cut):Ra≤2.5 |
|||
Driving motor |
Stepping motor or AC servo motor*(Optional) |
|||
Guide screw and track |
Precision ball screw/Linear motion guides |
|||
Tension system |
tension adjustable |
|||
Cooling |
Complex or water-dissovle special coolant/65L |
|||
Power supply |
AC3 φ -380v/2.5kva |
|||
piece weight(kg) |
450 |
600 |
1000 |
1200 |
Weight(kg) |
1500 |
1700 |
2600 |
3000 |
Dimension(mm) |
1200×1500×1850 |
1300×1600×1850 |
1800×1900×2000 |
2100×2100×2000 |
Remarks: Be reduce 100mm,due to targe taper device fixed. *-(Option); Linear scale(lum) | ||||
|
Remarks :Model 630/800 is not ristricted on the item,even others with large taper. | ||||
