2016 Hot Sale hot sales plate ice maker with stainless steel 304
- 100 Set / Sets per Month
- Fuzhou
- T/T L/C D/P D/A Credit Card PayPal
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 1t-50t/day, 1t 3t 5t 6t 8t 10t 15t 20t 25t per day | Place of Origin: | Fujian, China |
Brand Name: | CSCPOWER | Model Number: | P10-P500 | Ice Shape: | Other, plate ice |
Voltage: | 220V 240V 380V 400V 415V 440V | Power(W): | 5.25kw-75kw | Dimension(L*W*H): | 1900*1650*1700, all available |
Weight: | 890kg-4900kg | Certification: | Other, CE, ISO9001 | Warranty: | 15 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

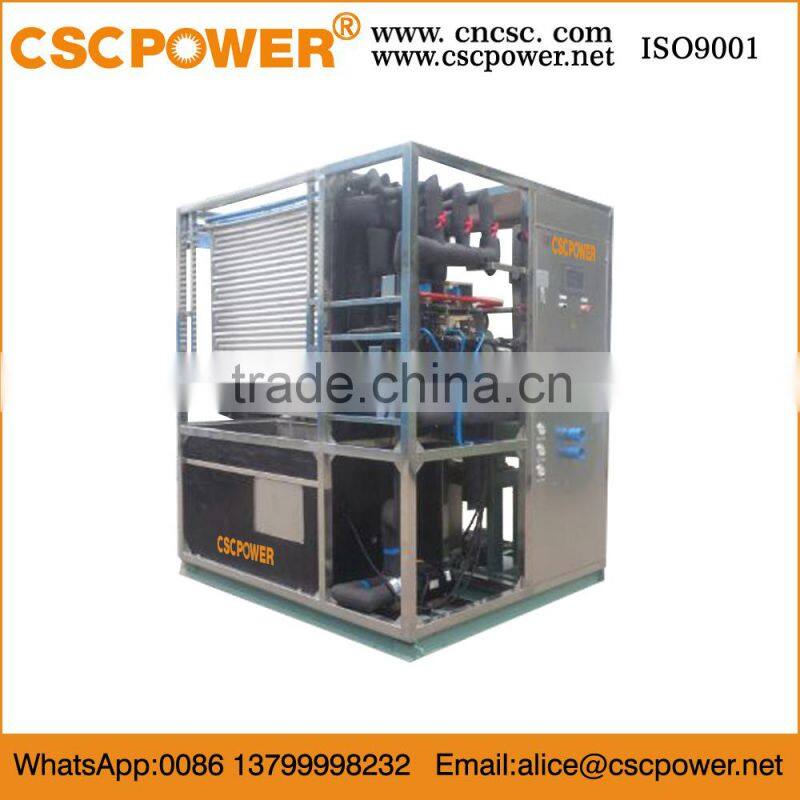

CSCPOWER Supply all kinds of ice machines
hot sales plate ice maker
1.plate ice machine features
plate ice:
1.Daily production capacity: 1 ton to 50 tons.
2.Electricity saving: energy saving can reach up to 30%,
3. just requires 65kw.h for producing one ton plate ice.
4.Industry-leading ice making evaporator: stainless steel material and it is “S” type.
5.Easy to operate: machine equipped with the touched and PLC control system.
6.Plate ice thickness ranges from 4mm to 15mm, it is adjustable.
Application fields:
Plate ice has the characteristic of great density, high cleanliness, large cool storage capacity and adjustable ice size, it has become increasingly important in industry, agriculture and fisheries.
Plate ice is applied to fishery production and aquatic product processing, long range fishing, transportation, meat processing, supermarket fresh display, food processing, medicine, chemical dyestuff, fermentation engineering, constructional engineering, concrete cooling engineering, mime cooling, ice storage project and paper-making industry ect.
2.Plate Ice making principle
Sprinkle the water uniformly over plates of evaporator, and let the water on the plates be frozen through the entering refrigerant medium. When the thickness of ice meets customers requires, it will stop supplying of water. Introduce the self-generated accumulation heat into the plates and cause the ice on the plates to fall freely.
It comes in irregular shapes, and its texture is dry, hard and transparent. Plate ice machine has a daily output from 1 tons to 200tons. The thickness of the ice: 6mm to 20mm.
This product is controlled by micro computer to supervise its running status and how the machine runs, very easy to install and operate with the text display. This kind of machine has a great advantage in energy saving.
3.Flake ice making machine Technical parameters:
Model | Daily Production | Rated Power | Water Pump Power | Water Consumption | Machine Dimension | Machine Weight |
No. | Ton/24h | KW | KW | L/H | L*W*H (mm) | KG |
P10 | 1 | 2.51 | 0.4 | 42 | 1900*1370 *1665 | 660 |
P20 | 2 | 5 | 0.75 | 83 | 1900*1550* 1700 | 750 |
P40 | 4 | 11 | 0.75 | 167 | 2500*1800*2000 | 1500 |
P50 | 5 | 15 | 1.1 | 208 | 2500*1850* 2100 | 1900 |
P60 | 6 | 18.75 | 1.1 | 250 | 2500*1890*2100 | 2100 |
P80 | 8 | 22.5 | 1.5 | 333 | 2100*2000*2300 | 2500 |
P100 | 10 | 30 | 2.2 | 417 | 2500* 2100*2530 | 3100 |
P120 | 12 | 37.5 | 2.2 | 500 | 2500 2200*2300 | 3320 |
P150 | 15 | 43 | 3.7 | 625 | 2500* 2200*2480 | 3500 |
P200 | 20 | 59 | 3.7 | 833 | 3470* 2200*2480 | 4700 |
P250 | 25 | 73 | 3.7 | 1042 | 5100* 2200* 2480 | 4900 |
ducts pictures
Our Factory
FUJIAN CENTURY SEA GROUP CO.,LTD. (CSC GROUP) located in FUZHOU city of FUJIAN province, was founded in 2005, group with total investment of more than 80 million yuan.
CSCPOWER ICE MACHINE CO.,LTD r & d and production of ice machine includes flake ice machine series, tube ice machine series, cube ice machine series, block ice machine series, plate ice machine series and cold room, packing ice machine, ice crusher, cooling system.etc, complete set of refrigeration equipment, formed from pre-sales support, design, production, complete sets of installation and debugging, customer training, etc of a complete set of engineering and technical services. Products are mainly used in fresh supermarket, hospital, dock, chemical industry, concrete mixing, deep-sea fishing, aquatic products processing,Large-scale plant cooled industrial and commercial applications.
Credit certificate
CSCPOWER credit has been checked by ALIBABA financial.
CSCPOWER has passed a financail assessment(including a credit check)
conducted by ALIBABA financial, including People's Bank of China credit archives,
business data, Alibaba network behavioral data, corporate and personal balance sheet, court enforcement records.
you can 100% trust us and place the order to us.
you will be satisfied with our quality and service.
Our Services
Installation:
Installing by the user: we will test and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
All equipment is installed on one steel frame except the cooling tower so it's very convenient to install on spotand it can be put into use immediately after connecting it with the water and electricity resource. The cooling method of the condenser can be customized.
