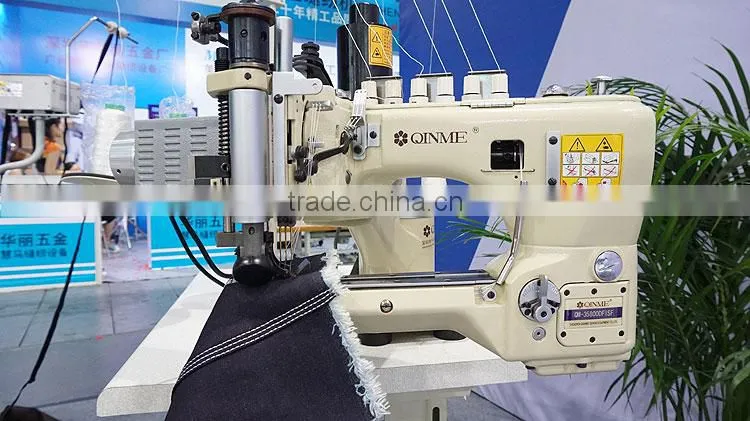

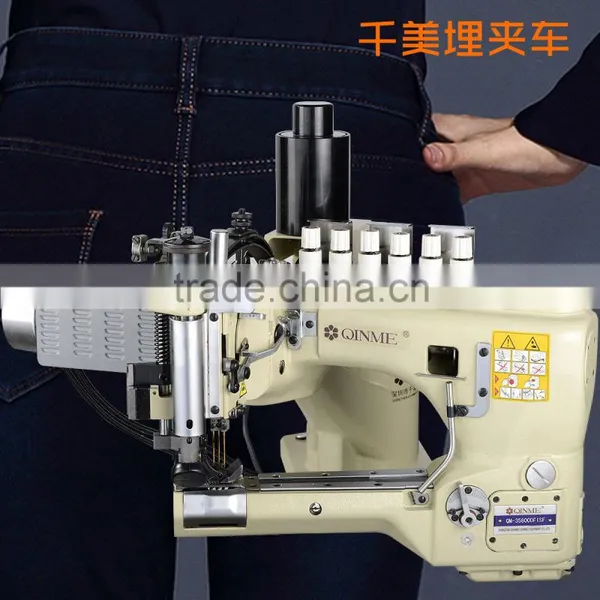

Union special 35800 Heavy duty material jeans industrial sewing machine
Features

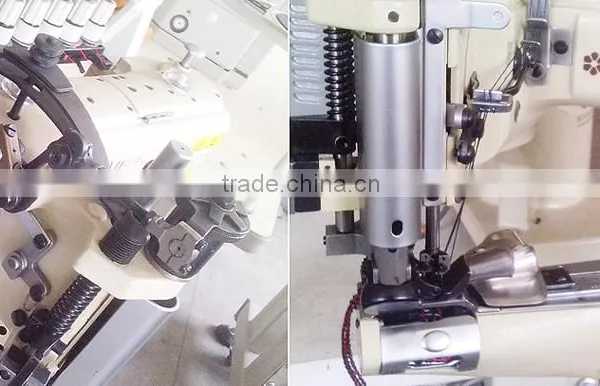

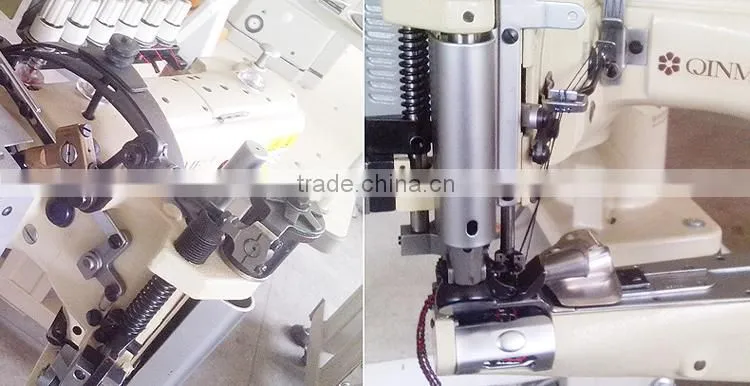

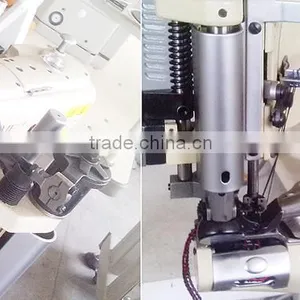

Direct-drive cutter crank arm type fell seam sewing machine

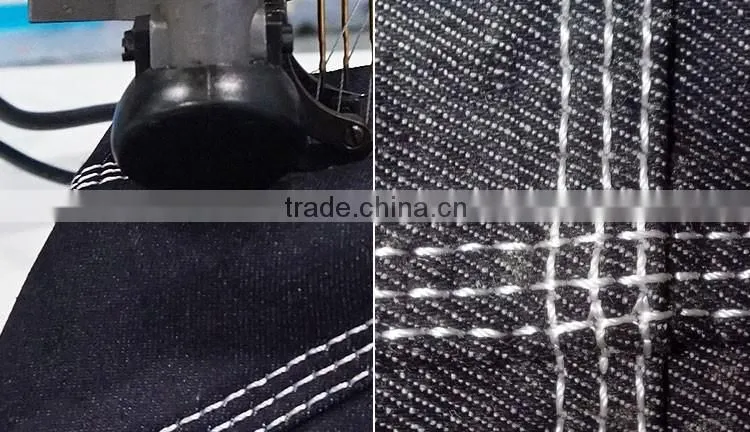

1. Suitable for sewing denim jacket with side seams, cuffs sewn seam, jeans.
2.Through the lab tug, it can feed strongly.
3.It adopts the top Direct-drive cutter crank and make it work very well.
4.It is made in arm type
Application:
Specifications:
Name QM-35800
Sewing form three needles six threads sewing machine
Function medium~ high thickness: jeans, labor jacket, uniform
Max sewing speed 4500rmp
Stitch length 6.4mm(1/4”)
Sewing length 2.1mm~3.6mm(standard 3.2mm)
Needle/standard sewing UY130GS(standard)/Nm140(#22)
Needle bar area 33mm
Stitch conductor 6conductors
Weight(head) 23.5kg
Presser foot lift Max 9mm(6.5mm for factory)
Tug on the feed width 11.9mm
Feed adjustment method Main feed: slide length adjustments
Poor feed: lever adjustment No poor feed
Lubricating method Automatic rotary pump oil
Machine oil Juki machine oil NO.18
Installation method Aid drive assembly MT103 mounted on the machine
What included in the box?
Machine head, base, cleaner, table, stand and other necessary parts and tools.Standard accessory
Carton size: 67*37.5*49cm, Gross Weight:81.00Kg Packaged by hard foams inside, and cardboard box outside.
Why us:
1. We focus on researching and producing sewing machine since 1993.
2. We passed ISO9001:2008 quality management system certification.
3. We have 5 master technicians available during business hours if you have any Questions.
4. We offer special design services to meet your personal demands.
Warranty: one year long lifespan
Watch video:
/watch?v=vppvtG82EjM
Copy this link to youtube and watch video
Contact:
Email: leoho# ( please change # to @ )
Ph/ WhatsApp: +8618126328400
Wechat / Skype: leoheyulei
Union special 35800 industrial sewing machine

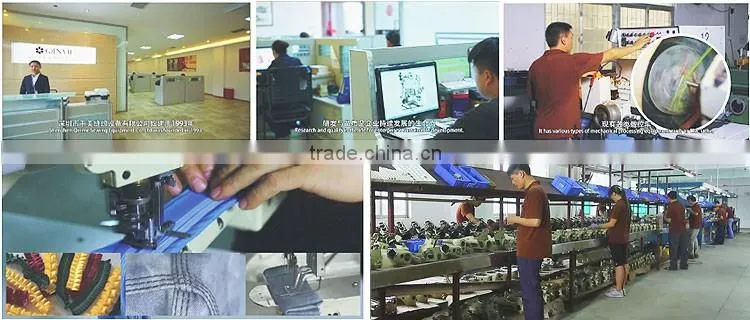

About us:
Our company was established in March, 1993, and have more than 10 years' development. Our factory located in Shenzhen, covers an area of 4800 square meters. We are specialized in producing industrial sewing machines. In 2011, we passed ISO9001:2008 quality management system certification. We have established a comprehensive management system from model design and development, part production and assembly machine commissioning to after-sales tracking service. Our company has earned good reputation in China's sewing machine and accessory area.
