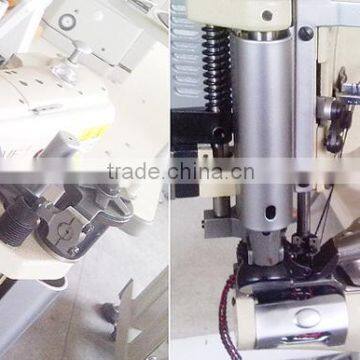

Union Special Industrial Sewing Machine
- 1000 Set / Sets per Month
- Shenzhen port for your Union Special Industrial Sewing Machine
- Credit Card
Product Details
Condition: | New | Type: | Industrial Sewing Machine | Place of Origin: | Guangdong, China |
Brand Name: | Qinme Union Special Industrial Sewing Machine | Model Number: | QM-35800SF1SN | Stitch Formation: | Chain Stitch |
Mechanical Configuration: | Off-the-Arm | Max. Sewing Speed: | 4500rpm | Max. Sewing Thickness: | 9mm |
Stitch Length: | 6.4mm(1/4") | Power: | 500w | Overall Dimensions: | 420mm(L)*300mm(W)*410mm(H) |
Feed Mechanism: | Needle Feed | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Dear buyers, please note this machine is not original union special,we developed our qinme industrial sewing machines with the advanced technology. We have used union special have have two models: QM-35800SF1SN and QM-35800SF0SN, this 35800 series model sewing for heavy duty materials like Jeans, Jackets.
Features of qinme sewing machines

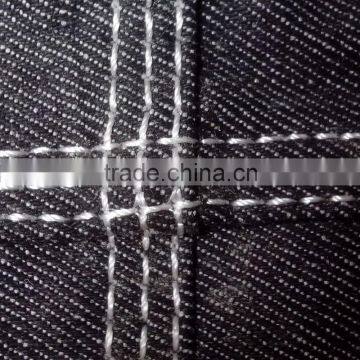

Double lap seam

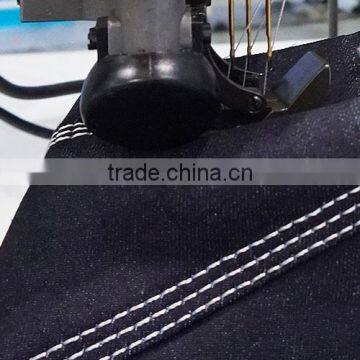

1. Suitable for sewing denim jacket with side seams, cuffs sewn seam, jeans.
2.Through the lab tug, it can feed strongly.
3.It adopts the top Direct-drive cutter crank and make it work very well.
4.It is made in arm type
Why choose qinme union special industrial sewing machine
1. We focus on researching and producing qinme union special industrial sewing machine since 1993.
2. We passed ISO9001:2008 quality management system certification.
3. We have 5 master technicians available during business hours if you have any Questions.
4. We offer special design services to meet your personal demands.
5. Warranty: two years long lifespan
Specifications:
Model: QM-35800SF1SN
Sewing form: Three needles six threads sewing machine
Application: Medium~ high thickness: jeans, labor jacket, uniform
Max sewing speed: 4500rmp
Needle gauge (distance): 6.4mm(1/4”)
Stitch length: 2.1mm~3.6mm(standard 3.2mm)
Needle/standard sewing: UY130GS(standard)/Nm140(#22)
Needle bar area: 33mm
Stitch conductor: 6 conductors
Weight(head): 23.5kg
Presser foot lift: Max 9mm(6.5mm default)
Top feed roller width: 11.9mm
Feed adjustment method Main feed: Slide-type stitch -length adjusting method
Differential feed: lever adjustment method Model name: QM-35800SF0SN No Differential control
Lubricating method Automatic rotary pump oil
Machine oil Juki machine oil NO.18
Installation method Aid drive assembly MT103 mounted on the machine
Carton size: 67*37.5*49cm, Gross Weight:81.00Kg Packaged by hard foams inside, and cardboard box outside. ( only head, base, motor,61 kgs)
Watch video:
/watch?v=vppvtG82EjM
Copy this link to youtube and watch video
Contact:
Email: leoho# ( please change # to @ )
Ph/ WhatsApp: +8618126328400
Wechat / Skype: leoheyulei
Union special 35800 industrial sewing machine
About us:
Qinme was established in March, 1993, and have more than 20 years' development. Our factory located in Shenzhen, covers an area of 4800 square meters. We are specialized in producing industrial sewing machines. In 2011, we passed ISO9001:2008 quality management system certification. We have established a comprehensive management system from model design and development, part production and assembly machine commissioning to after-sales tracking service. Qinme union special industrial sewing machine has earned good reputation in China's sewing machine and accessory area.
