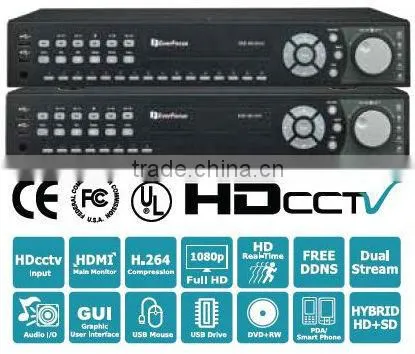

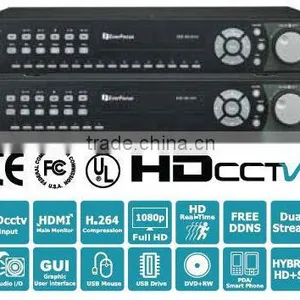

16CH/8CH H.264 HD+SD Cctv Digital Video Recorder

Specifications

H.264 compression format
Real-time Recording & Playback rate
Dual streaming
Certificates:CE, FCC, UL

Features



• Both HDcctv Megapixel Video Inputs and Analog Video Inputs

• Choose 720p or 1080p HD resolution recording for HDcctv Video Inputs up to 30fps/camera

• H.264 compression format to minimize optimize disk space consumption

• Dual streaming to optimize remote viewing bandwidth utilization

• Real-time recording rate and playback rate - up to 30fps@D1 on analog and 30fps@HD on HDcctv recording resolution

and rate can be set independently for each camera, and changed via user defined schedule

• Multiple Main Monitors : HDMI 1080p / VGA (1920x1080) output for stunning image clarity

• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

• User friendly GUI with graphical icons and visual indicators

• Free EverFocus DDNS Service static IP address is not required for reliable remote access

• Supports eSATA external HDD array (EDA450)

• Supports remote/mobile monitoring via PC browsers, SmartPhones and iPhone/Android apps

• Multiple Control Inputs: mouse / front panel / IR remote control / EKB500 keyboard

• Express Setup: A unique menu option for quick & easy installation and setup

• Express Playback: Simply point, click and drag the playback bar to view desired recordings

• Express Archive: Archive video instantly (to USB) while playing back

• Express Search: Use the intuitive playback bar with simple drag & drop operations

• Smart Search: Review recorded video to identify motion in area(s) of interest

• Snapshot search: choose an interval and direction, view a series of snapshots to quickly isolate incidents

• Remote configuration support from built-in web interface



• Gigabit Ethernet interface for remote network viewing and control

• Audio recording capabilities

• Up to 4 internal HDDs

• Built-in DVD burner

• 2 USB 2.0 ports for video archive and mouse usage

• Multi-language support



• Watermark capabilities to identify intentional modifications of recorded data

• Compatible with FREE EverFocus Central Management Software

• USB Mouse and IR remote control included

• 19” Rack mountable – rack ears included

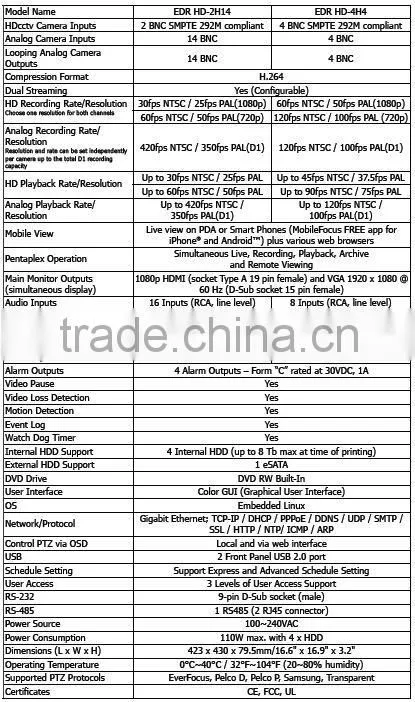

Specifications





Advantages



Hybrid Real-Time High & Standard Definition Resolution Recording over COAX Deliver and record both High & Standard Definition image quality using traditional coaxial cable*! Retain plug-and-play ease of installation: select leading edge EverFocus HDcctv cameras that use the advanced HDcctv video signals to send full HD, megapixel resolution digital video over the same coax* that once carried only standard definition video. The ENDEAVOR HD+SD DVR delivers “hybrid” recording that allows HDcctv cameras and conventional analog cameras to be recorded on the same DVR. This unique platform provides a gradual migration path to High Definition video recording while still supporting the use of existing analog equipment. *Up to 500 feet, longer distances with extenders



HDMI and VGA Multiplex Monitor Outputs Full HD 1920x1080 provides superior picture performance on a massive scale, with two entire megapixels of resolution allocated to monitor display. HDMI and VGA digital outputs render stunning images from any resolution, and enhance motion reproduction to deliver smoother and crisper looking video .

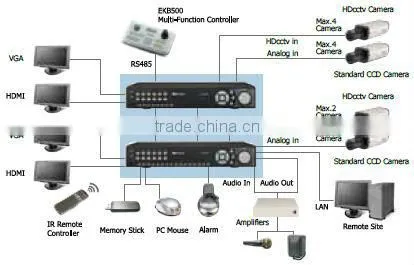

System Configuration



Dimensions
