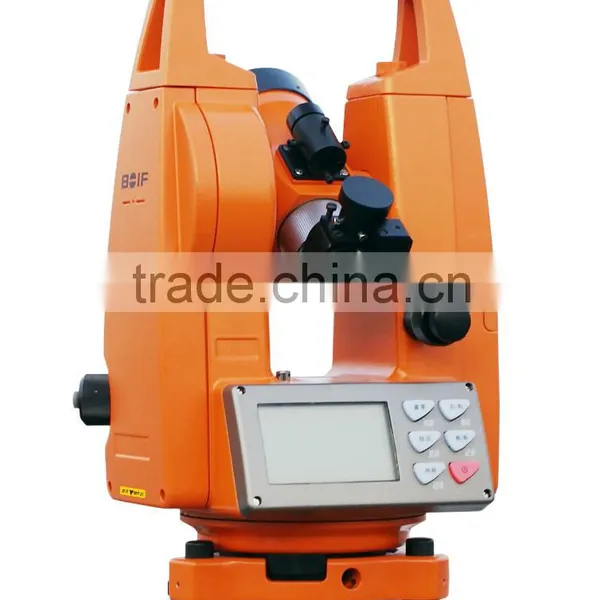

Help CenterAutocollimation Laser Theodolite
Related Products
Application
Reticle of cross curve after spectroscope to telephoto lens launch out light is reflecting mirror reflection back, through optical system will reticle imaging in the stadia board, and stadia plate the full width of the coincidence, realizing Auto-collimation.
Characteristic
Screen clock displaying.
The minimum sight distance 0.5m,which will be helpful for measuring in small space.
It has high precision because of it’s using Absolute encoder to measure angle, which also makes it stable
Using LED lights as the autocollimator’s lights makes the autocollimator distance up to 20 meters. The green color of LED lights make operation more comfortable. And it is more convenient to switch on/off the lights with operation keys
Using Online programmable technology makes software upgrading more convenient and faster.
With bilateral communication function, the user can direct control electronic theodolite by programming in the PC to achieve a variety of complex functions
Specifications
Telescope:
Image formation Positive
Magnification 28X
Effective aperture of lens 40mm
Angle of visual field 1°30´
Shortest visual range 0.5m
Stadia multiplication constant 100
Stadia addition constant 0
Length 172mm
Spirit level:
Tubular level of the alidade 30"/2mm
Circular level 8′/2mm
Graduated circle and tape measure:
Graduation diameter of horizontal circle 94mm
Graduation interval 1°
Graduation diameter of vertical circle 76mm
Graduation interval 1°(g)
Graduation interval of tape measure 1"(c)
Estimation reading to 0.1" (0.2°)
Reading microscope:
Magnification of the horizontal system 68X
Magnification of the vertical system 65.4X
Automatic compensator for vertical circle index:
Working range ±2′
Optical plummet:
Magnification 2.5X
Angle of visual field 5°
Range of focusing 0.7-∞
Weights and dimensions of instrument:
Height of horizontal axis 207mm
Net weight 4.3kg
Weight of inner packing case 3.5kg
Weight of tripod 5.5kg
Extension height of tripod 1.0—1.5M
