2015 Anti collision warning system AWS650

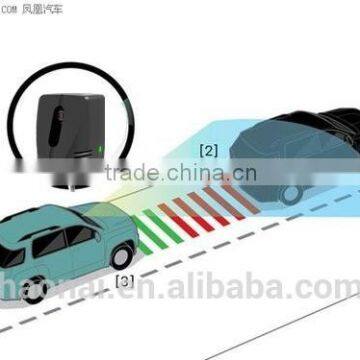

Relying on Tsinghua University’s technical background, HaoNai Industrial Co., Ltd. independently developed the Anti-collision Warning System (abbr. AWS). As a sophisticated vehicle electric active safety system, AWS is mainly used in highway, urban expressway and other high-grade road. Its main object is assisting the driver to keep in lane and keep distance, avoiding traffic accident caused by land departure; at the same time, reducing the risk of front collision accident caused by driver’s distraction, so as to reduce injury.
The product combines image identification, risk estimate and many high technologies; completely compliance with international road condition, traffic laws and driver’s habit. When the vehicle passively departure the land due to driver’s distraction or fatigue, get too close with front car, or there’s other vehicle overtake in short distance, the system will automatically alarm until the driver correct the driving direction or actively control the vehicle distance. The system only has safety reminding function; it will not automatically take measures to intervene driver’s operation. Driver should still be responsible for the safety driving.

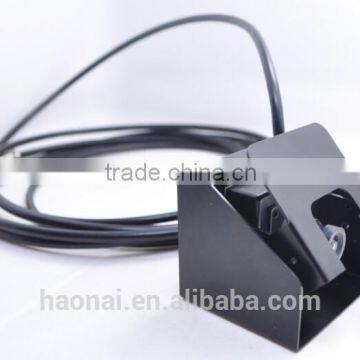

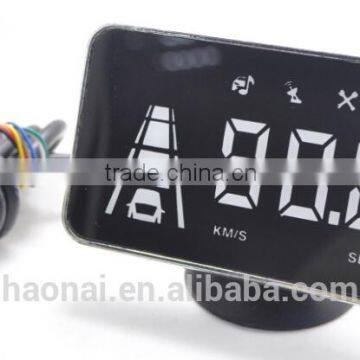

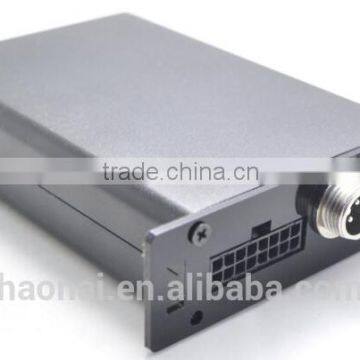

Product pictures:
Product specification:
Product reliability:
Caredrive’s commercial AWS system’s product manufacture and management passed the national ISO9001 certification, auto TS16949 quality system certification, product’s EMS passed the Holland Ministry of communication’s E-mark certification, the production function passed the National Motor Vehicle Quality Supervision and Inspection Center test; the product’s electrical property, environment reliability passed the third-party certification body authorized by CNAS.
1. Lane Departure Warning (abbr. LDW)
Takes the foresee camera as mainly sensor, detects and trails the landline upon the machine’s visual technology, combining driver’s characteristic to judge if the vehicle has out-land dangerous, providing sound and lamplight warning for drivers.
When the vehicle is unconsciously departure the driving lane, it will provide the hearing and tough alarming for the driver, until the driver redress the driving direction, its purpose is to avoid the accident which caused by the driver's fatigue or distraction to unconsciously departure the lane.
The detail function instruction is as followed:
2. Forward Collision Warning (abbr. FCW)
Takes the camera as mainly sensor, detects and trails the front vehicle upon machine’s visual technology, combining driver’s characteristic to judge if the vehicle too close to front vehicle dangerous, providing sound and lamplight warning for drivers.
When the vehicle is too close to the front vehicle or has anti collision danger, it will provide the hearing and touch alarming, to warn the drivers take actions to avoid the accident happended, reduce the accident's lost.
The detail function instruction is as followed:
3. Video output function
CareDrive’s commercial vehicle AWS system can output the landline recognition effect, vehicle recognition effect, vehicle signal and other information by overlaying them to original image through OSD function; enable car video to record directly. Equivalently appreciate other secondary function like the high-performance foresee camera, black box, points record and so on.
( a ) do not reach activate speed ( b ) normal tracking and recognize
( a ) alarm reminder ( b ) alarm resist
Samples are available for you at any time.
Fast delivery: once we receive your payment, we can ship the samples to you without any delay.
Best After-sales service: Any questions from you after you buy our products, we will do our best to service you. We are always here!
Certification:
For our customers
Together with you, we achieve high standards of quality and commitment to sustainable development.
Together with you, we are travelling the path of safety and success – yesterday, today, and tomorrow.
Hao Nai Industrial Co., Ltd
Care for driving, care for life
