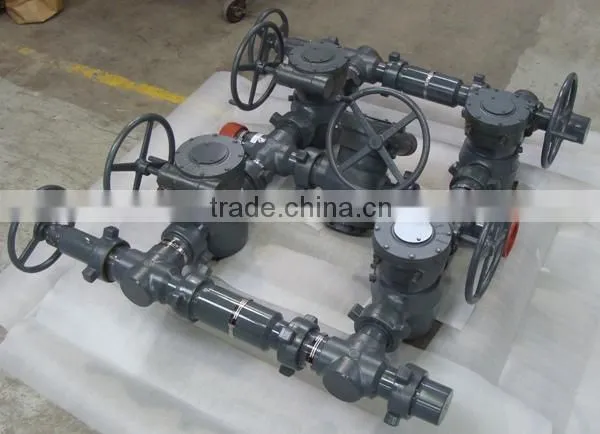

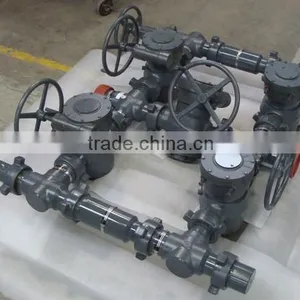

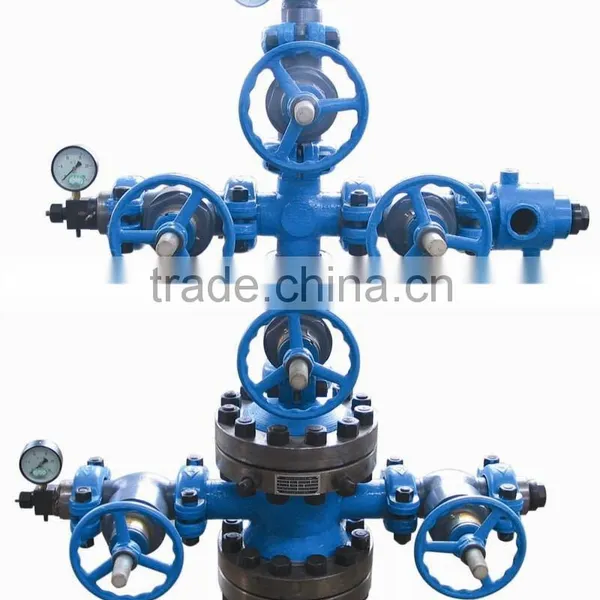

Wellhead and Christmas Tree For Oil Drilling
Product Feature:
The Christmas tree is an assembly of valves, spools and fittings for an oil well, and to design to direct and control formation fluids from the well. X-mas Tress: The Christmas tree is an assembly of valves, spools and fittings for an oil well, and to design to direct and control formation fluids from the well. It can provide inlet for production tubing strings, including all components above the tubing head adapter. Christmas tree assemblies can constitute many different kinds of combinations in order to meet any special requirement. Based on their different functions, Christmas trees can be classified into such special Christmas trees as oil production (flowing and artificial lift) Christmas trees, gas (natural gas and various sour gas) production Christmas trees, water injection Christmas trees, thermal recovery Christmas trees, fracturing Christmas trees and acidizing Christmas trees. Different pressure ratings serialize Christmas trees.
The gas production Christmas tree and tubing head are mainly used to produce gas and inject gas. The relative density of natural gas is low and gas column pressure is low, while well head pressure is high and liable to leakage regardless of gas production and gas injection. Sometimes natural gas contains corrosive media such as H2S and CO2. Therefore, the gas production Christmas tree calls for rigid requirements on both its materials and its sealing characteristics. For the sake of safety, two gate valves are used on the tubing and casing respectively. Some gate valves to be used on high pressure and ultra-high pressure gas wells are integrated valves manufactured from high quality forged steel. Product Specifications: Scope of supply: Working pressure: from 2,000psi to 20,0000psi Nominal diameter: from 2.1/16” to 5.1/8” Working medium: crude oil, gas, drilling fluid, gas contained H2S, CO2 Working temperature: -46℃ to 121℃ (L U) Material class: AA, BB, CC, DD, EE, FF Specification level: 1-4 Performance requirement: 1-2 To complete with air or hydraulic safety valve at option.
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
