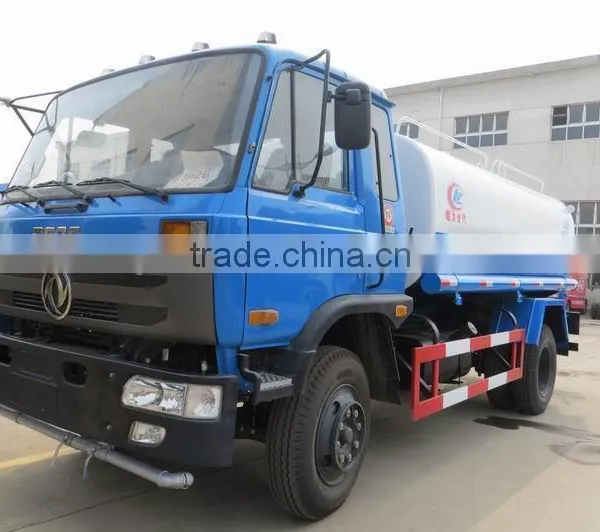

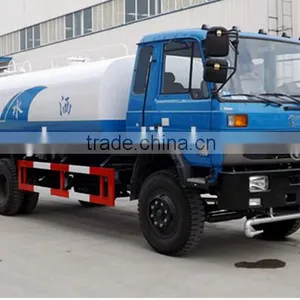

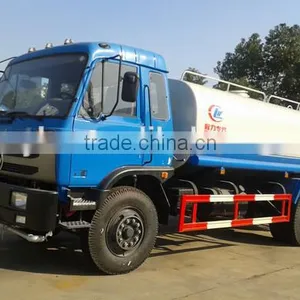

20T Water Tanker Truck Dimensions Dongfeng Water Bowser Truck

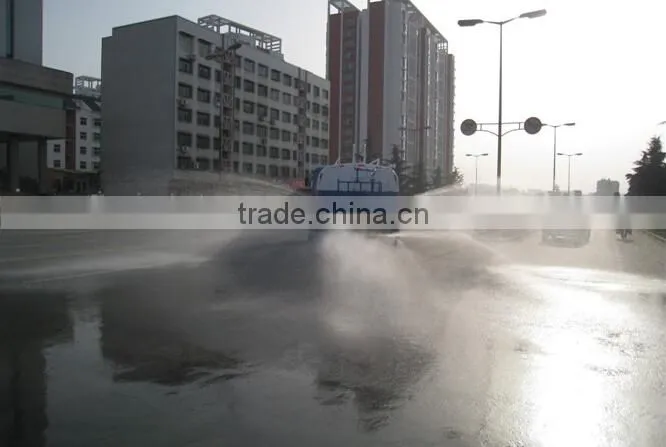

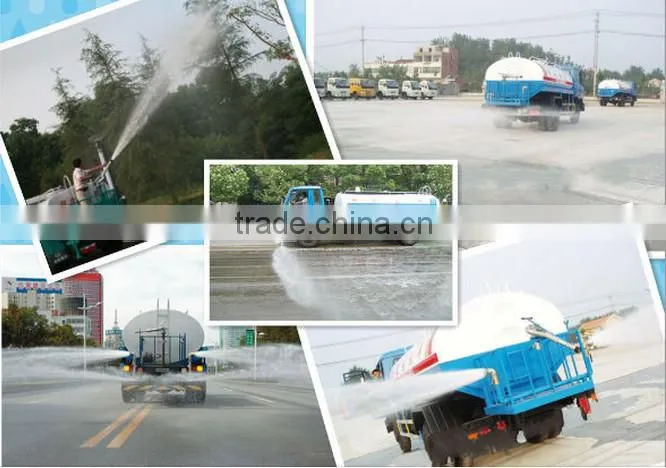

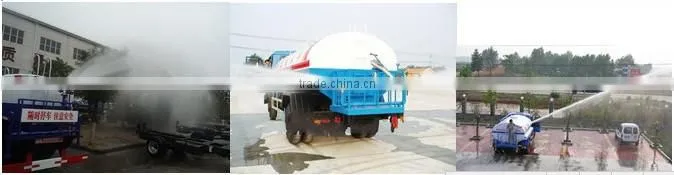

1. Suction≥7m Sprinkler width≥16m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Specification:
Commodity |
Dongfeng Water truck |
|
Chassis |
6x4 chassis with Cummins engine |
|
Cubage (L) |
20000L |
|
Vehicle |
Overall dimension (length/width/height)mm |
10000x2500x3400 |
|
G V W(kg) |
29000 |
|
Payload (kg) |
20000 |
|
Kerb mass(kg) |
9005 |
|
Approach/Departure Angle(°) |
32/14 |
|
Front/Rear Suspension (mm) |
1245/2465 |
|
Fuel Type |
Diesel |
|
Fuel consumption(L/100km) |
22 |
|
Top speed |
90 |
Engine |
Model |
B210 33 |
|
Exhaust/Power(kw) |
5900/ 210 (210 HP) |
|
Manufacturer |
Dongfeng Cummins engine technology |
|
Type |
6-in-line water cool Turbo Charge engine |
Chassis |
Drive type |
6×4 |
|
Wheelbase (mm) |
4350+1300 |
|
Tread(front/rear)mm |
1940/1860 |
|
Front Bridge |
6 Ton |
|
Rear Bridge |
10 Ton |
|
Transmission |
Double spoke wheel, with power steering |
|
Gear box |
8-forward gear, one reverse gear, mechanical transmission |
|
Clutch |
Uniwafer, dry screw spring clutch |
|
Brake system |
Air brake |
|
Cab |
One and half row longhead cab |
|
Number of spring axles(front/rear) |
8/13 |
|
Tire specification |
10.00-20 |
|
Air condition |
optional |
|
Water pump |
Self-sucking centrifugal pump |
|
Water system performance
|
Water width |
≥16 |
|
Water monitor range |
≥28 |
|
Vertical suction range |
≥7 |
|
Pressure |
250-450KPa |
|
Watering speed |
0.2-2(L/M3) |
|
Pump lift |
90m |
|
Priming time |
<5min |
|
Flow |
60 m3/h |
|

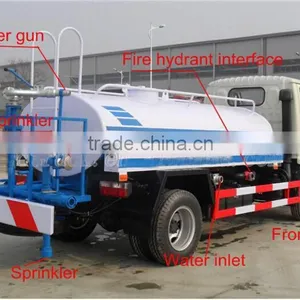

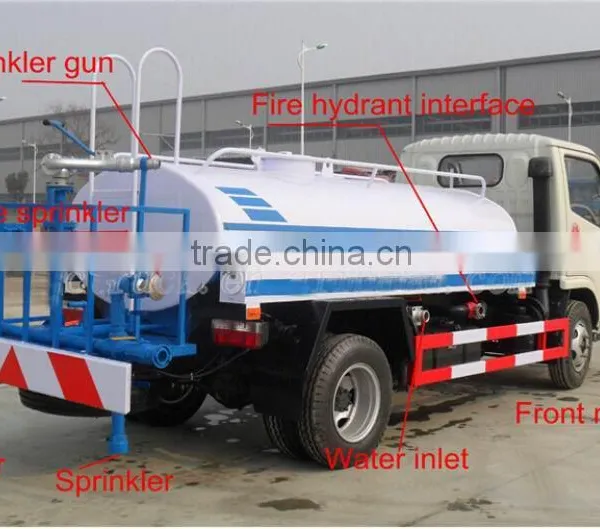

Rear with working platform, with fire valve, water valve, and filter gauze, water pump, tool box, ect. |
|

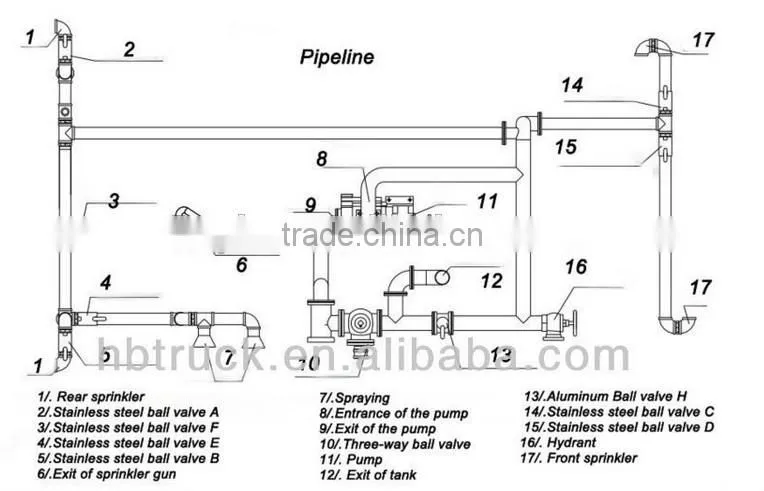

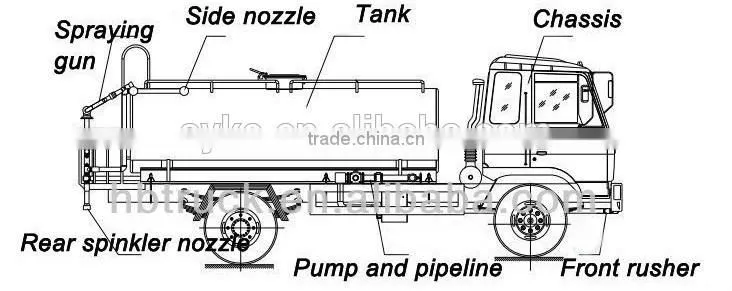

Water truck drawing:
20T Water Tanker Truck Dimensions Dongfeng Water Bowser Truck

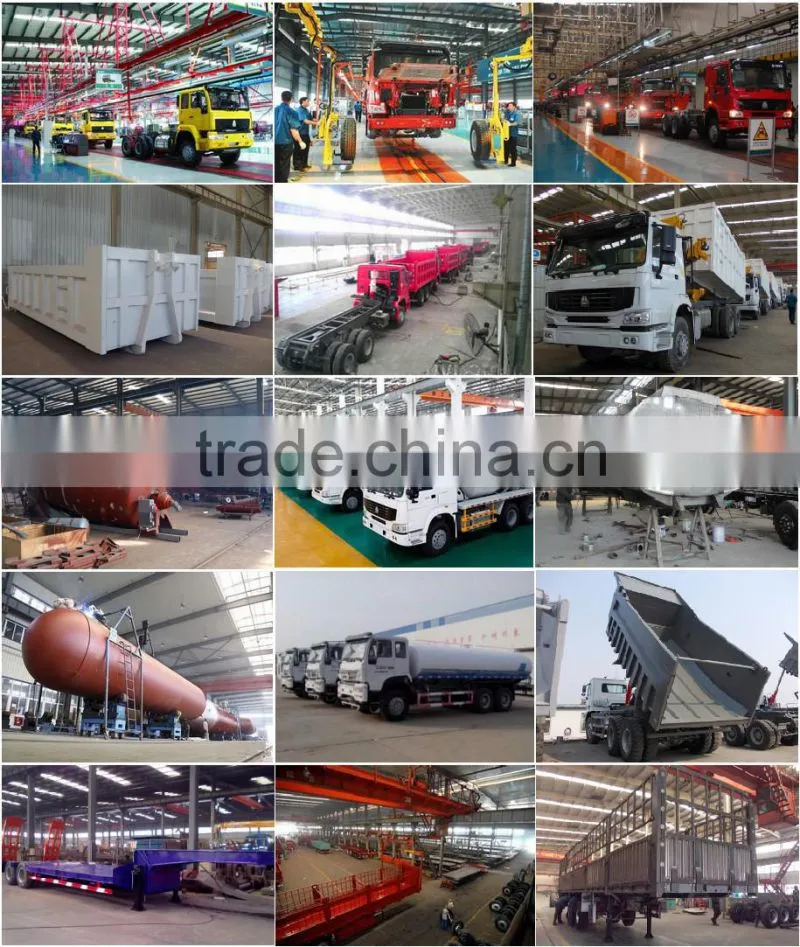

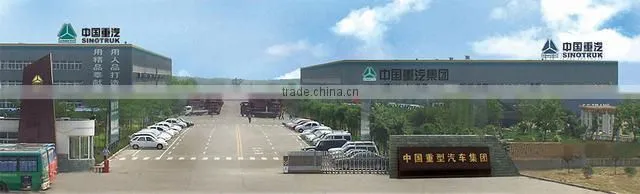

- SINOTRUK Tai'an SYKE Special Vehicle Co.,Ltd is the subsidiary factory of SINOTRUK Tai'an Wuyue Company(Established in 1950).Wholly owned member of SINOTRUK GROUP.With total assets of 540.00 million Yuan(CNY) and 1400 staffs of which 340 engineers.
- We are one of the earliest enterprises which have passed ISO9001 Certification,CCC certification,SGS,BV and many third party inspection organization:
Susan Yu
Sales Manager
SINOTRUK TAIAN SYKE SPECIAL VEHICLE CO.,LTD
************************************************************************
Cellphone:0086-15505384929(Whatsapp/Wechat)
Office Tel: 0086-538-8361777
Office Fax:0086-538-8361887
Skype:susan.0517
Email:sale5(at)/yushanshan1982(at)
Office Add:3211 Kaiyuan Road,Daiyue District, Tai'an, Shandong, China
Factory Add:266 Zhongtianmen Street, Daiyue District, Tai'an, Shandong, China
*****************************************************************************************************
Call me and welcome to visiting us!
