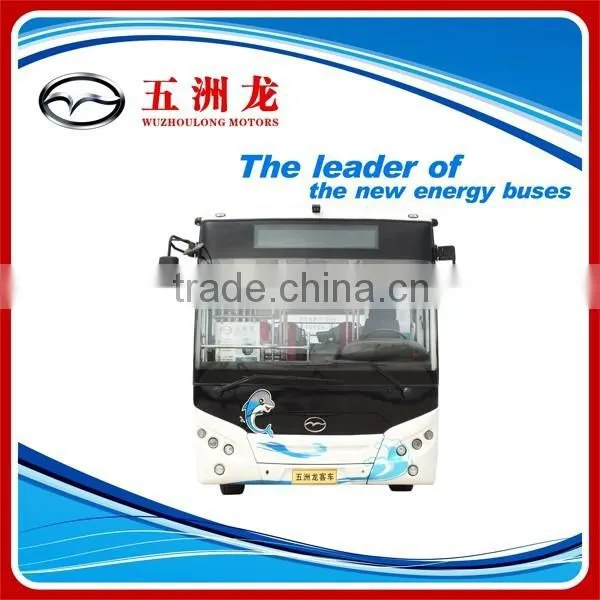

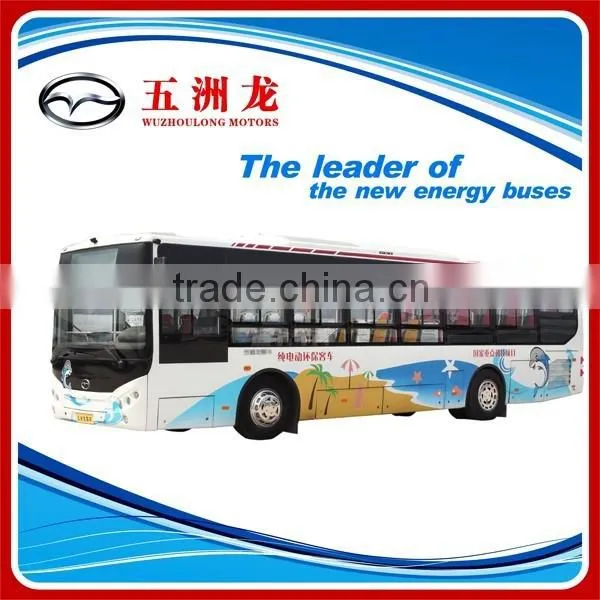

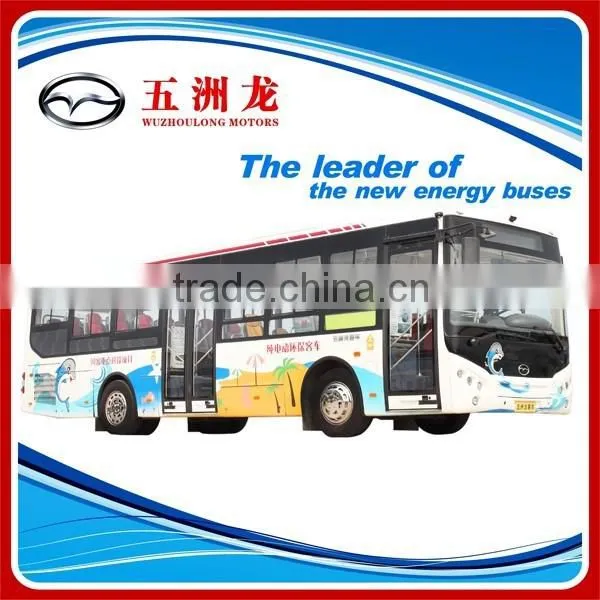

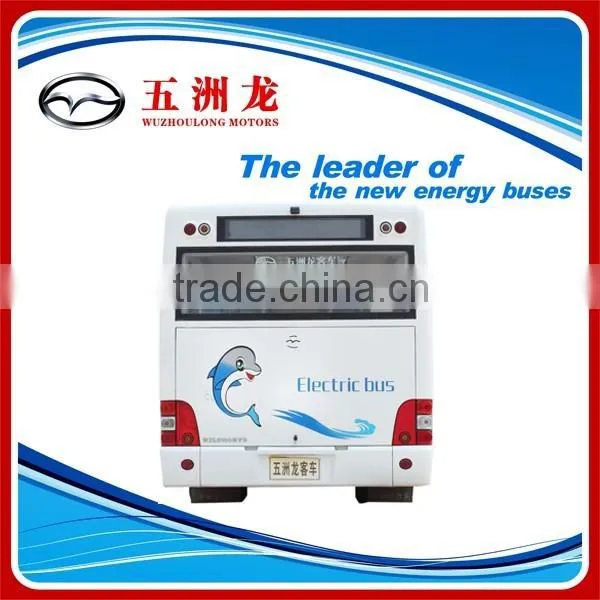

10m Electric Bus for Sale

Name: 10m Electric Bus for Sale
Brand: Wuzhoulong
SKU: 107171889

US$ 150,000 - 250,000 MOQ: 1 Unit

Key Specifications

Seats:

21 - 40

Emission Standard:

Other

Transmission Type:

Automatic

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Other

Transmission Type Automatic

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Electric

Dimensions (L x W x H) (mm) 10490*2480*3235mm

Place of Origin China

Brand Name Wuzhoulong

Model Number WZL6100EVG

New Energy Pioneer :Wuzhoulong bus

In 2006, Exported the Chinese First Pure Electric Bus to United States

All of our buses can be customized,

The only thing you need to do is provide exact requirments.

We will provide the best service for you

Got any questions, find me terrine.

Overall Parameter
overall length (mm)			10490
overall width (mm)			2480
overall height (mm)			3235
wheelbase (mm)			5000
Front/Rear overhang (mm)			2250/3240
approach angle/ departure angle (°)			7/7
front/rear tread (mm)			2020/1860
gross weight(kg)			16500
rated passenger			61/25-39
top speed (km/h)			70
Driving Motor Parameter
Electric Motor Model		QYS100-6/240
Electric Motor		induction
Electric Motor Position		Rear
max power(ps/r/min)		100/2000
max torque(N.m/ r/min)		822/1500
displacement(L)		0
Chassis Parameter
chassis model /manufacturer	WZL6100DPHEVGR/ wuzhoulong

Battery No./Manu.	EV346V600Ah Guangdong Power Technology Co., Ltd. Wuzhoulong
lutch	φ395 , Electric control ,single .dry style , diaphragm spring
front axle	EQ153 , Forged module, “H”type section, two fist-end type
driving axle	EQ153 Single-grade reduction, hyperbolic gear
suspension	Leaf Spring,3/4
steering	power steering
braking	Dual-circuit drum braking system according with ECE standard .Automatically air-cut brake.
tyre	275/70R22.5 6pcs
charging / generation	165A.hx2/110A+140A 28 V
