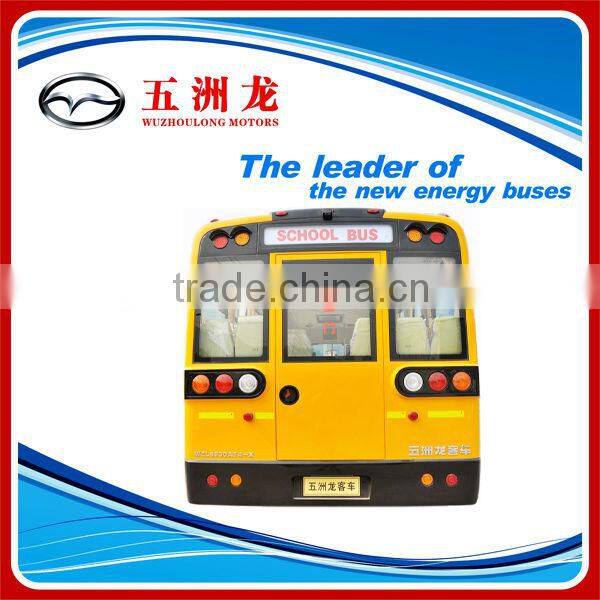

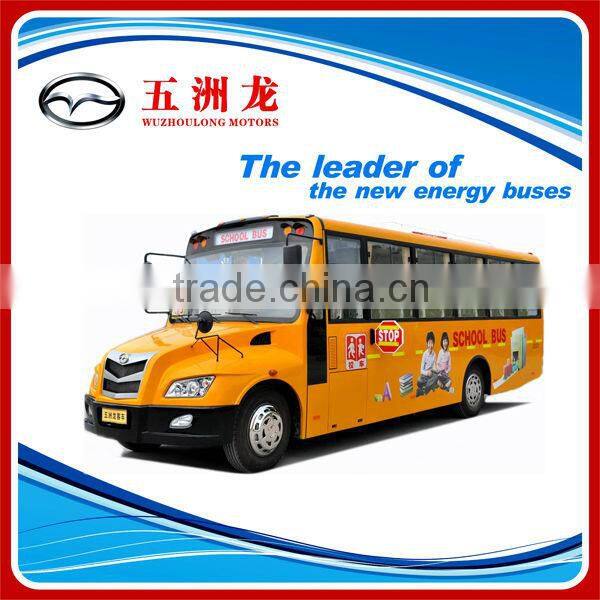

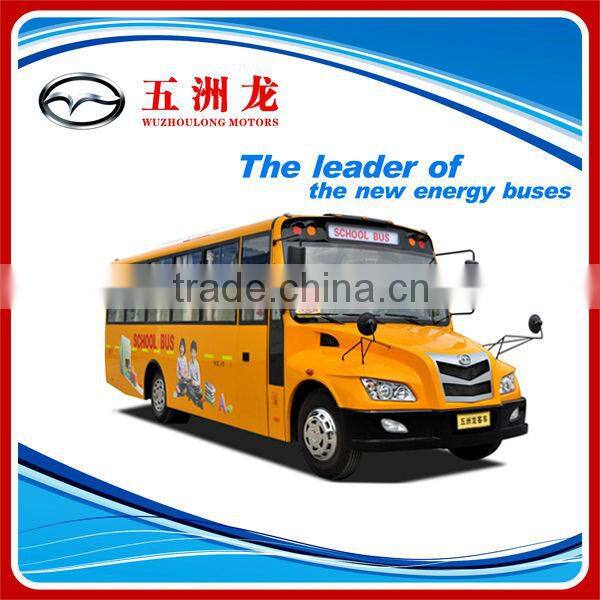

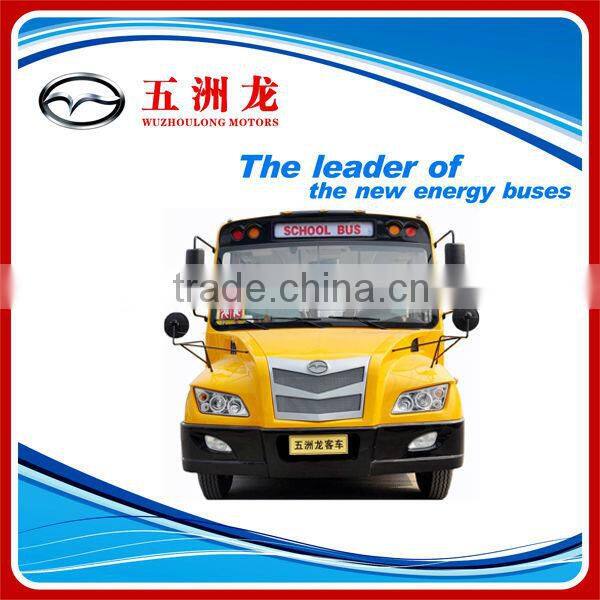

55 Seats Amarica School Bus

55 Seats Amarica School Bus photo-1
US$ 48,500 - 55,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Seats:
Other, 56-61
Emission Standard:
Euro 4
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Seats Other, 56-61
Emission Standard Euro 4
Transmission Type Manual
Max Speed 71 - 90 km/h
Steering Position LHD
Fuel Type Diesel
Dimensions (L x W x H) (mm) 9260x2500x3140mm
Place of Origin Chongqing, China
Brand Name Wuzhoulong
Model Number WZL6930AT4-X

Specifications

With good quality and best price

Thomas Yuan
Tel: 0086-23-64287798               Fax: 0086-23-64287822
Skype: thomasyuan865              Website:
Address: Central Area,Industrial Park,Hechuan District,Chongqing,China

             9.3m 56-61 seats spacious School bus



                                         Overall Parameter

Overall Length (mm) 9260
Overall Width (mm) 2500
Overall Height (mm) 3140
Wheelbase (mm) 5000
Front/Rear Overhang (mm) 1110/3150
Approaching/Departure Angle (°) 20/9
Front/Rear Tread (mm) 2035/1800
Max Weight (kg)  12000
Rated Passenger Capacity  56-61
Top Speed (km/h)  85



                                         Engine Parameter

Model YC4E160-42
Manufacturer YUCHAI
Position/Fuel type Front/ Diesel
Type Inline ,4 strokes, water-cooling ,turbo-intercool,electricity control.
Max Power (kw/r/min) 118/2600
Max Torque (N.m/r/min) 550/1300-1600
Displacement 4.26 L
Emission Standard Euro IV



                                         Chassis Parameter

Model NJ6731YFD2
Gear box 5MT with synchronizer
Clutch φ380 diaphragm spring clutch.
Front Axle Forged module, “H”type section, two fist-end type 4.5T
Drive Axle Integrate instructions 8T
Suspension Leaf spring 5/6
Steering Integrated power steering
Brake ECE standards, dual-circuit pneumatic, drum braking.
oil Tank 120L
Tyre 9.00R20  6pcs
 battery 135Ah×2/110A 28V
Others Automatic-adjusting arm, ABS



                                                   Body

Body constructure Semi-monocoque
Interior Trim Molding A/C Interior(Without reading Light ,safety window ,PVC board )
Door and Door pump Middle Pneumatic outward-swing passenger door rear safety door
Window and side wind screen

full-view laminated windscreen,Steel windshield,

alloy aluminum sliding side windows.
Rear view system

manual bracket

rear view mirror,inside view mirror.
A/C 18000kcal/h Capability, top fixed
Heating system/ defrost water-heating defrost system
Auto Video system MP3
Lamp Front combination big Lamp , rectangular inner roof lamp .
Rain wiper opposed wiper with detergent.
seats

58 seats (3+3 style ) students seats .

2 care seats ,with adjustable driver seat,all seats with safety belt .

blanket Bamboo leather ,china check leather
Lacquer China solid Lacquer
 Others extinguisher(4Kg×2), froth rail ,Half driver sun-visor, Electric clock, Roof fan for driver, Travel recorder with GPS, Alloy type cover, colorful rearing monitor.



Thomas Yuan
Tel: 0086-23-64287798               Fax: 0086-23-64287822
Skype: thomasyuan865              Website:
Address: Central Area,Industrial Park,Hechuan District,Chongqing,China
