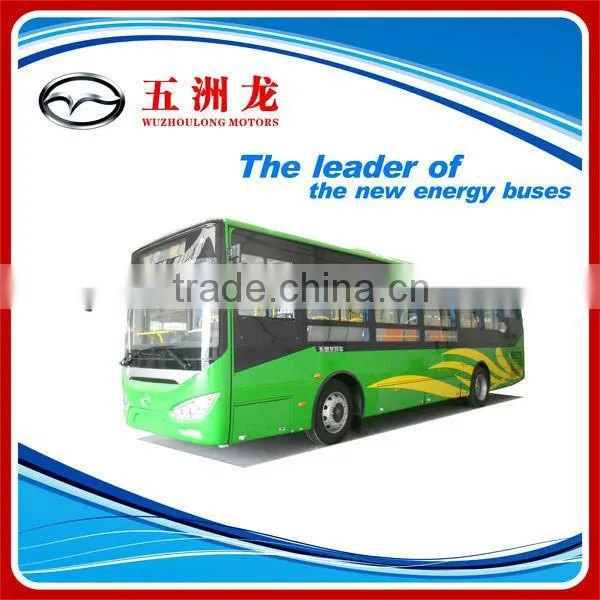

10.5m Diesel & Battery Hybrid Bus

Name: 10.5m Diesel & Battery Hybrid Bus
Brand: Wuzhoulong
SKU: 107169319

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

Other, 20-42

Emission Standard:

Euro 4

Transmission Type:

Automatic

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 20-42

Emission Standard Euro 4

Transmission Type Automatic

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Hybrid

Dimensions (L x W x H) (mm) 10490*2500*3050/3140mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6102PHEVDEG4

Specifications

L*W*H:10490*2500*3050/3140mm
Gross weight: 16500kg
It can save fuel up to 30%.
With good quality and best price.

10.5m Diesel & Battery Hybrid bus

Overall Parameter
Overall length (mm)	10490
Overall width (mm)	2500
Overall height (mm)	3050/3140
Wheelbase (mm)	5000
Front/Rear overhang (mm)	2250/3240
Aapproach angle/ departure angle (°)	9/8
Front/rear tread (mm)	2040/1860
Gross weight(kg)	16500
Rated passenger	75/20-42
Top speed (km/h)	69

Engine Parameter
Engine model	YC6J200-42
Engine manufacturer	YUCHAI
Engine position/ fuel	Front/diesel& battery
Engine type	Inline, four-stroke, inter-cooling, water-cooling, electronic control.
Max power(kw/r/min)	147kw/2500r/min
Max torque(N.m/ r/min)	730Nm/1200-1700r/min
Displacement(L)	6.494
Emission standard	Euro. IV

Chassis Parameter
Chassis model /manufacturer	Model: WZL6100PHEVDER, produced by Chongqing Wuzhoulong bus
Main Motor model	YPQ250L-6M(90KW) Dalian Tianyuan
Driving battery model	336V100Ah / wuzhoulong battery company
Clutch	φ395 electrically-controlled clutch, single dry style, diaphragm spring.
Front axle	Dong feng 5.5T , Forged module, “H”type section, two fist-end type, disk brake.
Driving axle	Dongfeng 11T, single-grade reduction, hyperbolic gear.
Suspension	Leaf spring (Front 5/rear 5)
Steering	Power steering
Braking	Accord with standard double loop ECE air brake, front disk rear drum brakes.
Oil tank	150L
Tyre	275/70R22.5 6pcs
Charging / generation	165Ah×2/150A+150A 28V
Others	Automatic Slack Adjuster, ABS
