Home > Transportation > Bus > City Bus > 7.8m Front Engine City Bus(CNG Fuel)

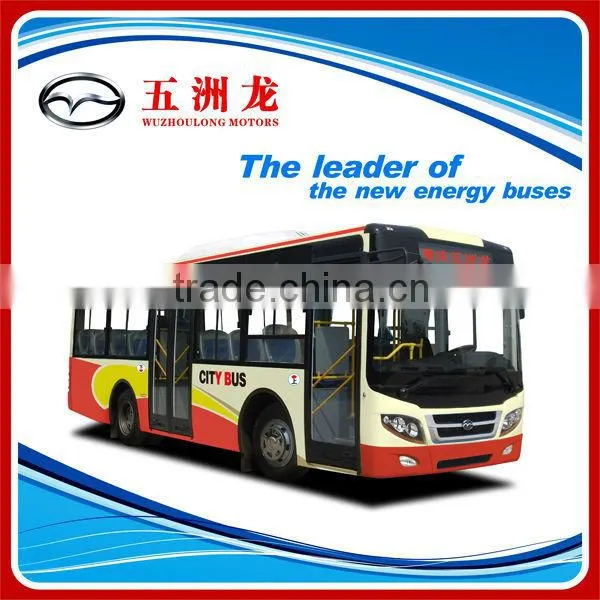

7.8m Front Engine City Bus(CNG Fuel)

Name: 7.8m Front Engine City Bus(CNG Fuel)
Brand: Wuzhoulong
SKU: 107168993

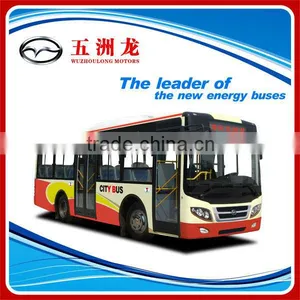

7.8m Front Engine City Bus(CNG Fuel) thumbnail-1

7.8m Front Engine City Bus(CNG Fuel) photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Seats:

Other, 17-26

Emission Standard:

Euro 4

Transmission Type:

Manual

Contact Supplier Request Quote Chat Now

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Seats Other, 17-26

Emission Standard Euro 4

Transmission Type Manual

Max Speed 71 - 90 km/h

Steering Position LHD

Fuel Type Gas / Petrol

Dimensions (L x W x H) (mm) 7800*2380*3100mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6780NGT4

Specifications

7.8m 17-26 Seats Front Engine CNG City Bus
With good quality and best price.

Our products can be customized,

small order quantity is acceptable.

7.8 meters CNG City bus Configuration

Overall Parameter
Overall length (mm)	7800
Overall width (mm)	2380
Overall height (mm)	3100
Wheelbase (mm)	3800
Front/Rear overhang (mm)	1910/2090
Approach/departure angle (°)	11°/11°
Front/Rear Tread (mm)	1940/2090
Gross Weight(kg)	9000
Rated Passenger	46/17-26
Top Speed (km/h)	90(km/h)
Engine Parameter
Model	NQ140N4
Manufacturer	Dongfeng Nianchong
Position/Fuel type	Rear/CNG
Engine Type	Inline,4 cylinder,4 strokes, water cool, turbo charger, intercooler, electric control CNG
Max Power(kw/r/min)	103/2800
Max Torque (N.m/r/min)	420/1200~1600
Displacement (L)	3.759
Emission Standard	Euro.IV
Chassis Parameter
Model/Manufacture	NJ6801YFC1
Transmission	EQ150
Clutch	φ350,single,dry hydraulic spring.,Hydraulic remote control, air power
Front Axle	forged, "H" type section, fist end. 3.5 T
Drive Axle	Integrate punching Shell , 5.5 T, gear ratio 5.286
Suspension	Multi Leaf Spring 8/10 ,Three steps
Steering	power steering
Port	Turing Port
Brake	ECE standards, dual-circuit pneumatic, drum braking, Automatically air-cut brake
Gas cylinder	(80X4)320L
Tyre	8.25-20(6PCS)
Motor	120Ah×2//55A 28V
Body
Frame Structure	Semi-Monocoque
Interior Trim	Pvc Roof Board ,side wall board is fibre Board., Yellow spray roller spend handrails
Door & Pump	Front single,Rear double pneumatic folding passenger door
Window and wind screen	Fiber wind screen, glude side window, and is aluminum alloy sliding window.
Rearview system	Manual rabbit type rear mirror, inner mirror.
A/C	18000kcal/h top fixed.
Heating/defrost system	Water-heating defrost
Auto Video system	MP3
Lamp	Front & rear combination lamp, Luxury Roof light
Rain wiper	Opposite wiper with detergent.
Seats	Plastic city bus seat, standard16+1 : adjustable driver seat
Floor leather	China floor
Lacquer	Chinese solid Lacquer
Others	Extinguisher, (4Kg×1), froth rail ,Half driver sun-visor, 4 Safety hammers, Turn tilting iron doors, Air filter access door, Front / rear light Board, Electric Clock.
